Vacuum Diagrams - 2.5L Engine: Introduction

This article contains underhood views or schematics of vacuum hose routing. Use these vacuum diagrams during the visual inspection in appropriate BASIC TESTING article. This will assist in identifying improperly routed vacuum hoses, which may cause driveability and/or computer-indicated malfunctions.

NOTE: References to California models apply to California emission vehicles, which may be verified by underhood Emission Control label. California emissions may be available in other states.

NOTE: Vacuum diagrams for applications not shown were not available from manufacturer.

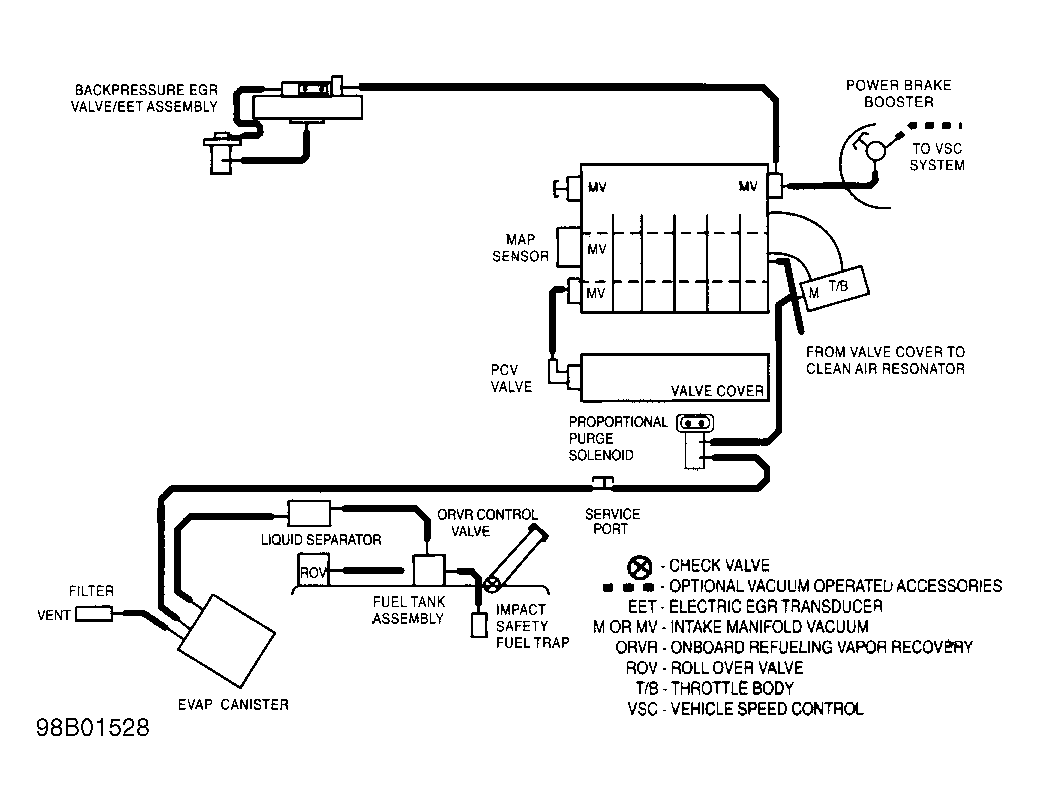

Fig 1: Vacuum Hose Diagram (California)

Courtesy of CHRYSLER CORP.

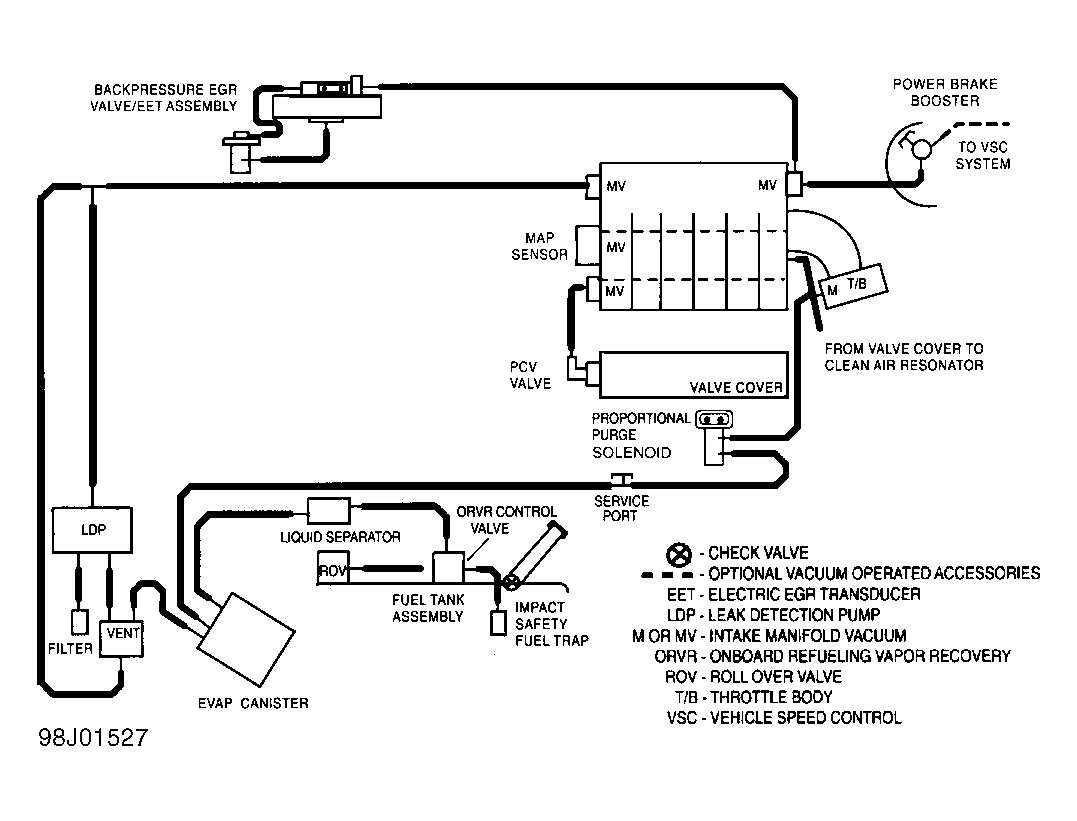

Fig 2: Vacuum Hose Diagram (Except California)

Courtesy of CHRYSLER CORP.
