Power Distribution Center

A Power Distribution Center (PDC) is located in the engine compartment. This center contains fuses and relays for circuits that operate only under the hood. A label which identifies these components is located on the underside of the cover. See Fig 1 .

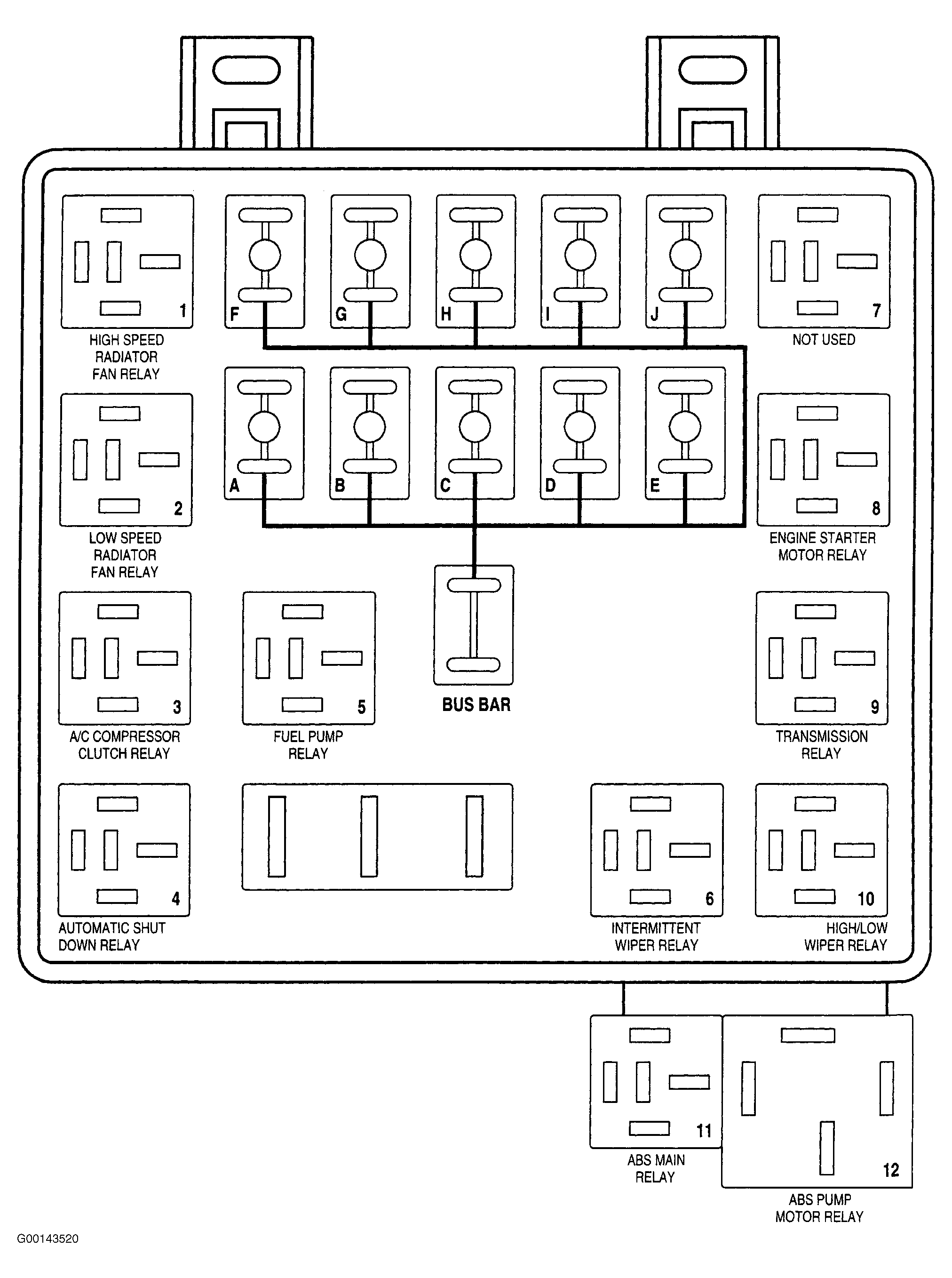

Fig 1: Locating Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.

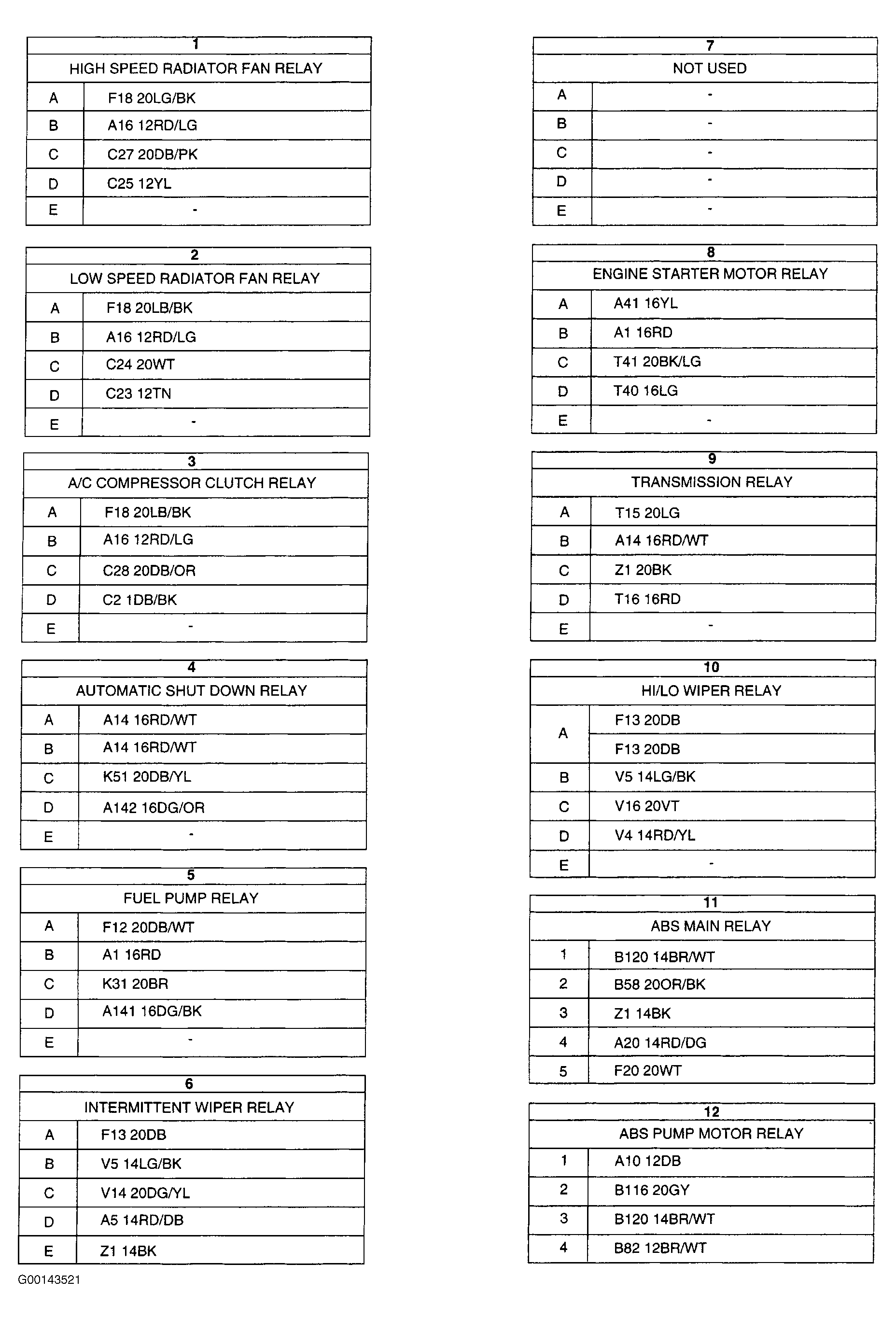

Fig 2: Identifying Power Distribution Center Relay Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Relay Terminals

Courtesy of CHRYSLER CORP.
