Section 33 (A/C-Heater System - Manual): Operation: Actuators: Notes
WARNING: This page is about a different car, the 1995 Eagle Vision, 1995 Dodge Intrepid, 1995 Chrysler New Yorker, 1995 Chrysler LHS, and 1995 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.

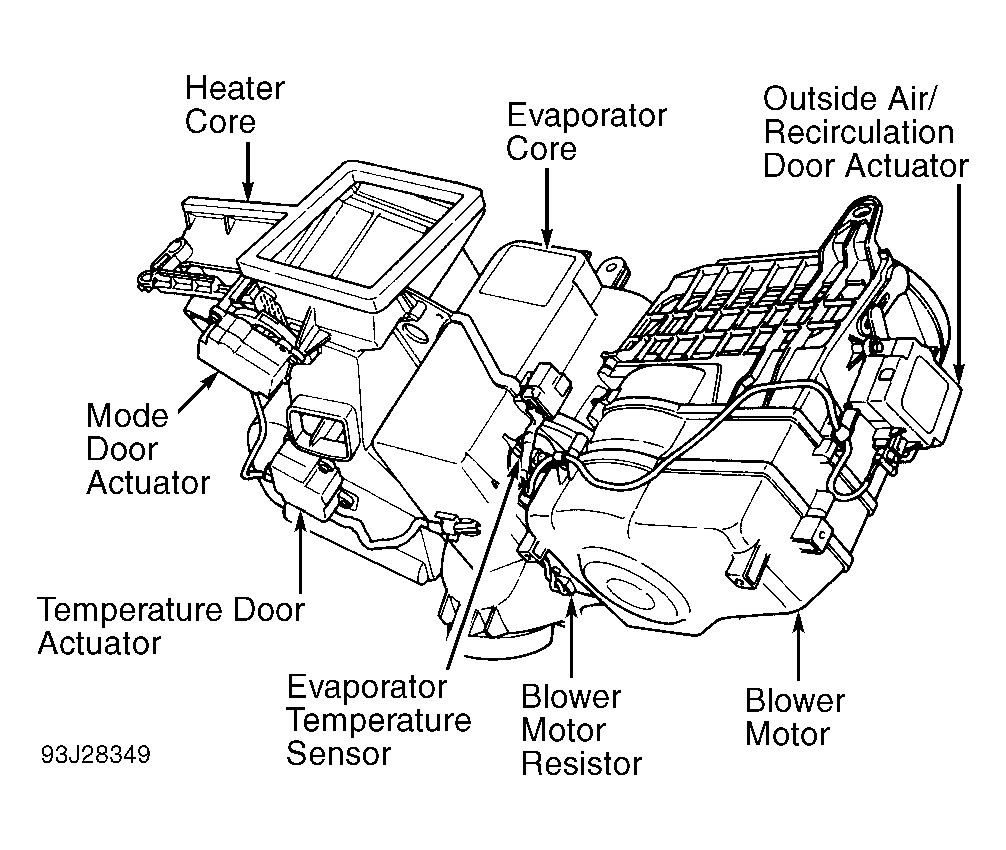

Actuators are electric motors which mechanically position air control doors (outside/recirculated air, mode and temperature doors). Drive signals from manual A/C-heater control panel computer will activate actuators. Door actuators are not serviceable and must be replaced if defective. See Figure.
