Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Air Bag Control Module | Under floor console, behind transmission selector. |
| Body Control Module | On junction block, under left side of dash. |
| Combined Rear Lighting Module | Left wheelwell. |
| Controller Anti-Lock Brake | On right front inner fender. |
| Daytime Running Lamp Module | On junction block, under left side of dash. |
| Fuel Pump Module | In fuel tank. |

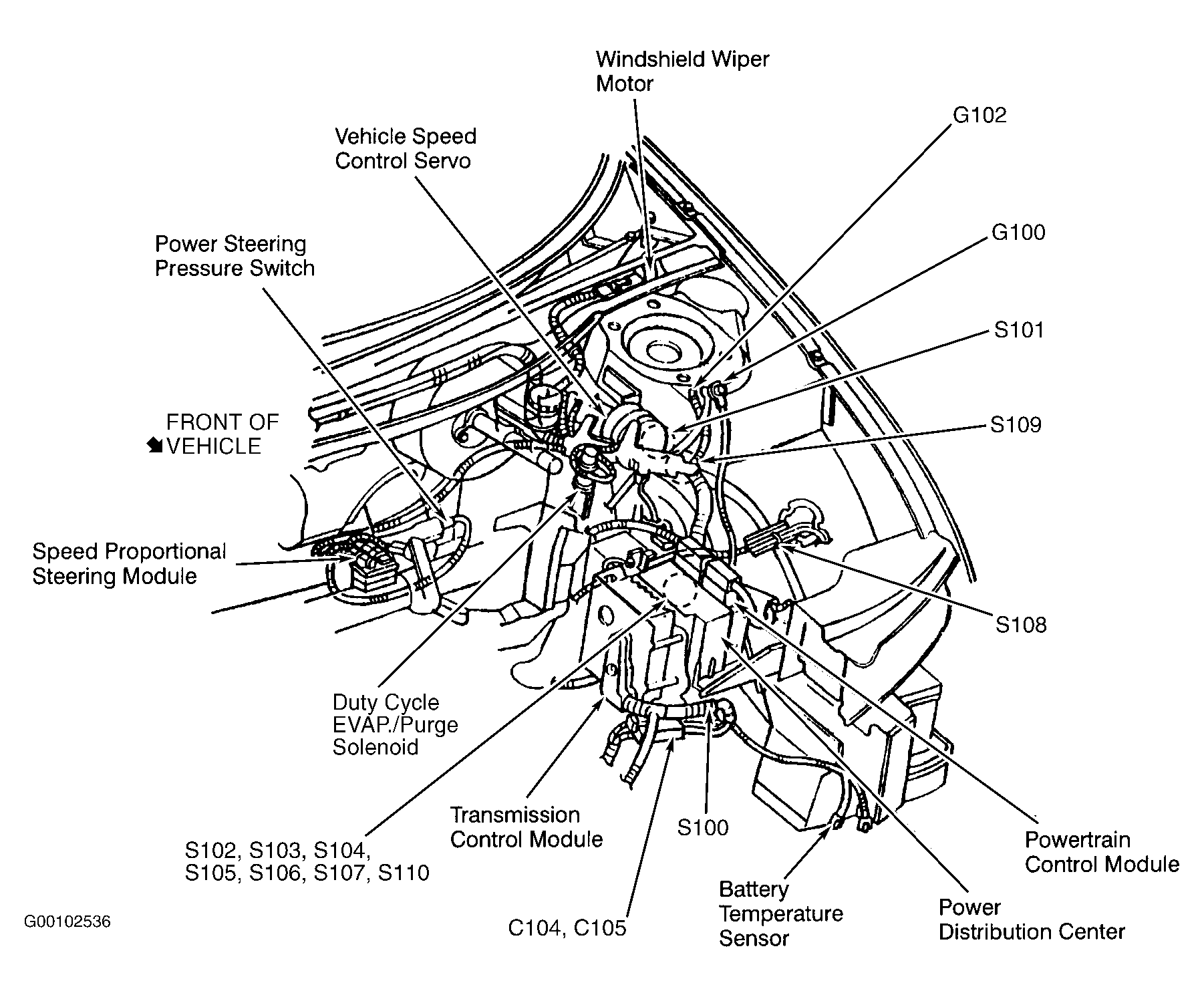

| Powertrain Control Module | On left front inner fender. See Figure . |
| Seat Belt Control Module | Rear of console. |
| Speed Proportional Steering Module | On rack at center of dash panel. See Figure . |
| Transmission Control Module | On left front inner fender. See Figure . |
| Window Timer Module | In left door. |
