Rear Suspension: Description

Rear suspension uses a MacPherson strut independent design. See Fig 1. Each side consists of a strut assembly, 2 parallel control arms, trailing arm, spindle and strut-mounted stabilizer bar.

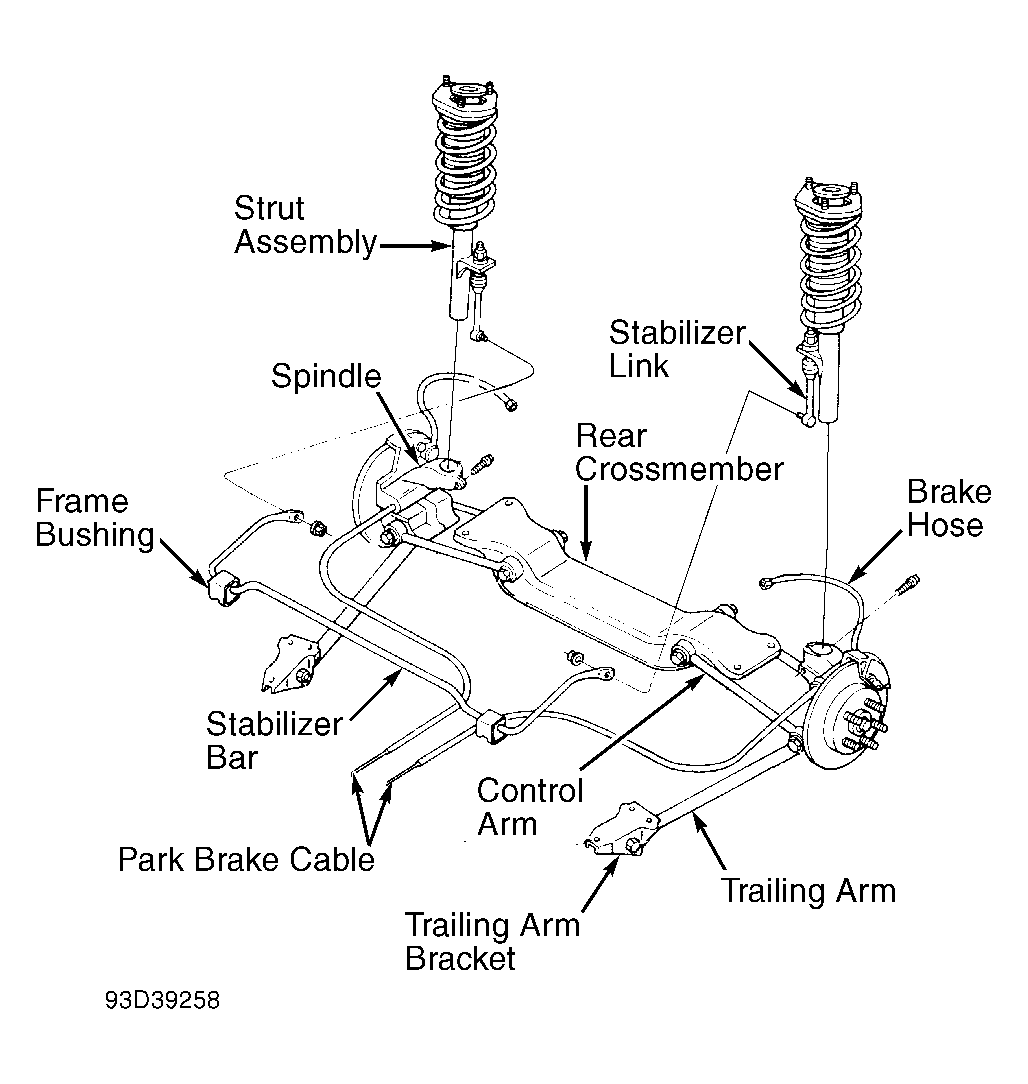

Fig 1: Identifying Rear Suspension Components

Courtesy of CHRYSLER CORP.
