EGR Diagnostic Chart
>>
Notes
EGR Diagnostic Chart: Notes
NOTE:
The EGR solenoid/transducer assembly may be referred to as Electric EGR Transducer (EET) in diagnostic charts.

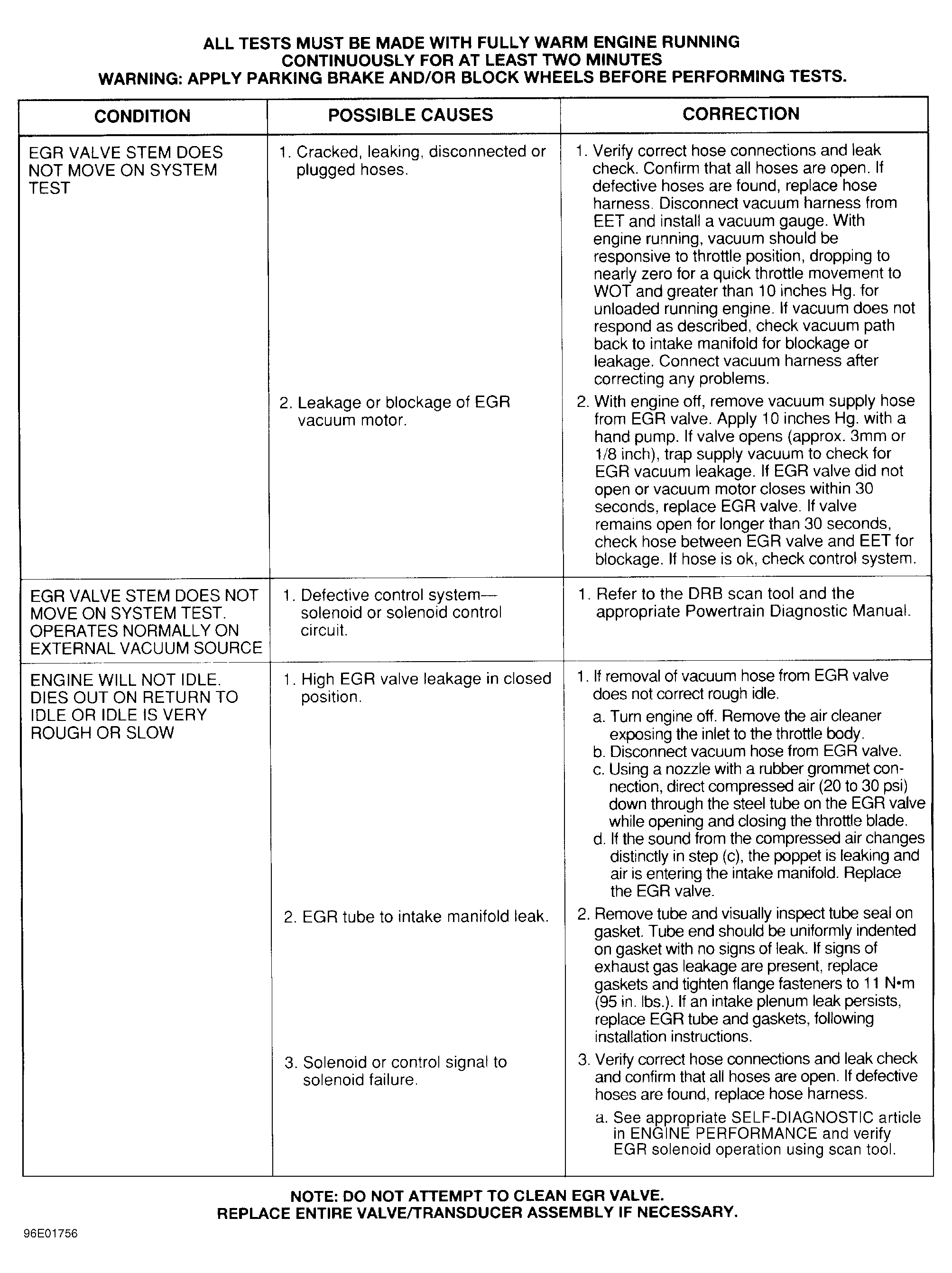

Fig 1: EGR Diagnostic Chart
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
