Electrical Module Locations

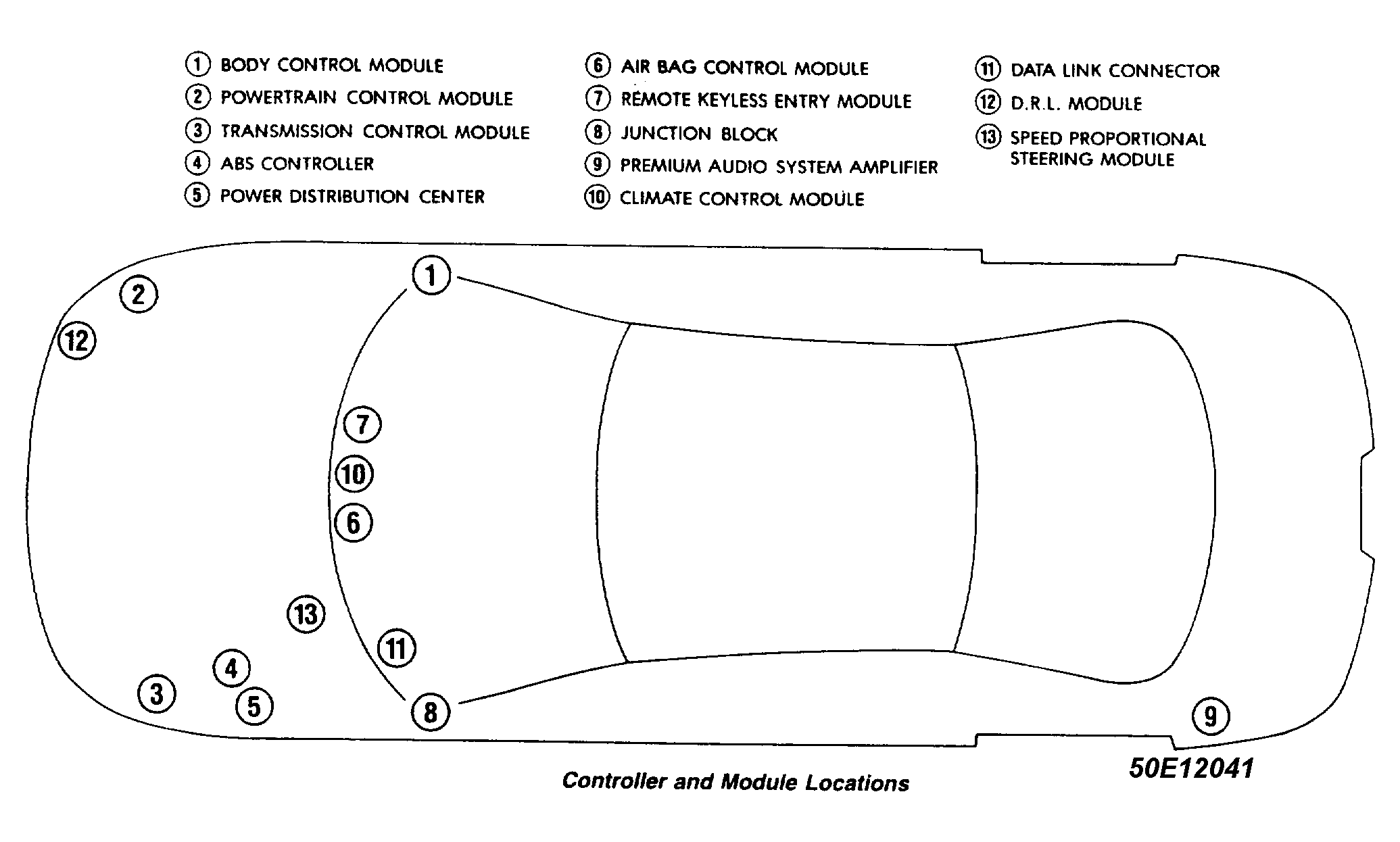

Fig 1: Electrical Controller & Module Locations (Typical)
G50E12041Courtesy of CHRYSLER CORP.
