Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
A/C Clutch Relay	Fig 1
Auto Shutdown (ASD) Relay	Fig 2 & Fig 3
Camshaft Position Sensor	Fig 4
Crankshaft Position Sensor	Fig 5
Exhaust Gas Recirculation (EGR) Solenoid	Fig 6
Engine Coolant Temperature (ECT) Sensor	Fig 7
Evaporative Purge Solenoid	Fig 8
Fuel Pump	Fig 9
Fuel Pump Relay	Fig 10 & Fig 11
Idle Air Control (IAC) Motor	Fig 12
Ignition Coil	Fig 13
Injector Connector	Fig 14 & Fig 15
Manifold Absolute Pressure (MAP) Sensor	Fig 16
02S	Fig 17
Powertrain Control Module (PCM)	Fig 22
Radiator Fan Relay	Fig 18 & Fig 19
Throttle Position (TP) Sensor	Fig 20
Transmission Temperature Sensor	Fig 21

A/C CLUTCH RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Red/Light Blue	Fused Battery Voltage
C	Dark Blue/Orange	Relay Control
D	Dark Blue/Black	Relay Output

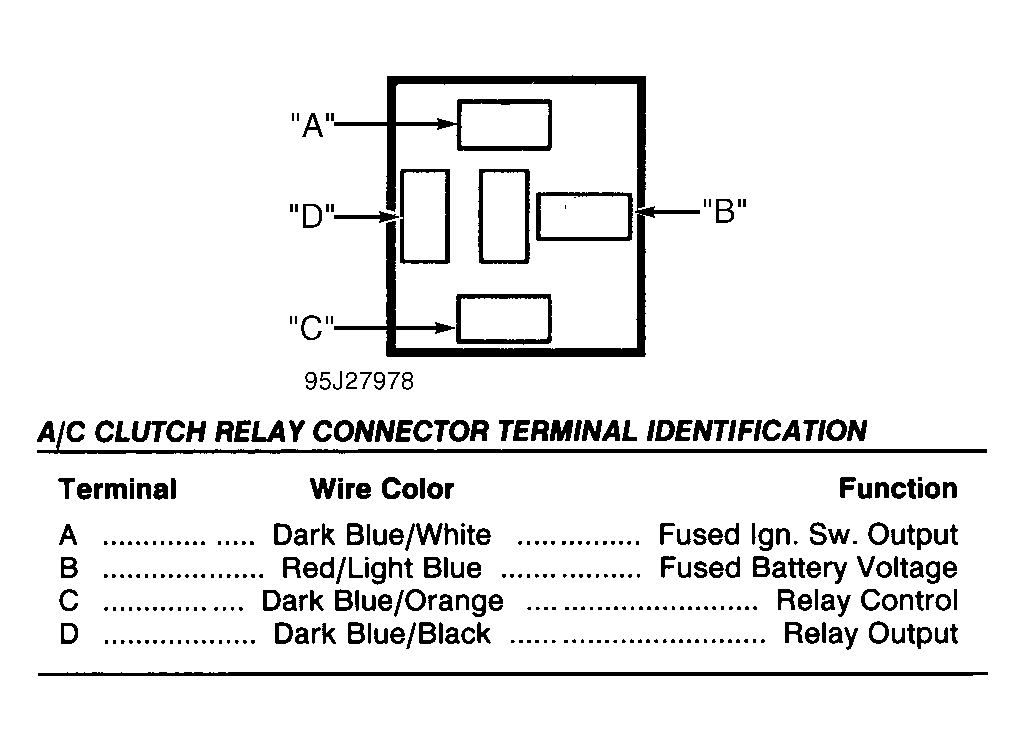

Fig 1: Identifying A/C Clutch Relay Connector Terminals (All Models)

Courtesy of CHRYSLER CORP.

ASD RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Red/White	Fused Battery Voltage
C	Dark Blue/Yellow	Relay Control
D	Dark Green/Orange	Relay Output

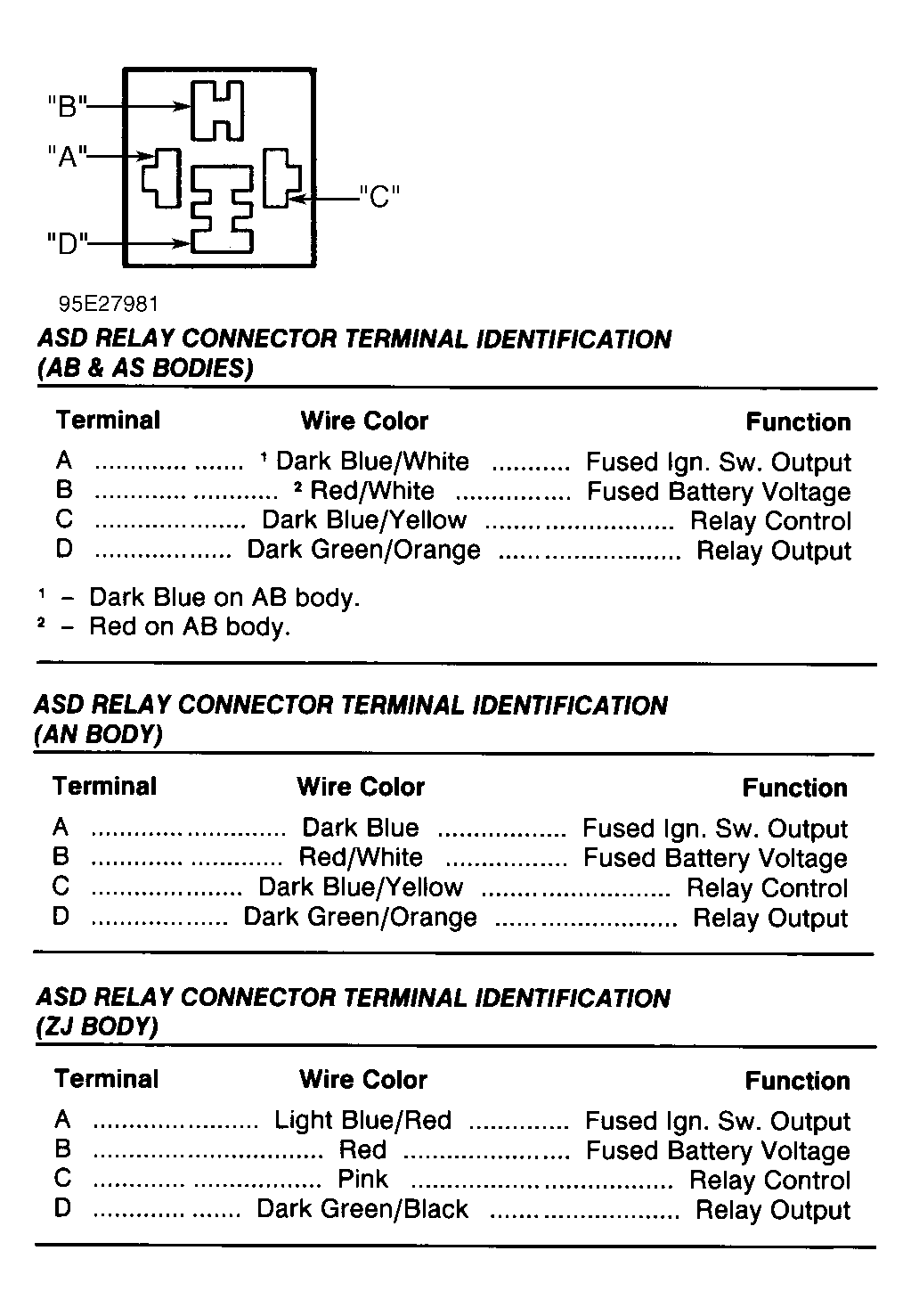

Fig 2: ASD Relay Connector Terminal ID - 1 Of 2 (All Models)

Courtesy of CHRYSLER CORP.

Fig 3: ASD Relay Connector Terminal ID - 2 Of 2 (All Models)

Courtesy of CHRYSLER CORP.

CAMSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Tan/Yellow	Signal
2	Black/Light Blue	Ground
3	Orange	8-Volt Supply

Fig 4: Camshaft Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray	Signal
2	Black/Light Blue	Ground
3	Orange	8-Volt Supply

Fig 5: Crankshaft Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

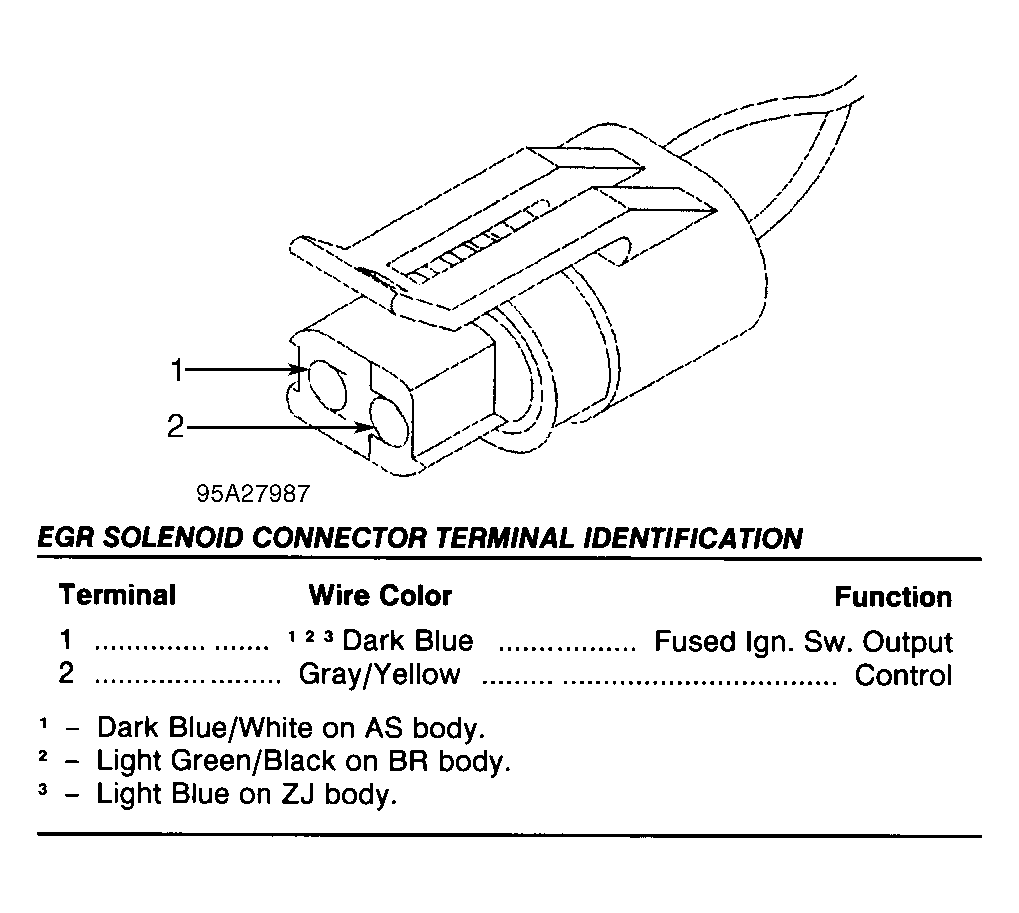

EGR SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Blue/White	Fused Ign. Sw. Output
2	Gray/Yellow	Control

Fig 6: Identifying EGR Solenoid Connector Terminals (All Models)

Courtesy of CHRYSLER CORP.

ECT SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Tan/Black	Signal
2	Black/Light Blue	Ground

Fig 7: ECT Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

EVAPORATIVE PURGE SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Dark Blue/White	Fused Ign. Switch Output
2	Pink/Black	Solenoid Control

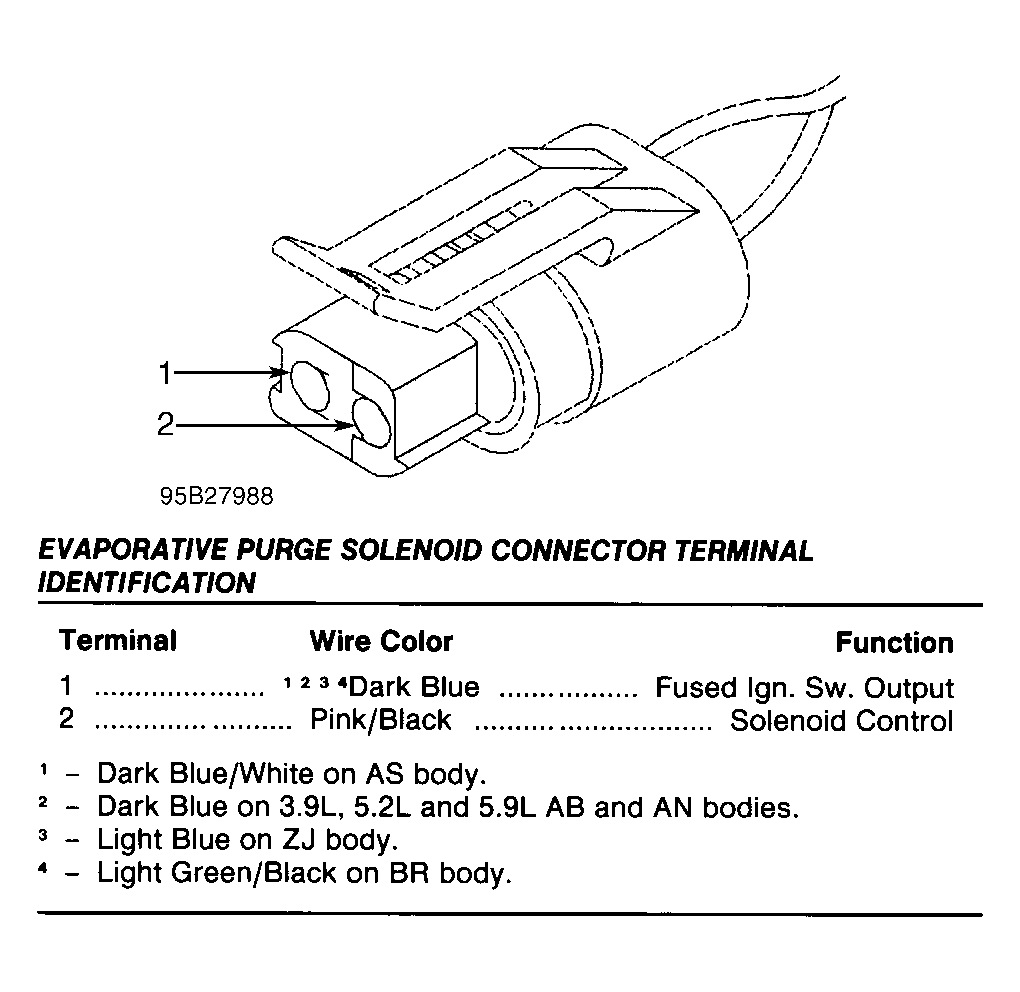

Fig 8: Evaporative Purge Solenoid Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

FUEL PUMP CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Green/Black	Pump Relay Output
2	Dark Blue	Fuel Level Sensor Signal
3	Black	Ground
4	Black	Ground

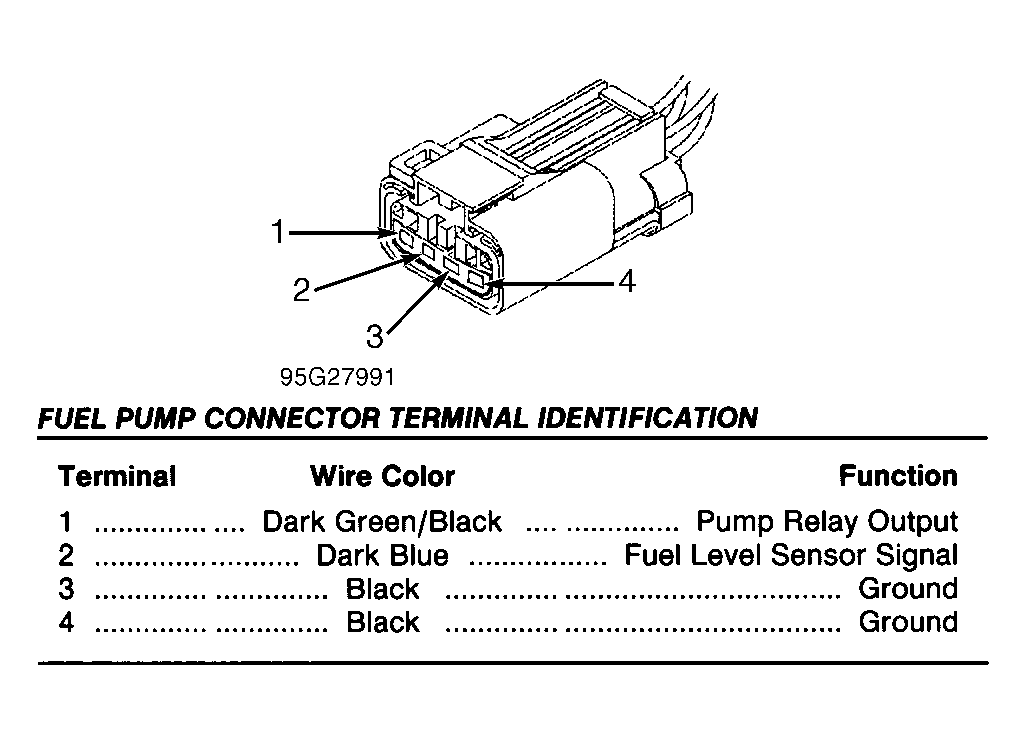

Fig 9: Identifying Fuel Pump Connector Terminals (All Models)

Courtesy of CHRYSLER CORP.

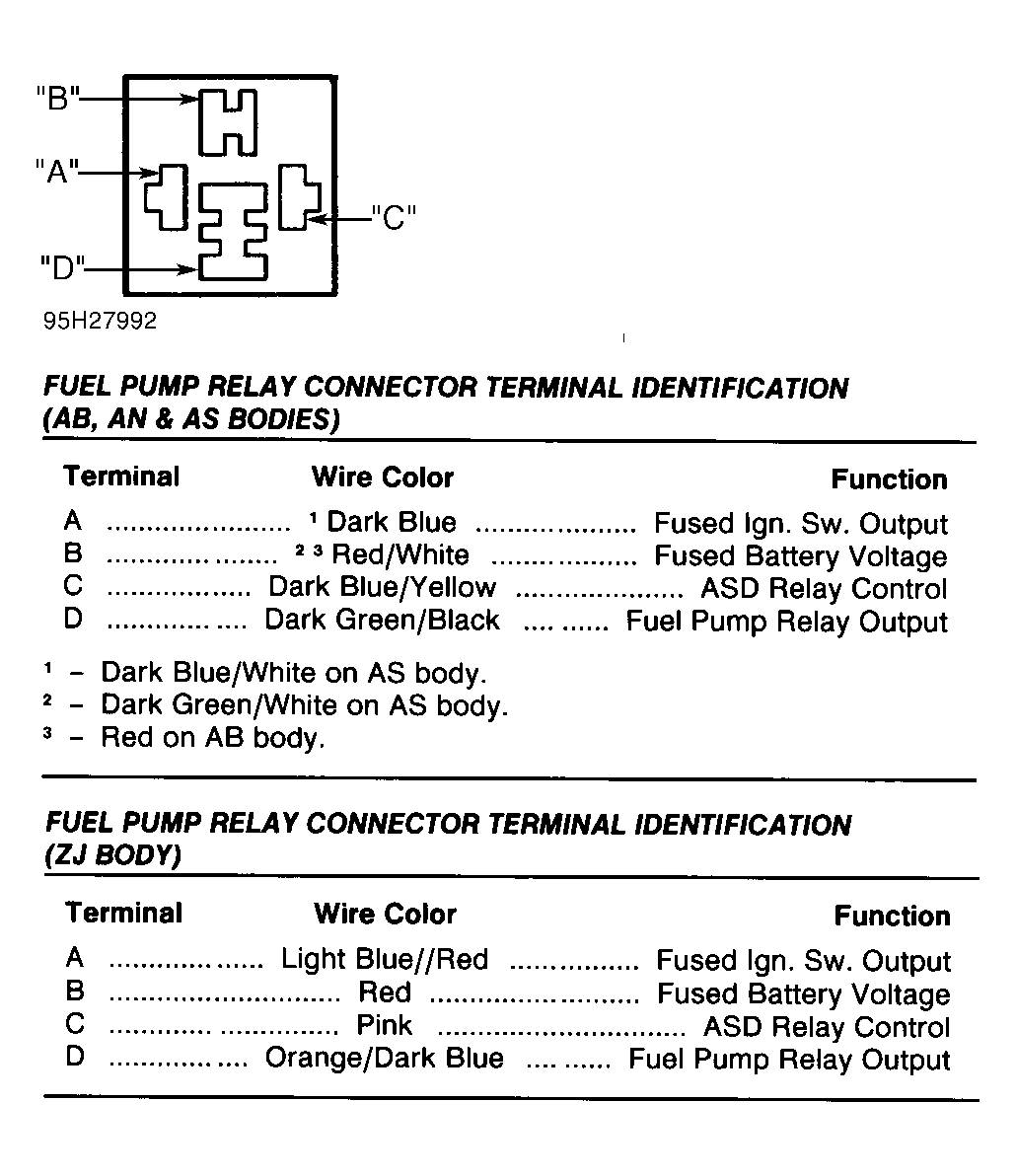

FUEL PUMP RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Dark Green/White	Fused Battery Voltage
C	Dark Blue/Yellow	ASD Relay Control
D	Dark Green/Black	Fuel Pump Relay Output

Fig 10: Fuel Pump Relay Connector Terminal ID - 1 Of 2 (All Models)

Courtesy of CHRYSLER CORP.

Fig 11: Fuel Pump Relay Connector Terminal ID - 2 Of 2 (All Models)

Courtesy of CHRYSLER CORP.

IAC MOTOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Red	IAC Driver No. 3
2	Yellow/Black	IAC Driver No. 2
3	Brown/White	IAC Driver No. 1
4	Violet/Black	IAC Driver No. 4

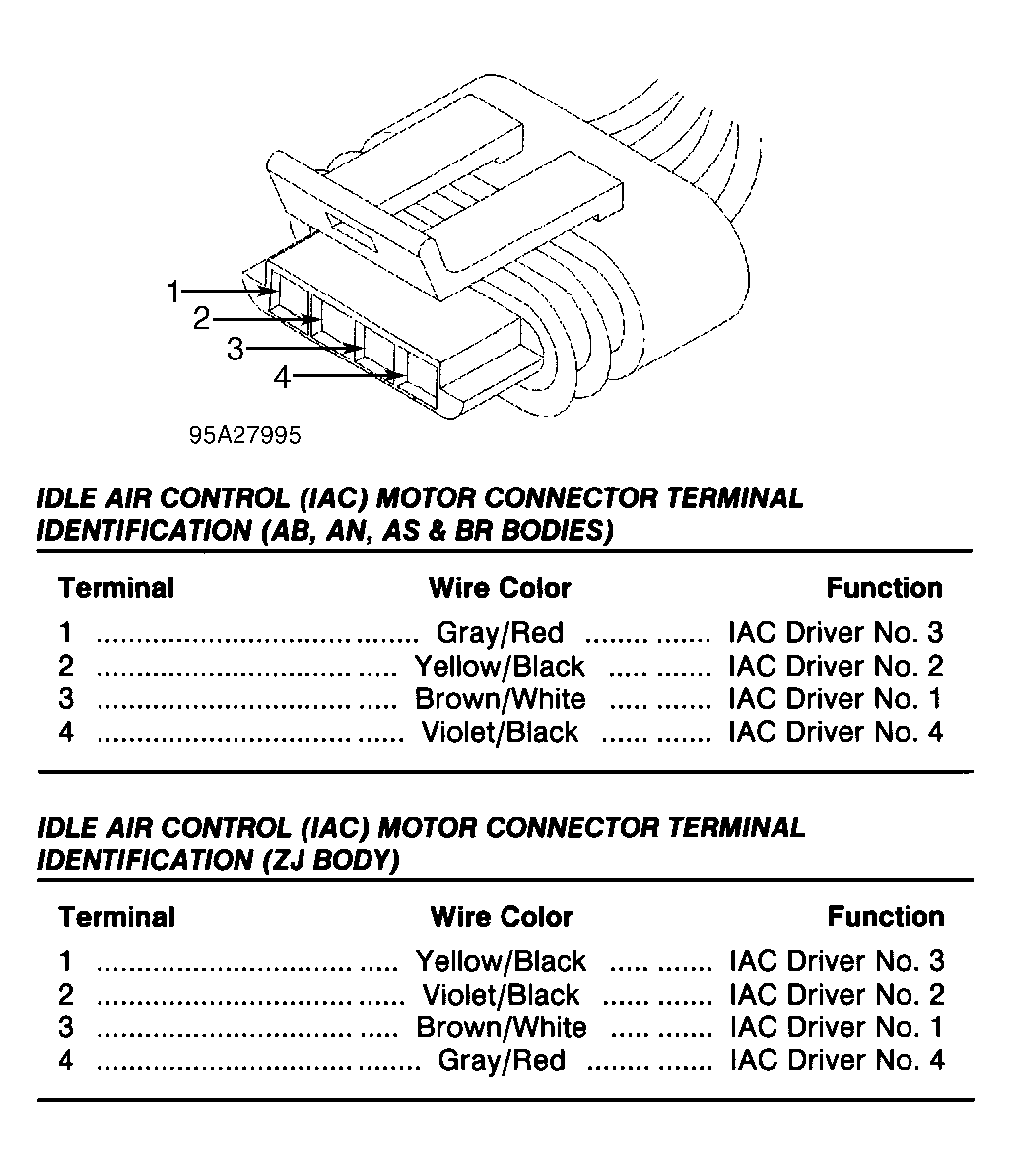

Fig 12: IAC Motor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

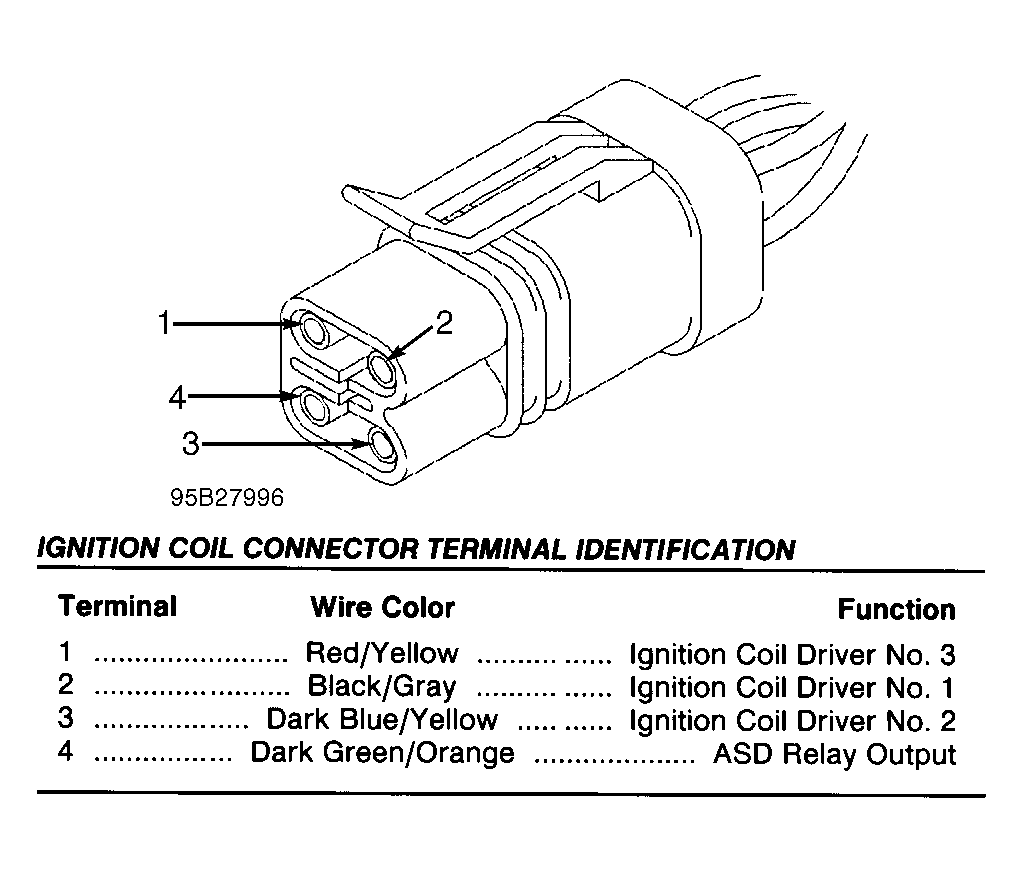

IGNITION COIL CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Red/Yellow	Ignition Coil Driver No. 3
2	Black/Gray	Ignition Coil Driver No. 1
3	Dark Blue/Yellow	Ignition Coil Driver No. 2
4	Dark Green/Orange	ASD Relay Output

Fig 13: Identifying Ignition Coil Connector Terminals (All Models)

Courtesy of CHRYSLER CORP.

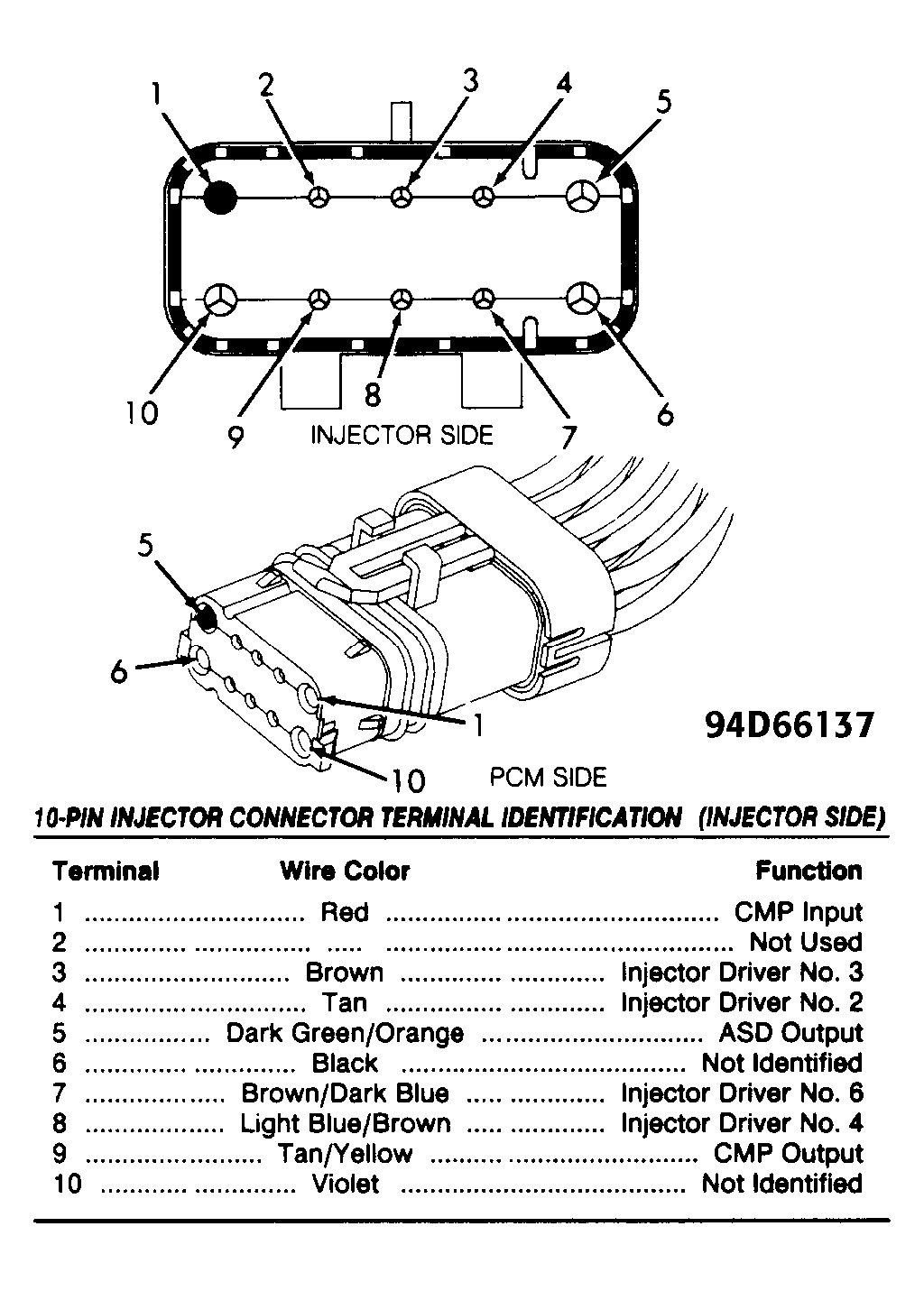

10-PIN INJECTOR CONNECTOR TERMINAL ID (INJECTOR SIDE)

Terminal	Wire Color	Function
1	Red	CMP Input
2	-----	Not Used
3	Brown	Injector Driver No. 3
4	Tan	Injector Driver No. 2
5	Dark Green/Orange	ASD Output
6	Black	Not Identified
7	Brown/Dark Blue	Injector Driver No. 6
8	Light Blue/Brown	Injector Driver No. 4
9	Tan/Yellow	CMP Output
10	Violet	Not Identified

Fig 14: 10-Pin Injector Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

6-PIN INJECTOR CONNECTOR TERMINAL ID (INJECTOR SIDE)

Terminal	Wire Color	Function
1	Dark Blue	Injector Driver No. 1
2	Tan/Black	ECT Output
3	Dark Blue/Yellow	Ignition Coil
4	Gray	Injector Driver No. 5
5	Black/Gray	Ignition Coil
6	Red/Yellow	Ignition Coil

Fig 15: Identifying 6-Pin Injector Connector Terminals (All Models)

Courtesy of CHRYSLER CORP.

MAP SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Dark Green/Red	Signal
3	Violet/White	5-Volt Supply

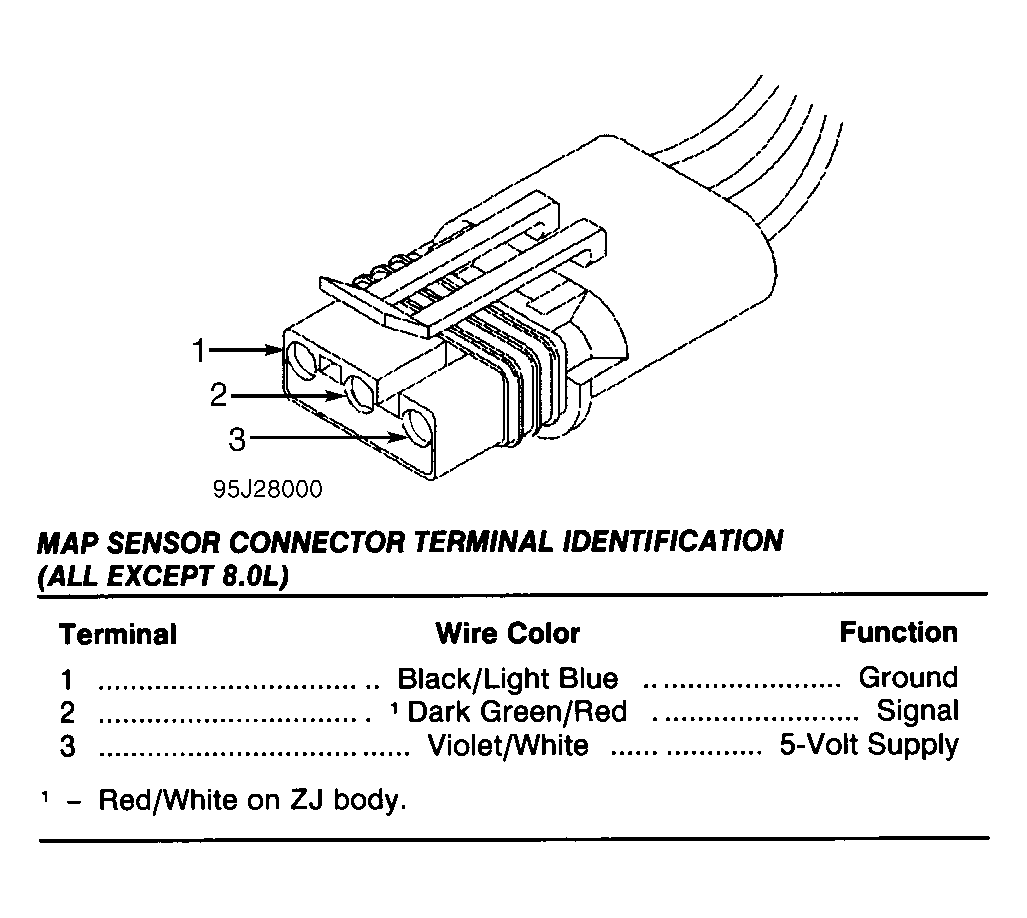

Fig 16: MAP Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

O2S CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Sensor Ground
2	Black/Dark Green	Signal
3	Black	Heater Ground
4	Dark Green/Black	ASD Relay Output

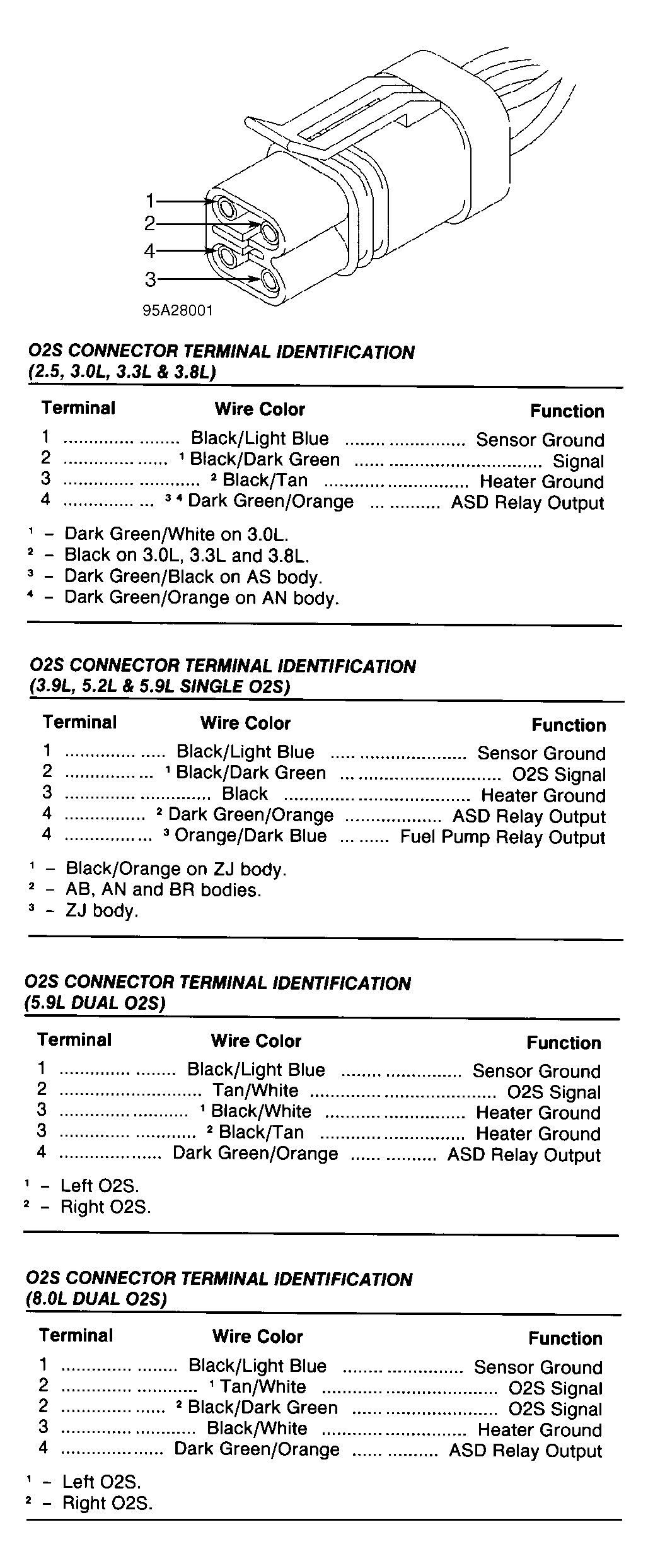

Fig 17: Identifying O2S Connector Terminals (All Models)

Courtesy of CHRYSLER CORP.

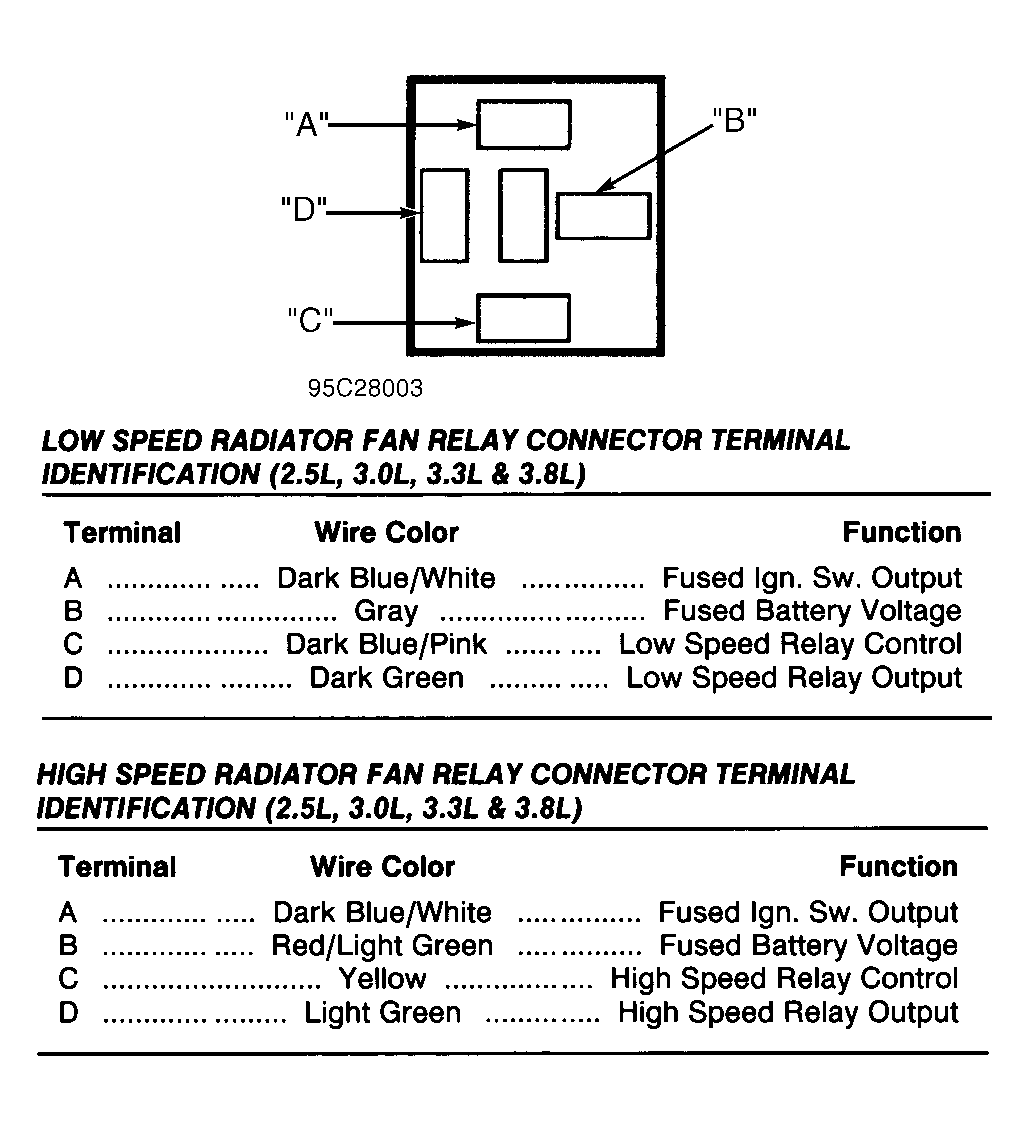

LOW SPEED RADIATOR FAN RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Gray	Fused Battery Voltage
C	Dark Blue/Pink	Low Speed Relay Control
D	Dark Green	Low Speed Relay Output

Fig 18: Low/High Speed Radiator Fan Relay Connector Term. ID (All Models)

Courtesy of CHRYSLER CORP.

HIGH SPEED RADIATOR FAN RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Red/Light Green	Fused Battery Voltage
C	Yellow	High Speed Relay Control
D	Light Green	High Speed Relay Output

Fig 19: Low/High Speed Radiator Fan Relay Connector Term. ID (All Models)

Courtesy of CHRYSLER CORP.

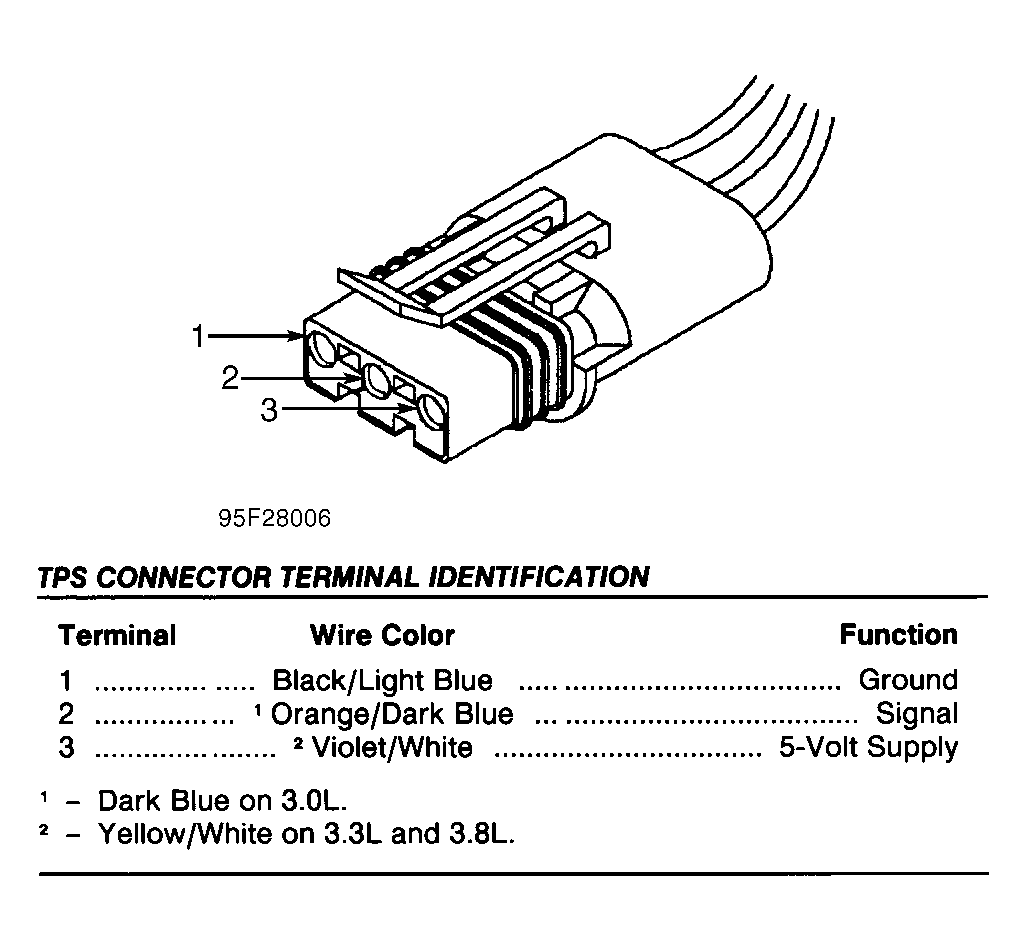

TPS CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Orange/Dark Blue	Signal
3	Yellow/White	5-Volt Supply

Fig 20: TP Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

TRANSMISSION TEMPERATURE SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Violet	Sensor Signal
2	Black/Light Blue	Ground

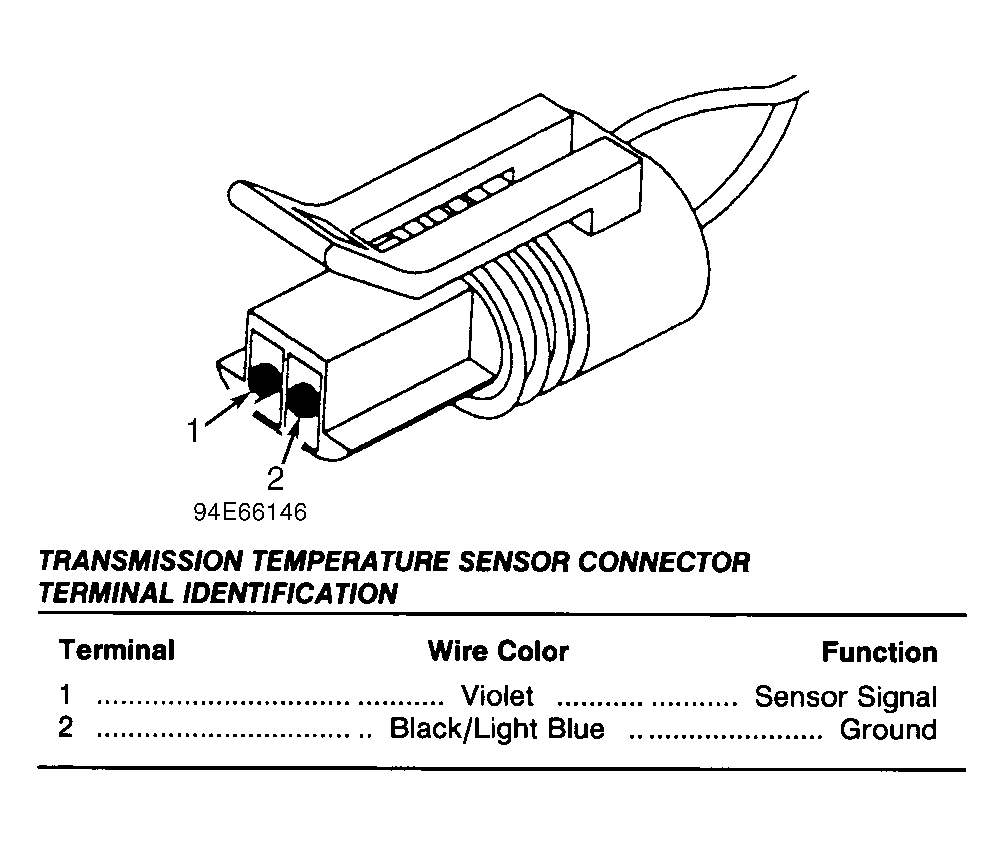

Fig 21: Transmission Temperature Sensor Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

Fig 22: PCM Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.
