Fuel Rail & Injectors: Installation

Install NEW "O" rings. Apply a small amount of engine oil to fuel system component "O" rings. DO NOT allow engine oil to enter fuel rail. To complete installation, reverse removal procedure.

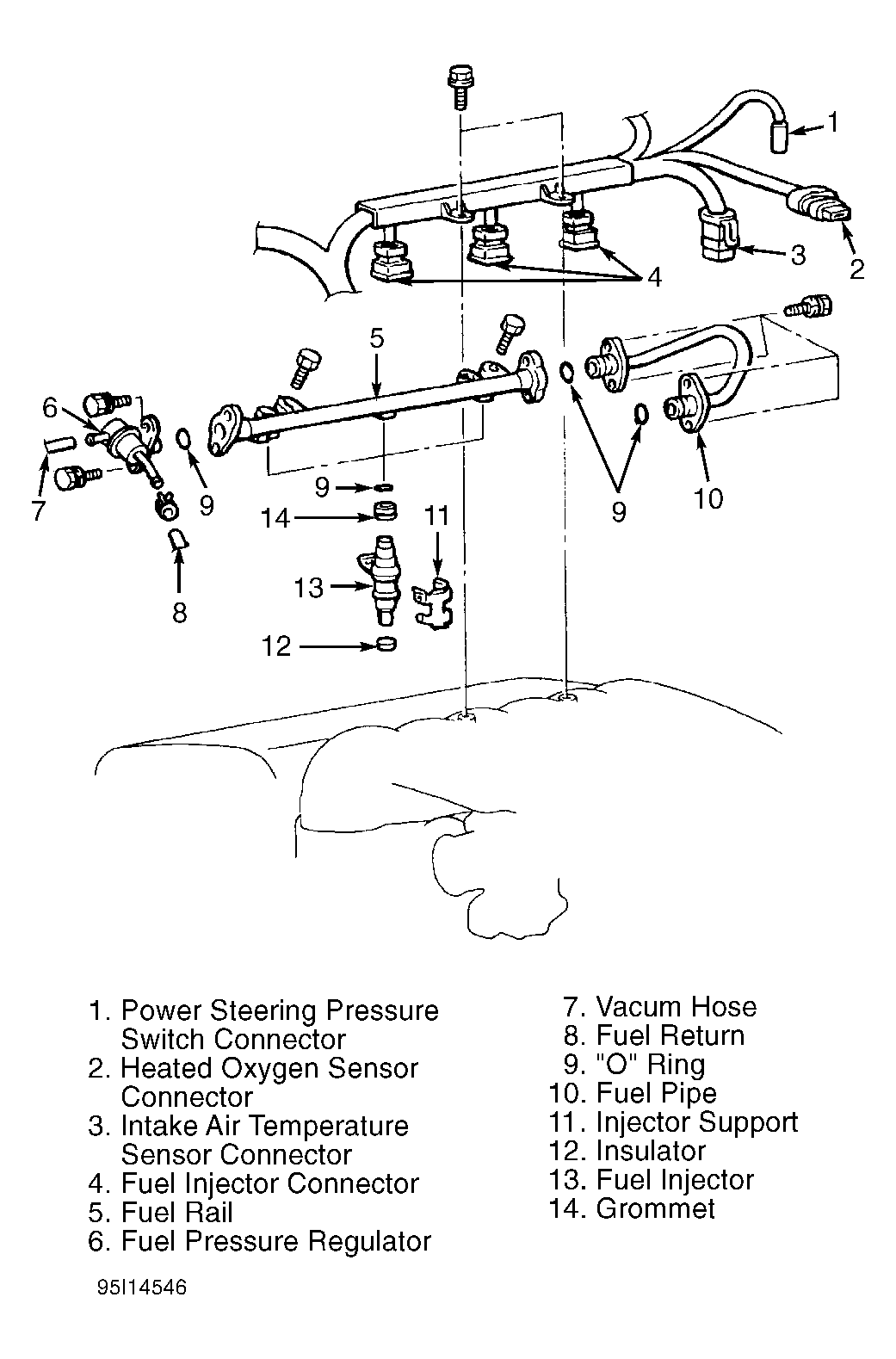

Fig 1: Front Bank Fuel Rail & Injector Components Id (Avenger & Sebring)

Courtesy of CHRYSLER CORP.

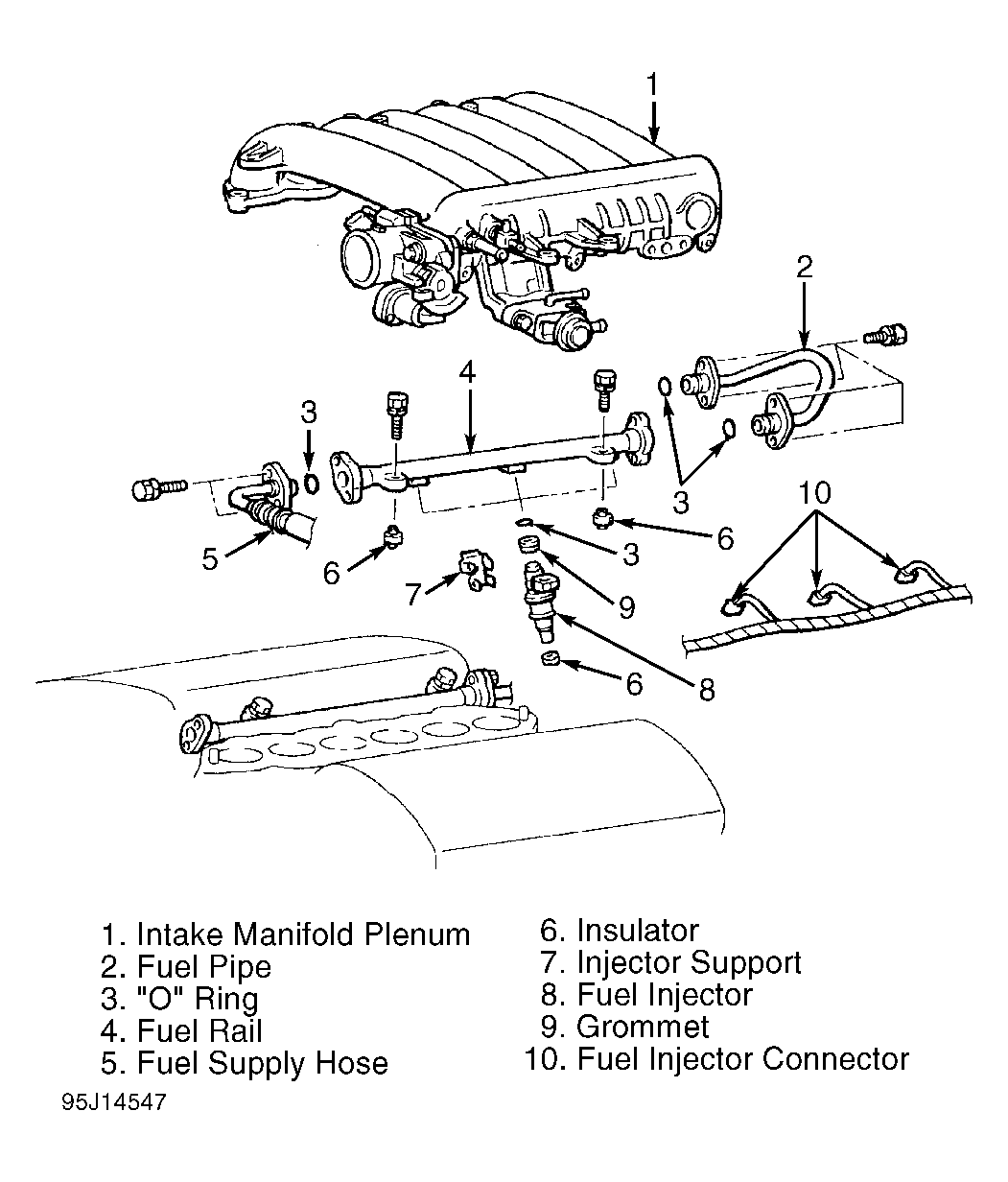

Fig 2: Rear Bank Fuel Rail & Injector Components Id (Avenger & Sebring)

Courtesy of CHRYSLER CORP.

Install NEW "O" rings. Apply a small amount of engine oil to fuel system component "O" rings. DO NOT allow engine oil to enter fuel rail. To complete installation, reverse removal procedure.

Fig 1: Fuel Rail & Injector Components Id (Avenger & Sebring)

Courtesy of CHRYSLER CORP.

Install NEW "O" rings. Apply a small amount of engine oil to fuel system component "O" rings. DO NOT allow engine oil to enter fuel rail. To complete installation, reverse removal procedure.
