Power Seat Motor Testing

  1. Disconnect each motor at the connector. See Fig 1 .
  2. Connect the terminals of each motor directly to the battery and check that the motor turns freely and each adjusting mechanism operates as specified. See Fig 2 .
  3. If there is any malfunction, replace the power seat adjuster assembly.

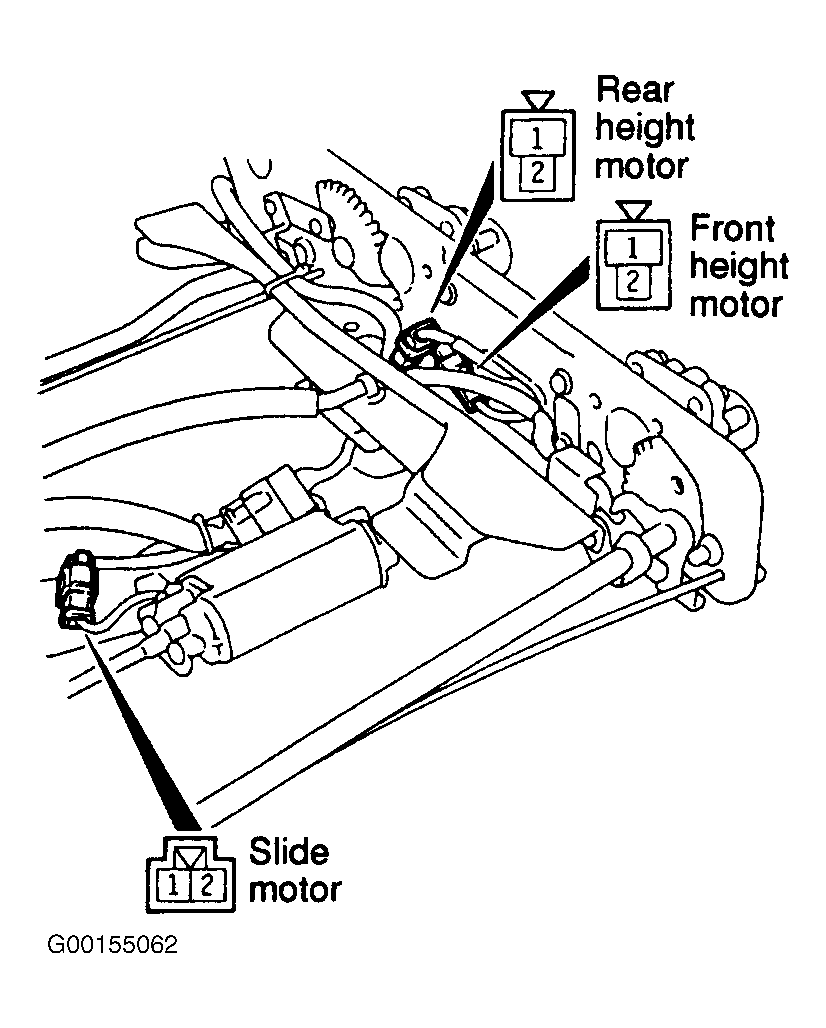

Fig 1: Disconnecting Seat Motor Connectors
G00155062Courtesy of CHRYSLER CORP.

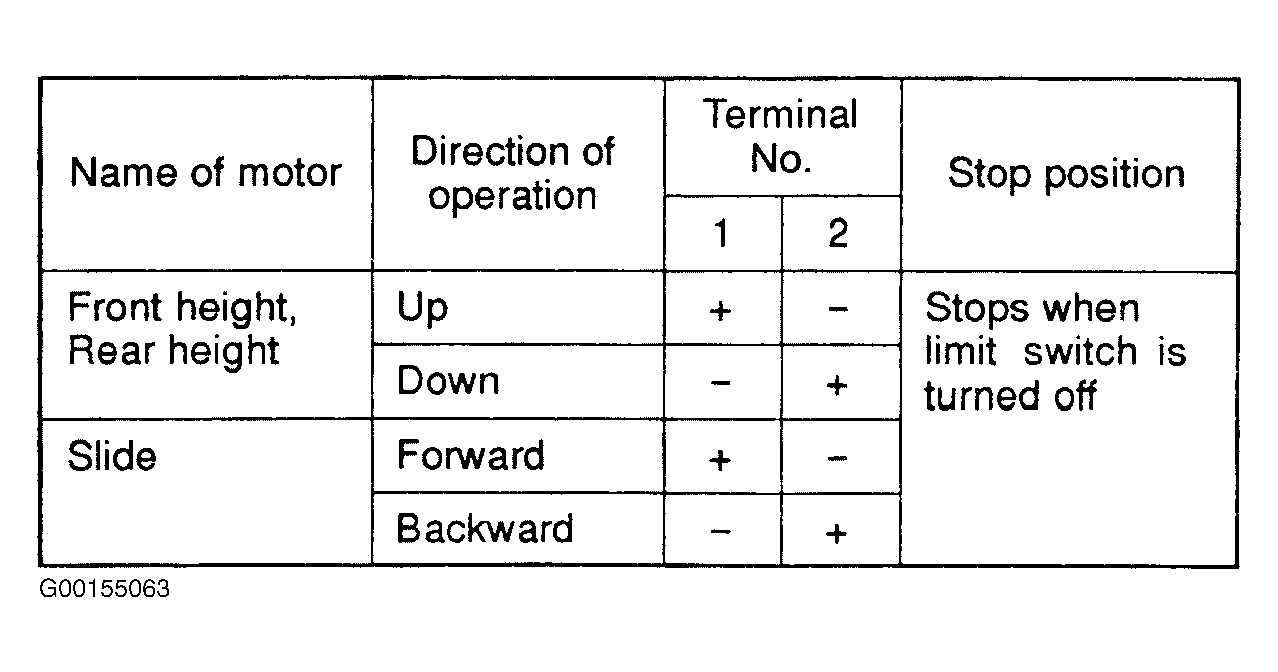

Fig 2: Testing Seat Motor Functions
G00155063Courtesy of CHRYSLER CORP.
