Test 86D: Repairing Shorted (R) Channel

NOTE: Perform TEST 86B  before proceeding. For connector terminal identification referenced from test 86D procedures, refer to illustrations. SeeFig 3 and Fig 4.

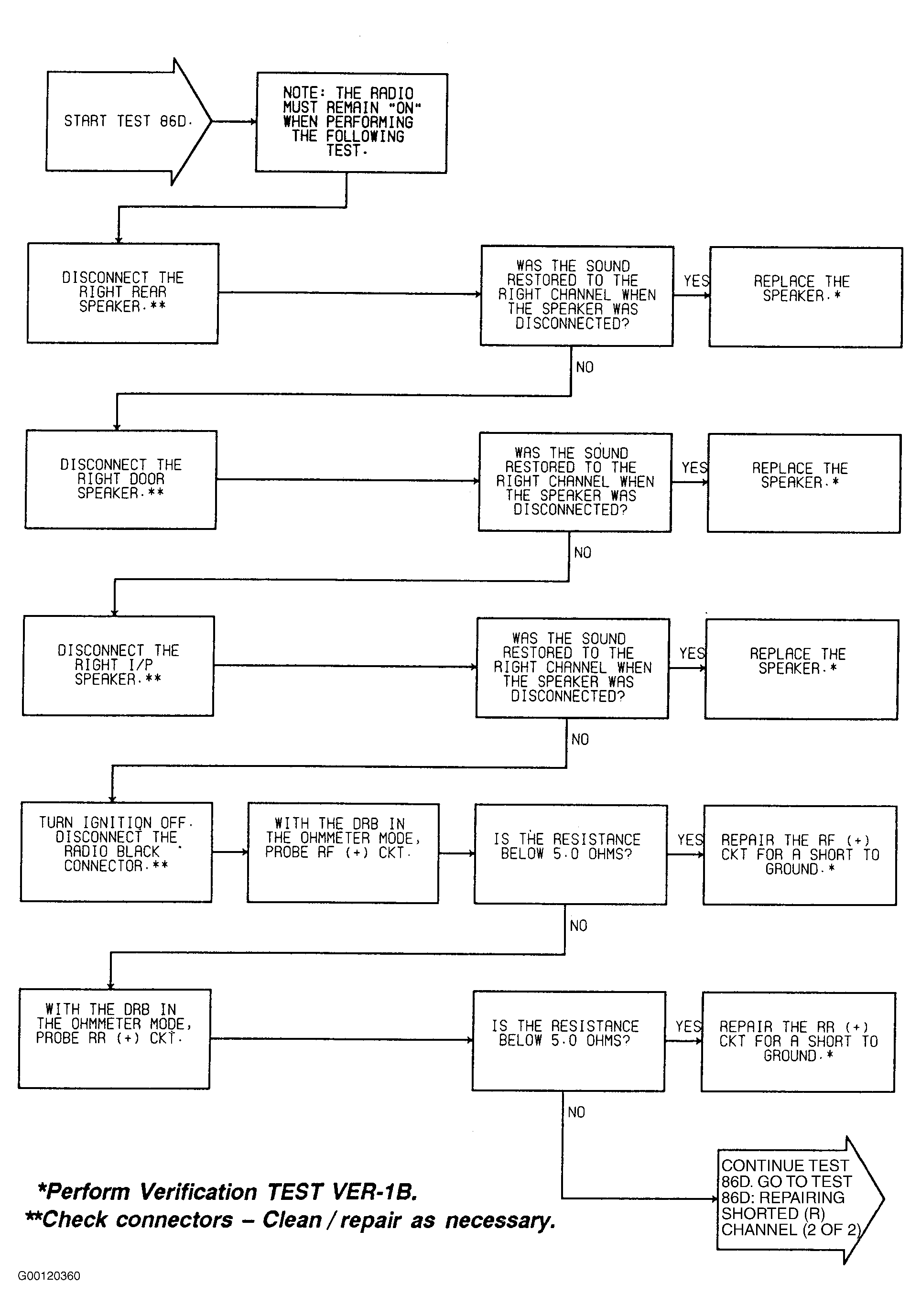

Fig 1: Test 86D: Repairing Shorted (R) Channel (1 Of 2)

Courtesy of CHRYSLER CORP.

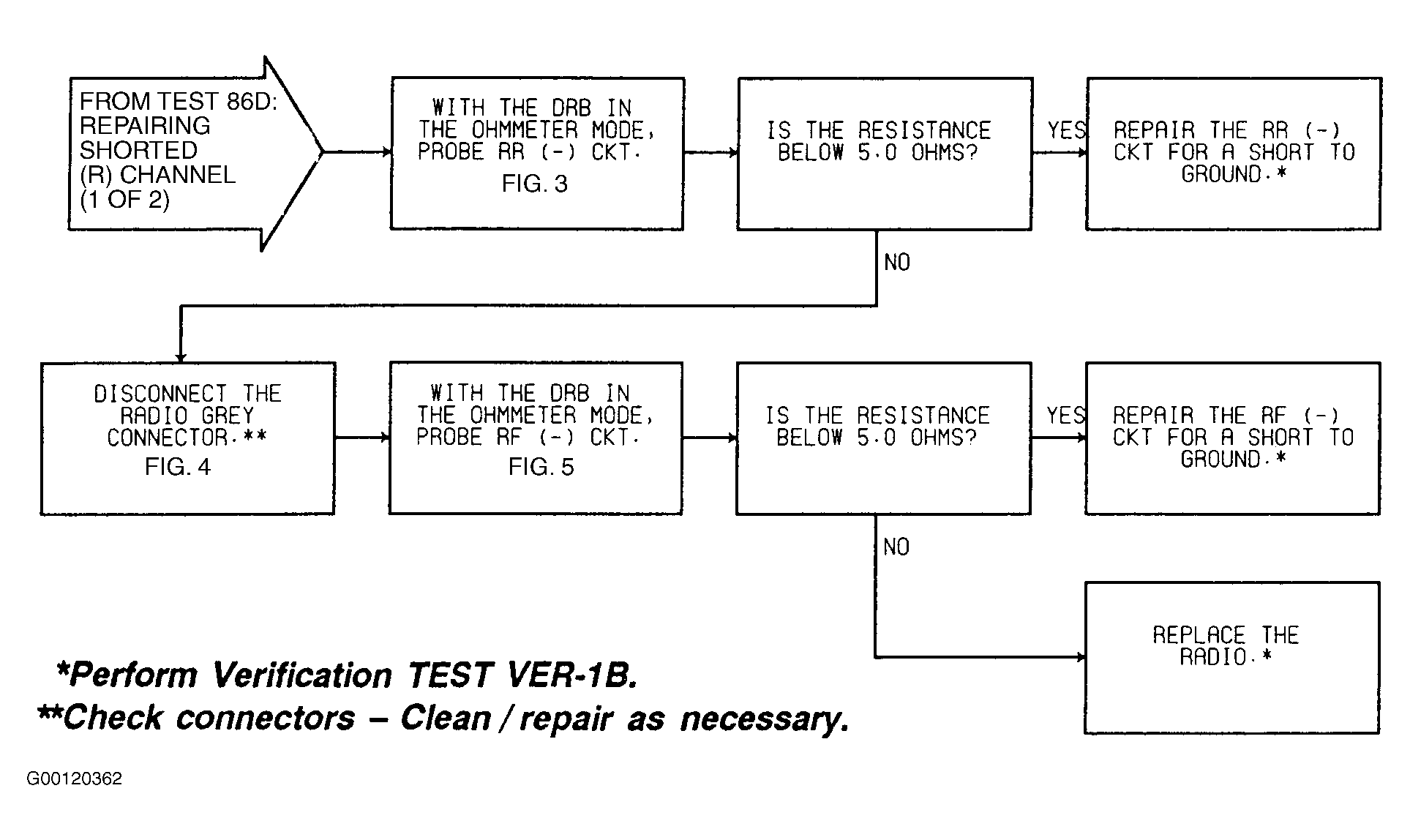

Fig 2: Test 86D: Repairing Shorted (R) Channel (2 Of 2)

Courtesy of CHRYSLER CORP.

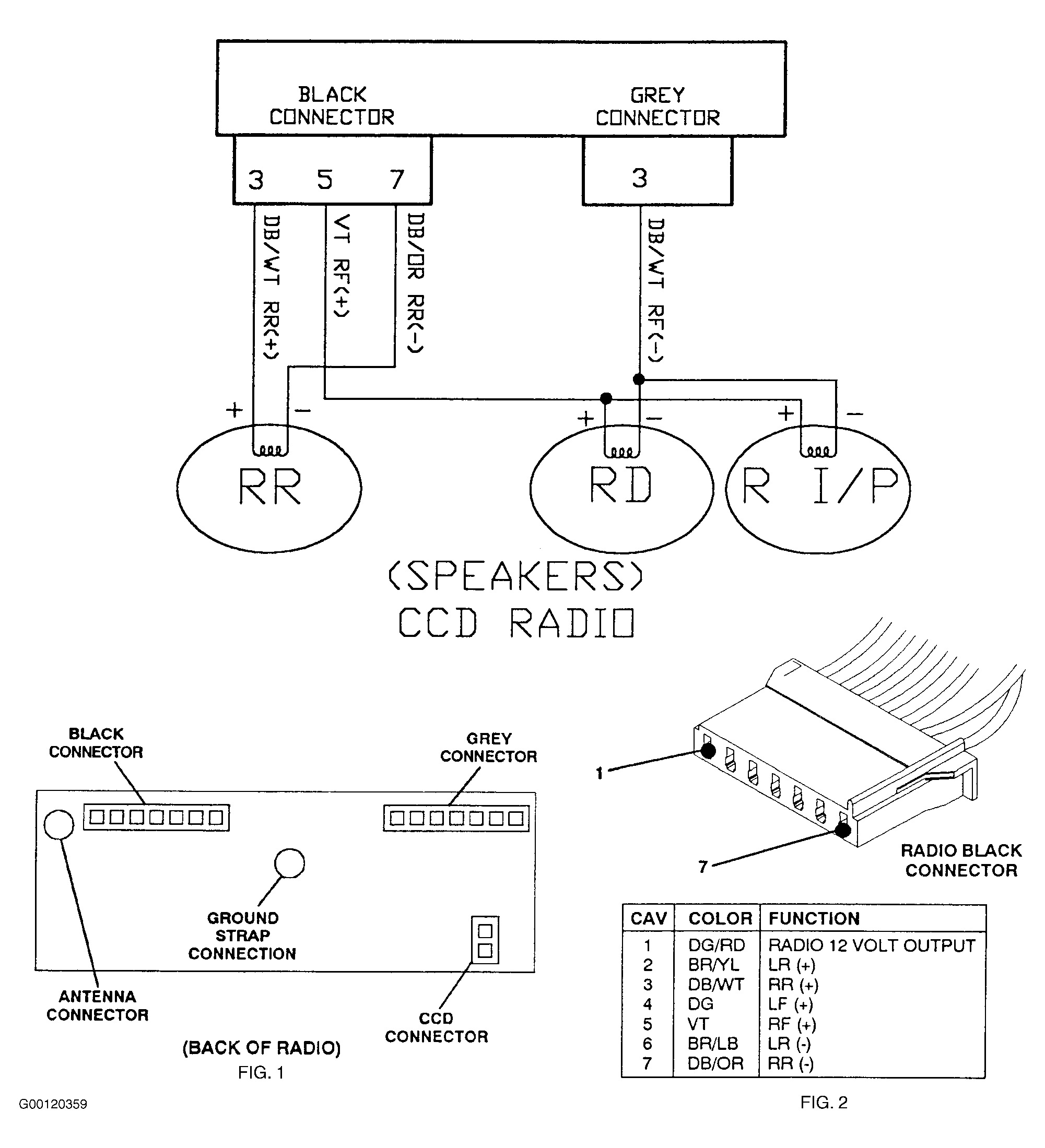

Fig 3: Test 86D: Identifying Radio Circuit & Connector Terminals (1 Of 2)

Courtesy of CHRYSLER CORP.

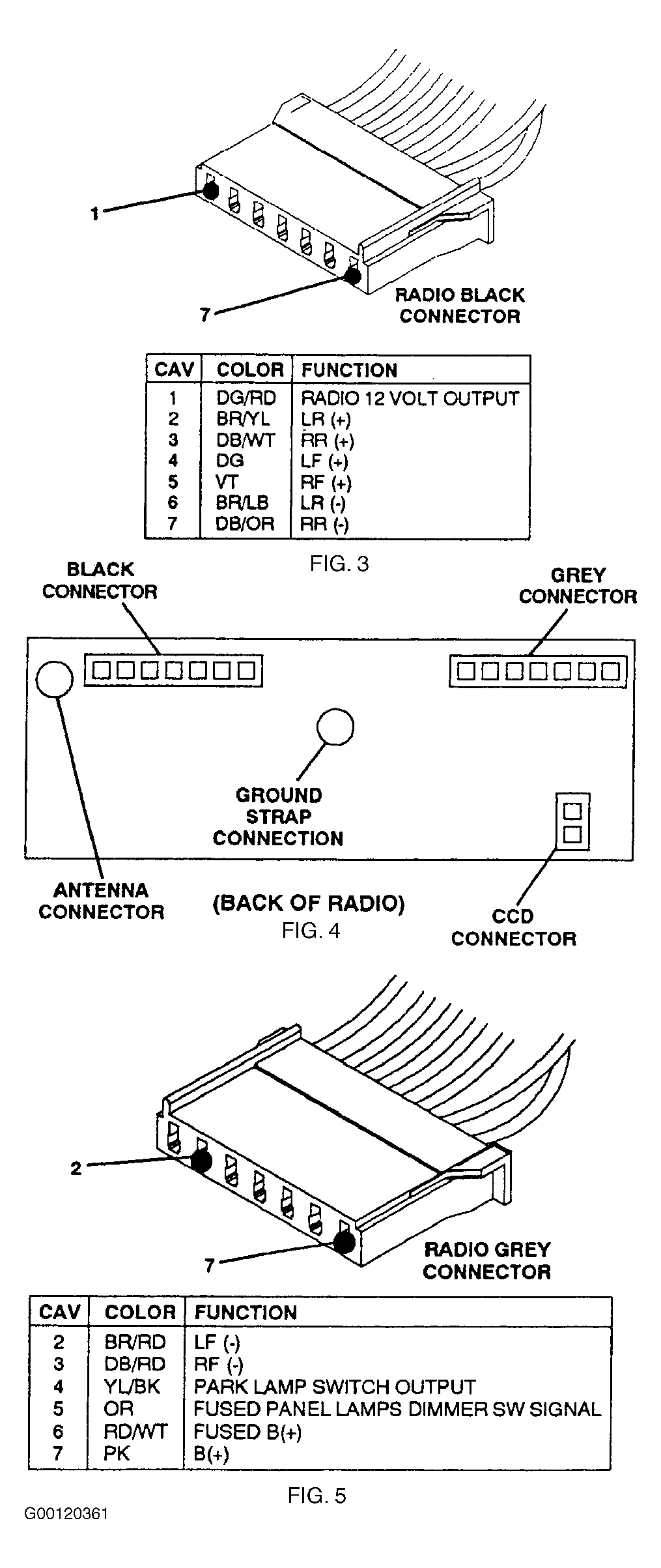

Fig 4: Test 86D: Identifying Radio Circuit & Connector Terminals (2 Of 2)

Courtesy of CHRYSLER CORP.
