Test 106A: Repairing Body Control Module "No Response" Condition

NOTE: Perform TEST 1A: IDENTIFYING VEHICLE EQUIPMENT & SYSTEM PROBLEMS  before proceeding. For connector terminal identification referenced from TEST 106A procedures, refer to illustrations. See Fig 3 and Fig 4 .

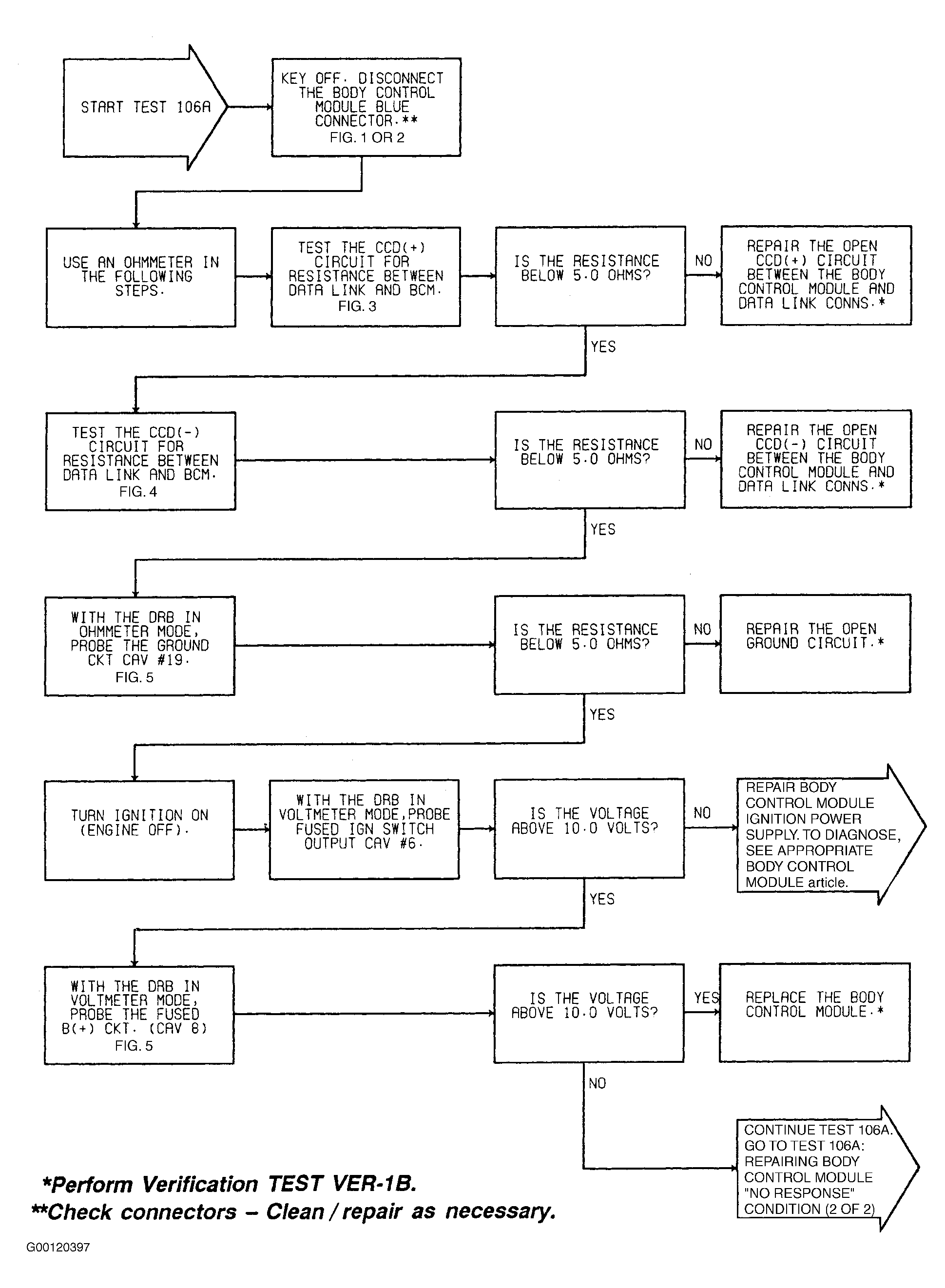

Fig 1: Test 106A: Repairing Body Control Module "No Response" Condition (1 Of 2)

Courtesy of CHRYSLER CORP.

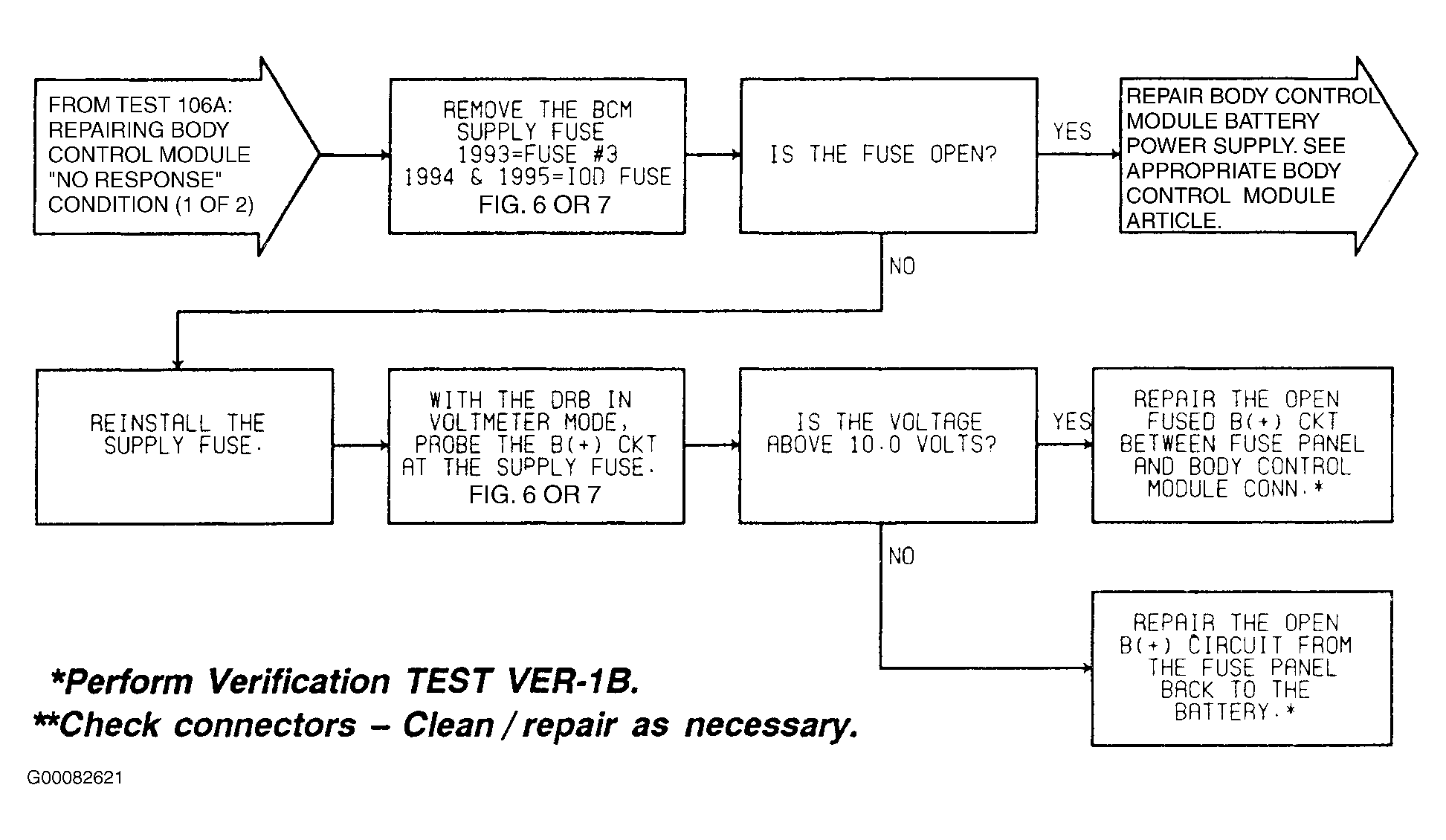

Fig 2: Test 106A: Repairing Body Control Module "No Response" Condition (2 Of 2)

Courtesy of CHRYSLER CORP.

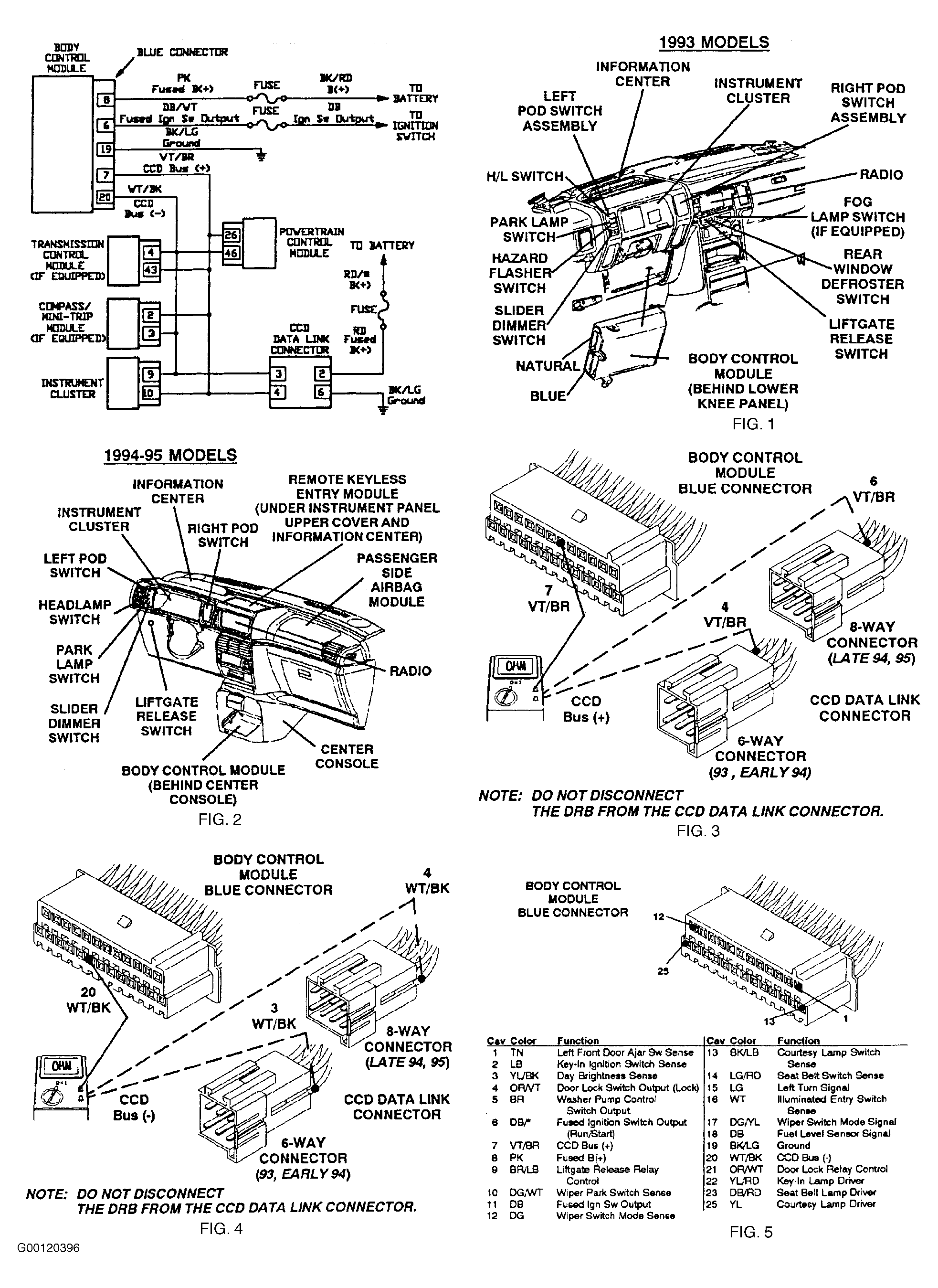

Fig 3: Test 106A: Identifying BCM/CCD Related Circuits, Component Locations & Connector Terminals (1 Of 2)

Courtesy of CHRYSLER CORP.

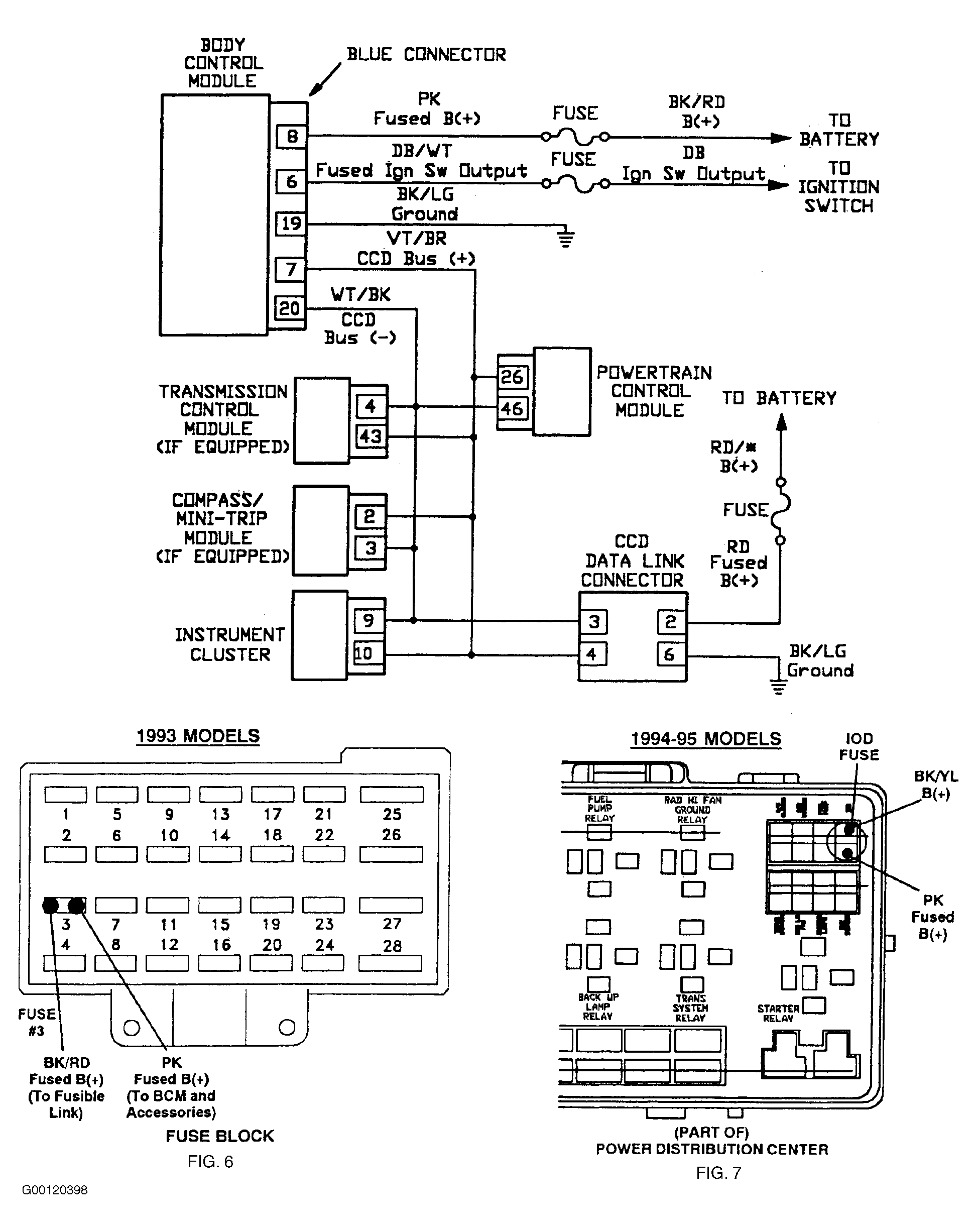

Fig 4: Test 106A: Identifying BCM/CCD Related Circuits & Connector Terminals (2 Of 2)

Courtesy of CHRYSLER CORP.
