Test Verification

For test procedures, see Fig 1.

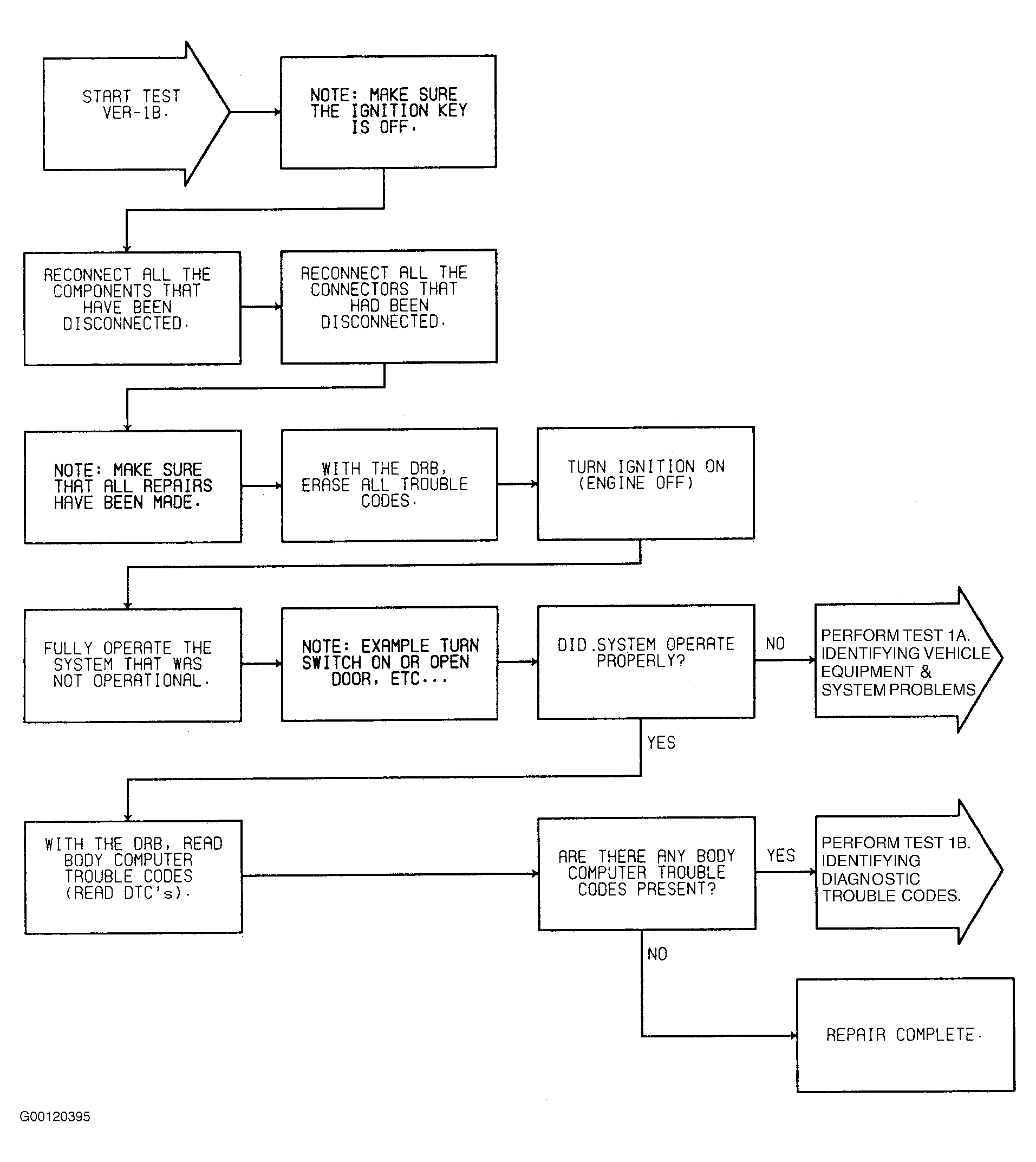

Fig 1: Verification Test 1-B

G00120395

Courtesy of CHRYSLER CORP.
