Component Tests: Audio

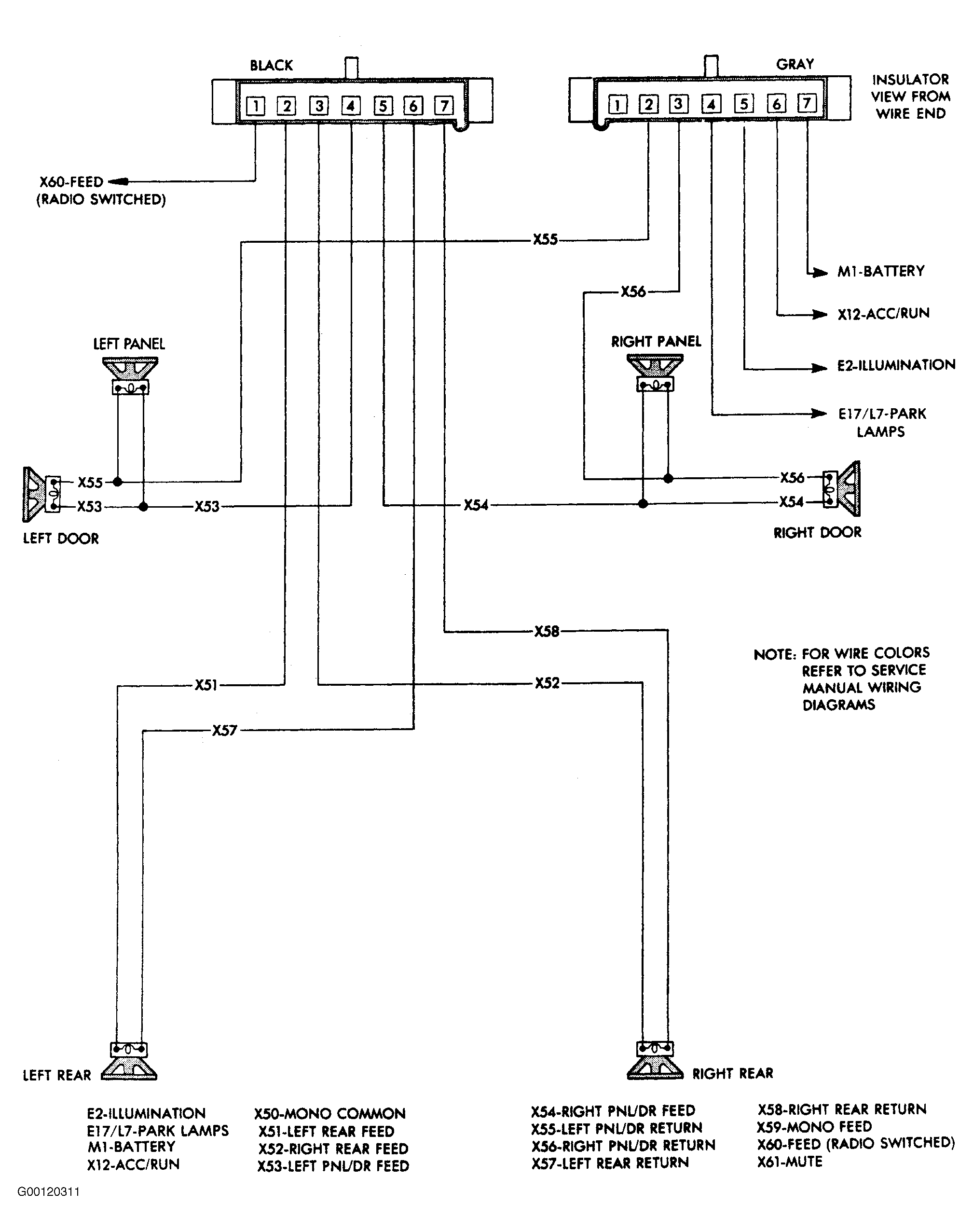

Whenever a audio malfunction occurs, first verify that the radio wire harness is properly connected to all connectors before starting normal diagnosis and repair procedures. Refer to Audio Diagnostic Charts and/or Radio Connector Circuit. See Fig 1.
