Hall Effect Switch

Hall Effect switch is located inside distributor. See Fig 1 . This switch supplies PCM with engine RPM data and ignition timing information. PCM uses this information to advance or retard ignition timing as necessary.

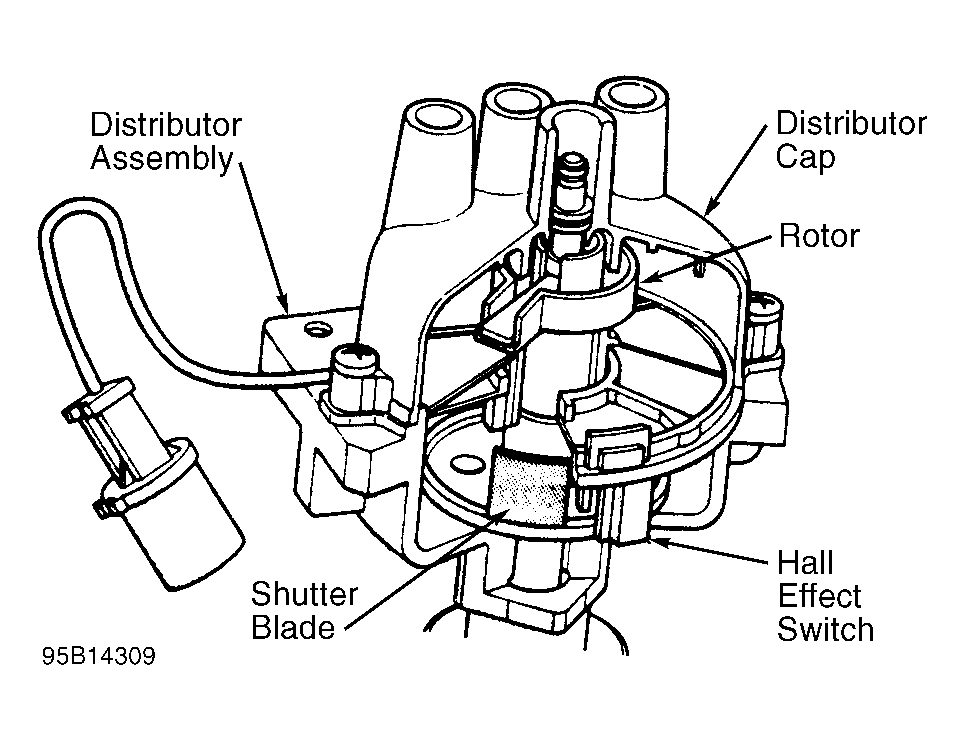

Fig 1: Cross-Sectional View Of Hall Effect Distributor

Courtesy of CHRYSLER CORP.
