Rear Wheel Speed Sensor: Installation

To install, reverse removal procedure. Coat sensor with high-temperature multipurpose grease before installing. Tighten sensor screw to 55 INCH lbs. (6 N.m). There is no air gap adjustment.

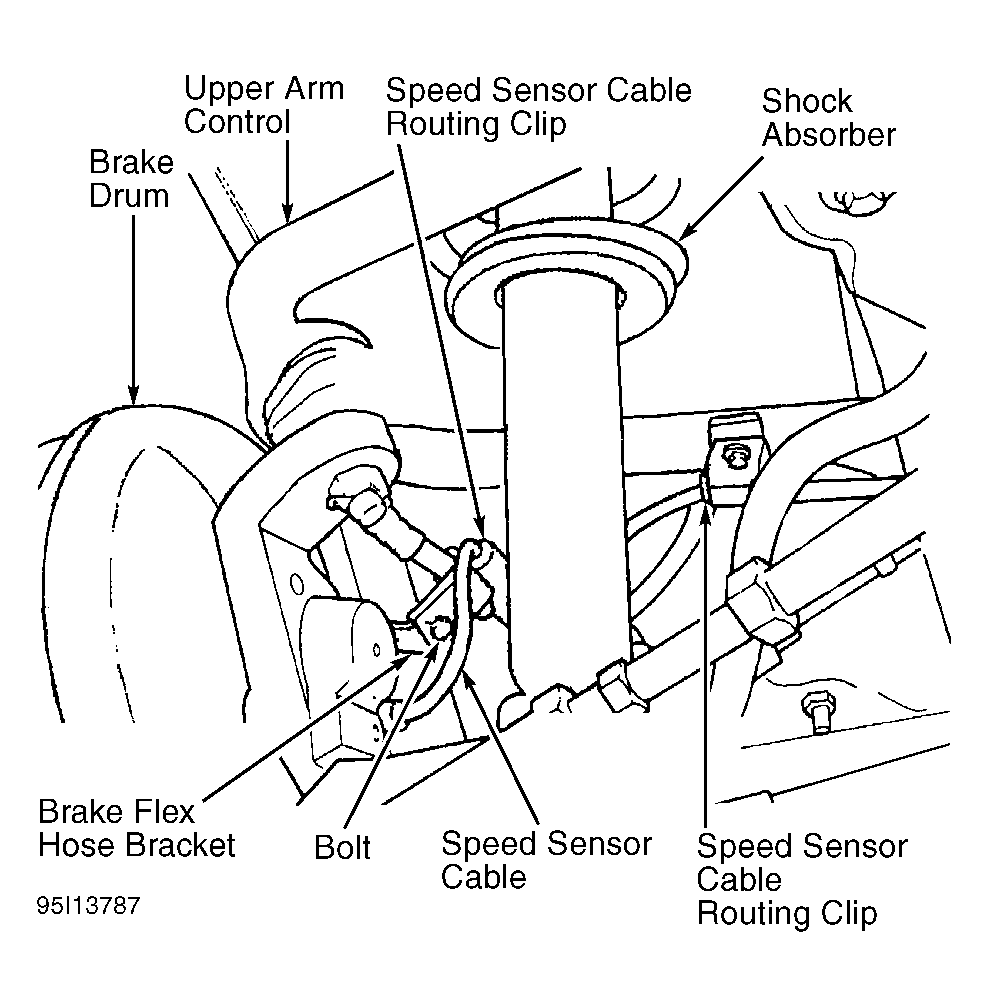

Fig 1: Locating Rear Speed Sensor Routing Clips

Courtesy of CHRYSLER CORP.
