Window Motor: Installation

Install motor on regulator so that it engages sector gear teeth. Rotate motor as necessary to align 3 motor mounting bolts. Tighten motor mounting bolts to 50-70 INCH lbs. (5.6-8.0 N.m). Install regulator assembly. Using switch, test window motor operation.

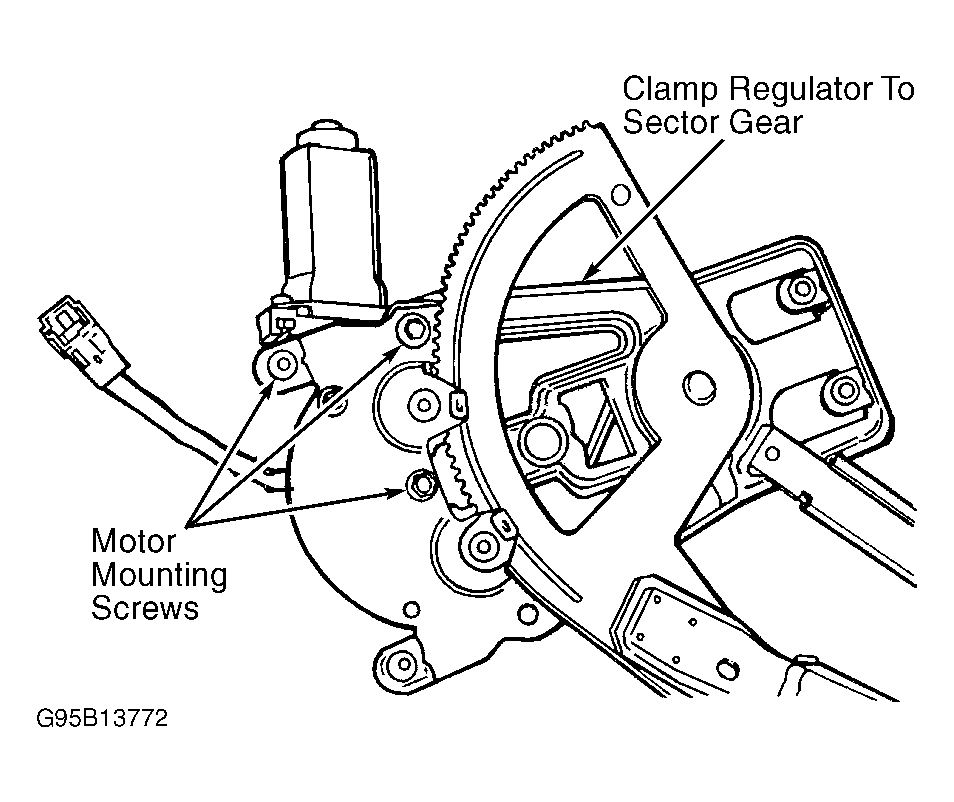

Fig 1: Removing Window Motor
G95B13772Courtesy of CHRYSLER CORP.
