Motor Runs With Switch In Off Position

WARNING: This page is about a different car, the 1994 Chrysler LeBaron. However, it is still accessible from the selected car via links, so may be relevant.

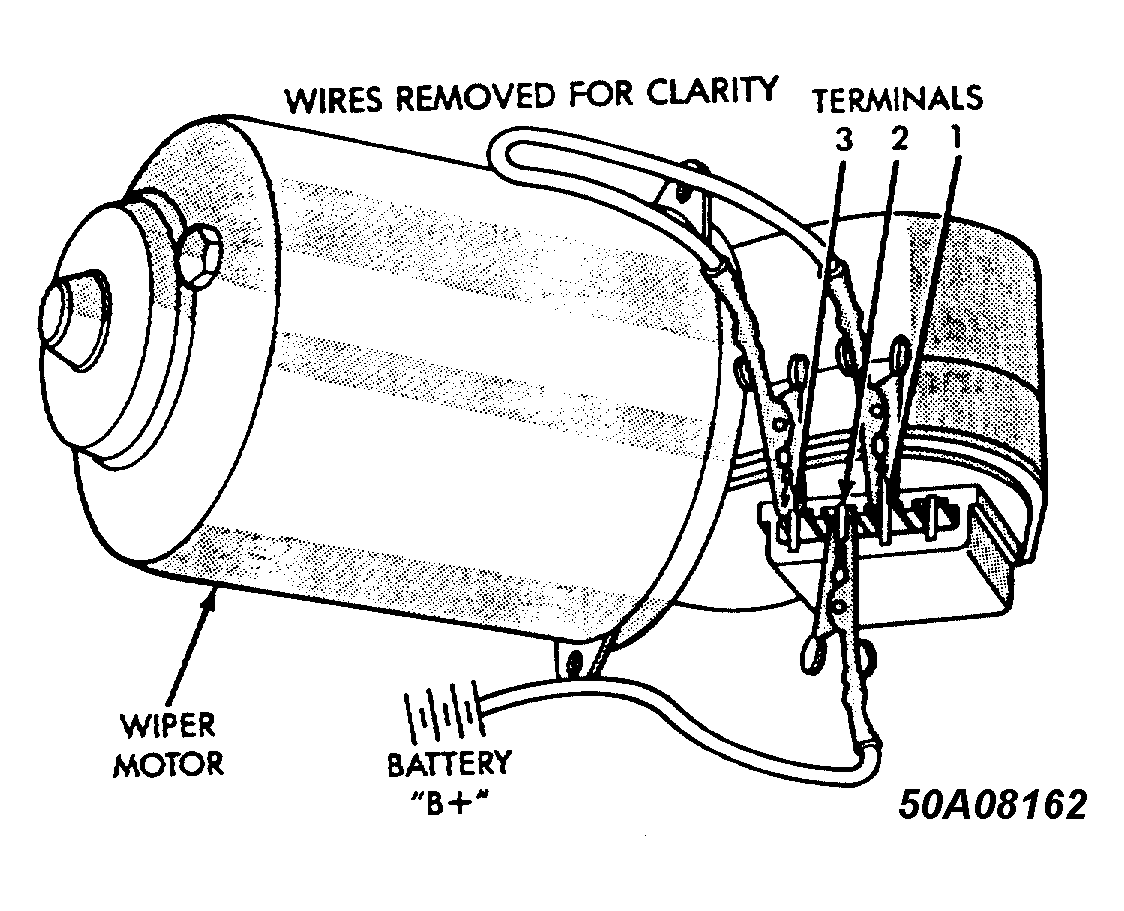

Disconnect motor wiring harness. Connect jumper wire from motor terminal No. 1 to terminal No. 3. Connect battery voltage to motor terminal No. 2. See Figure . If motor runs to park position and stops, replace wiper switch. If motor continues to run, replace motor.
