Test F: Cd Inoperative
>>
With Infinity System
With Infinity System

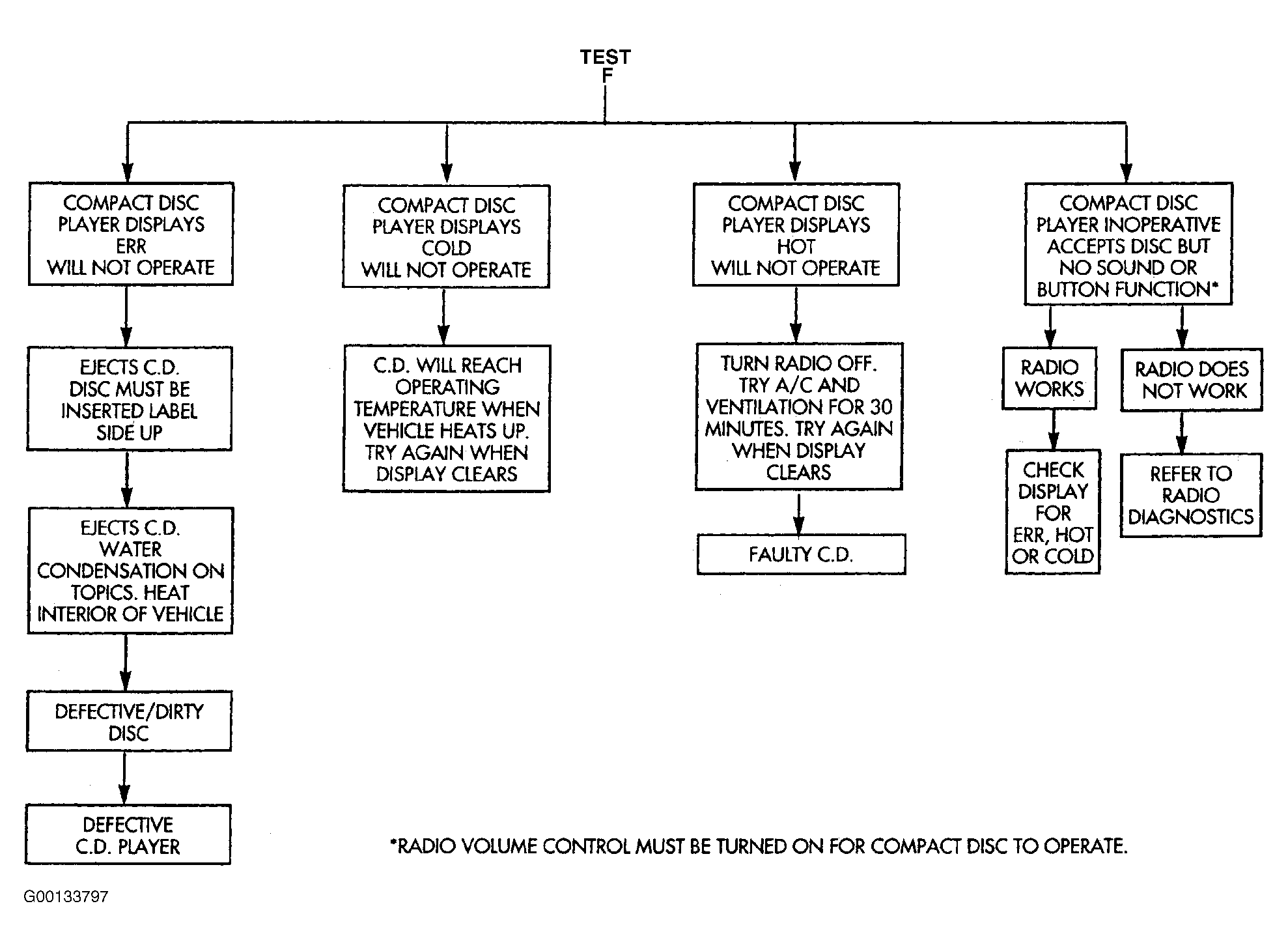

Fig 1: Test F: CD Inoperative Diagnostic Flow Chart (Infinity)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
