Audio Diagnostic Flow
>>
Without Infinity System
Without Infinity System

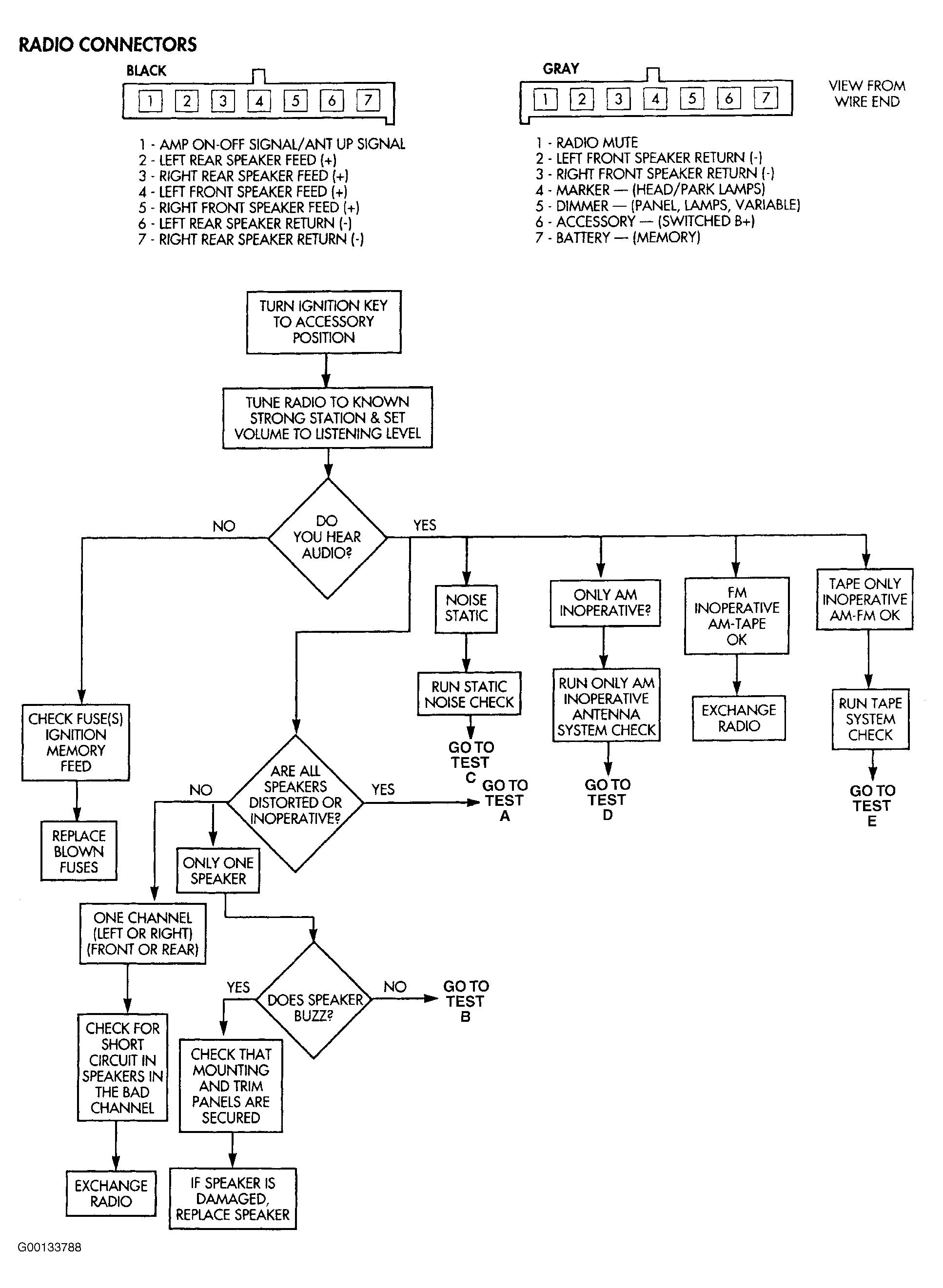

Fig 1: Audio Diagnostic Flow Chart (Without Infinity)
Courtesy of CHRYSLER CORP.
