Audio Diagnostic Flow
>>
With Infinity System
With Infinity System

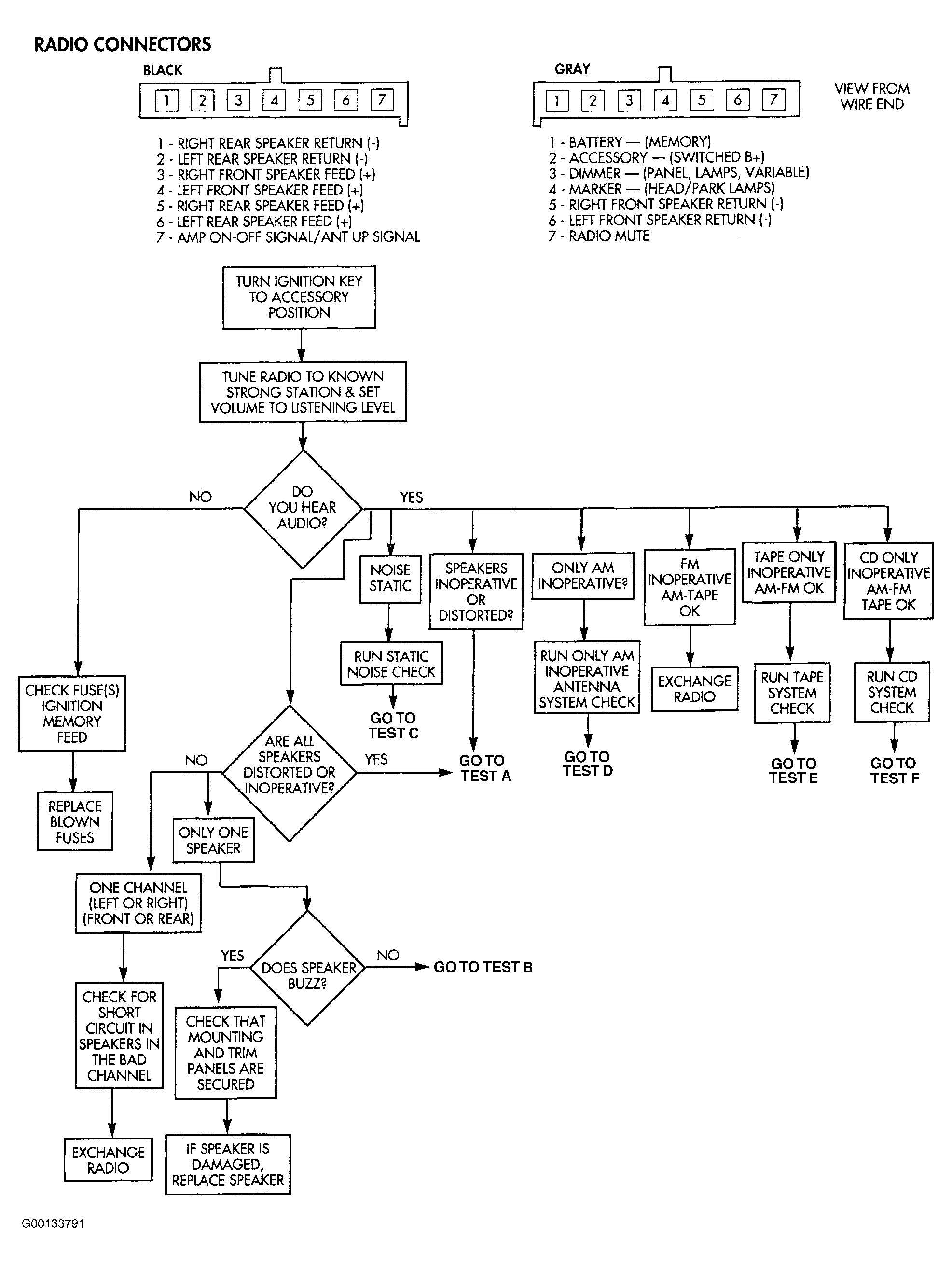

Fig 1: Audio Diagnostic Flow Chart (Infinity)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
