Traveler Module: Wiring Diagram

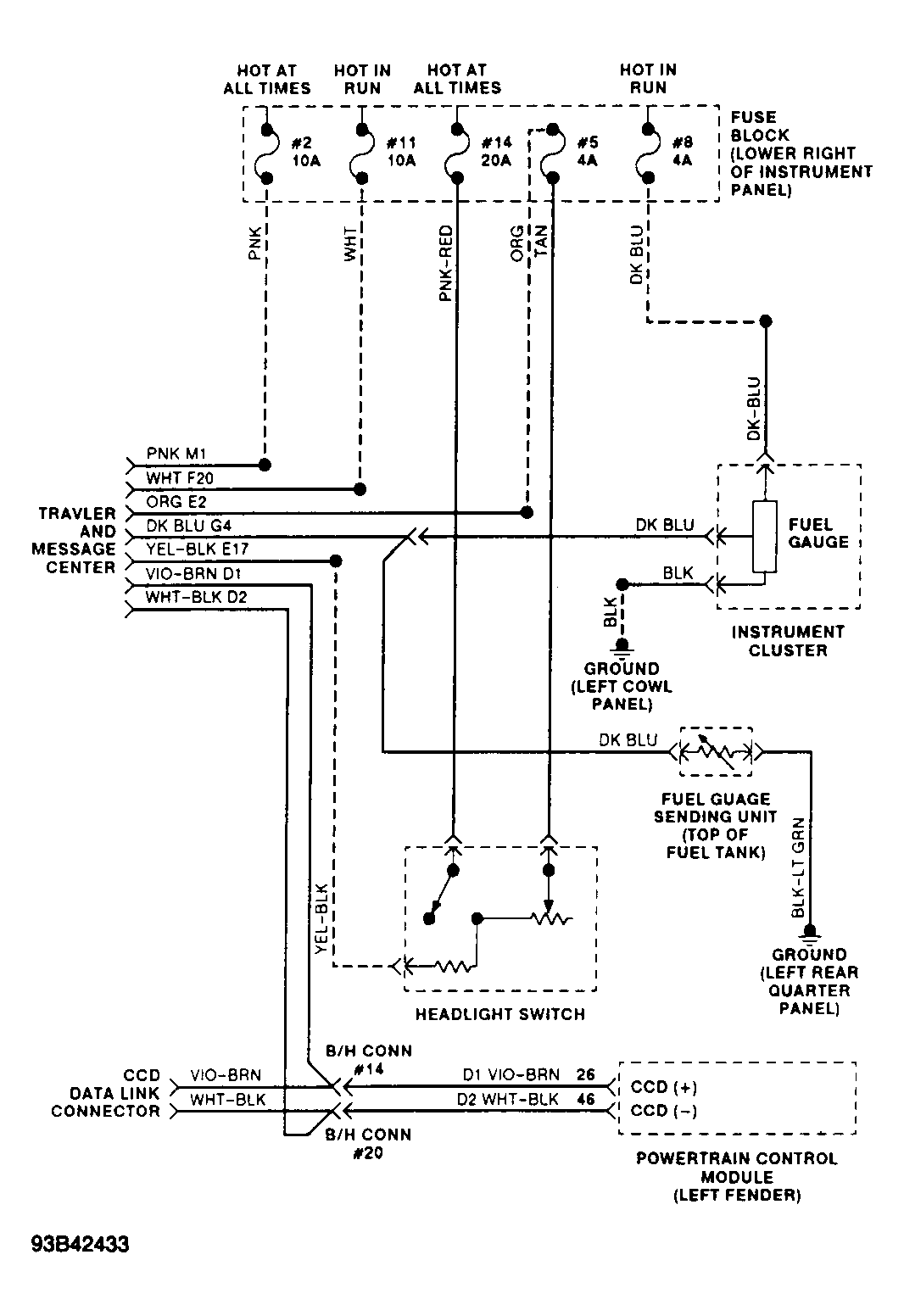

Fig 1: Traveler Module System Wiring Diagram (AA Body)
G93B42433

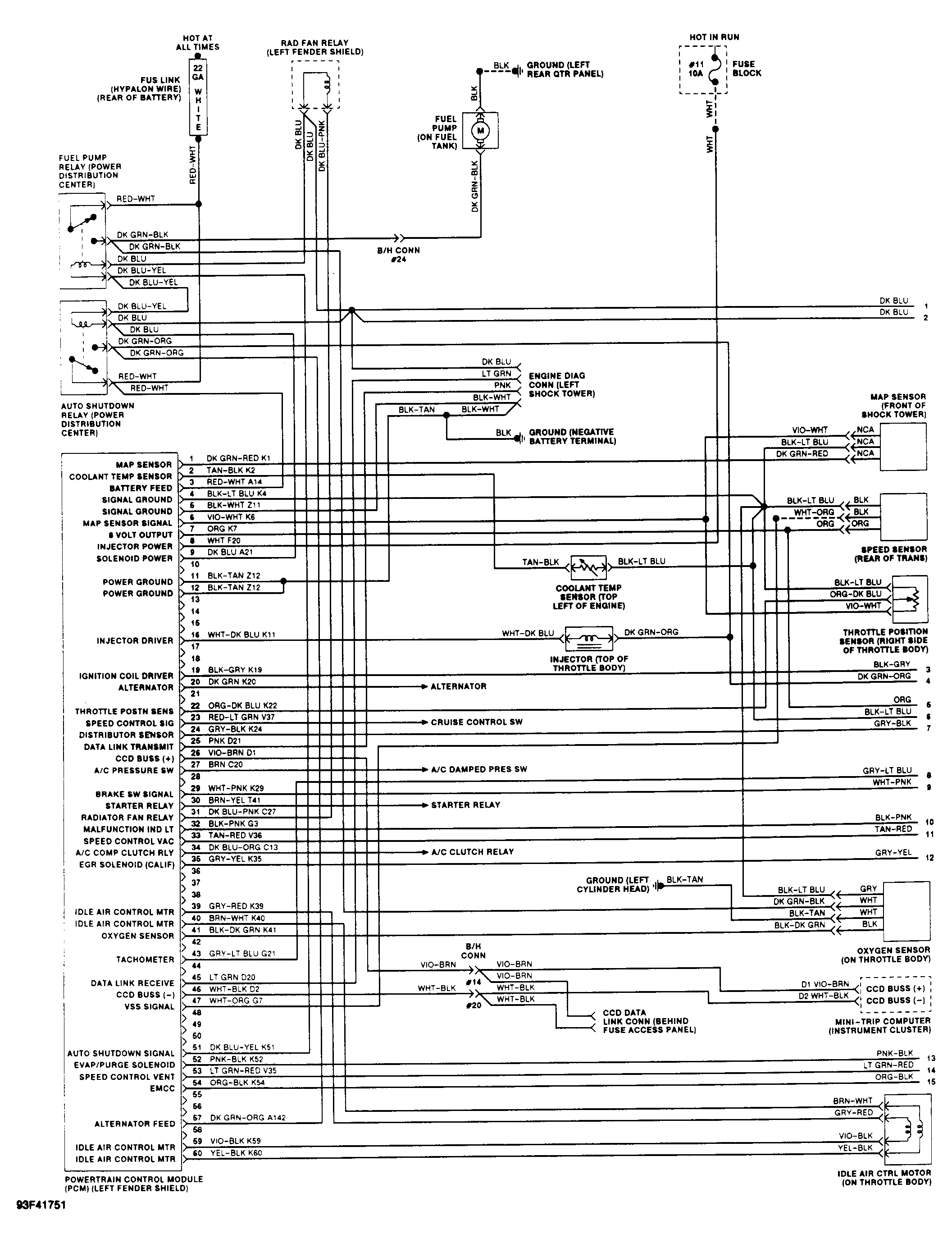

Fig 2: PCM Wiring Diagram - 1 Of 2 (2.5L TBI)
G93F41751

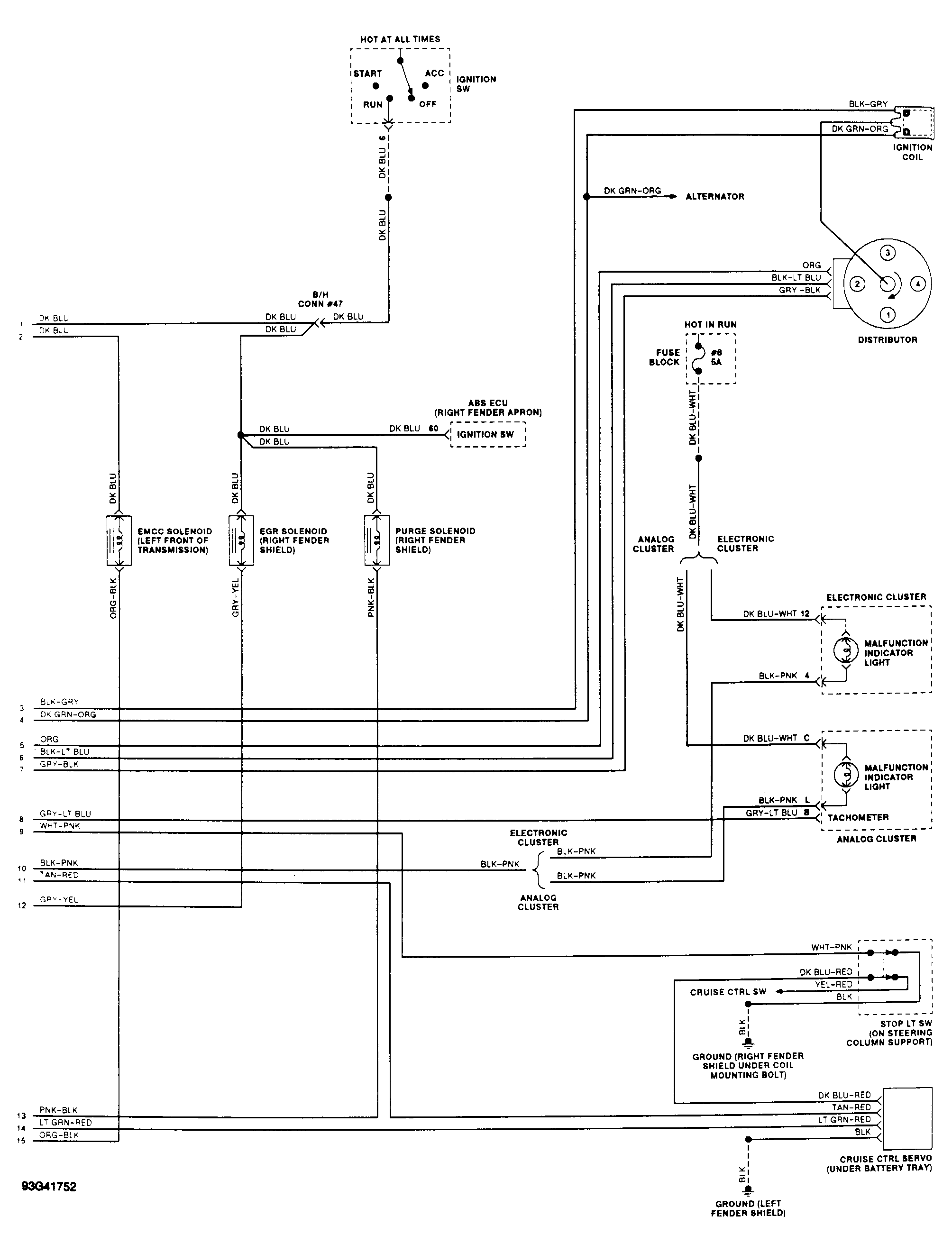

Fig 3: PCM Wiring Diagram - 2 Of 2 (2.5L TBI)
G93G41752

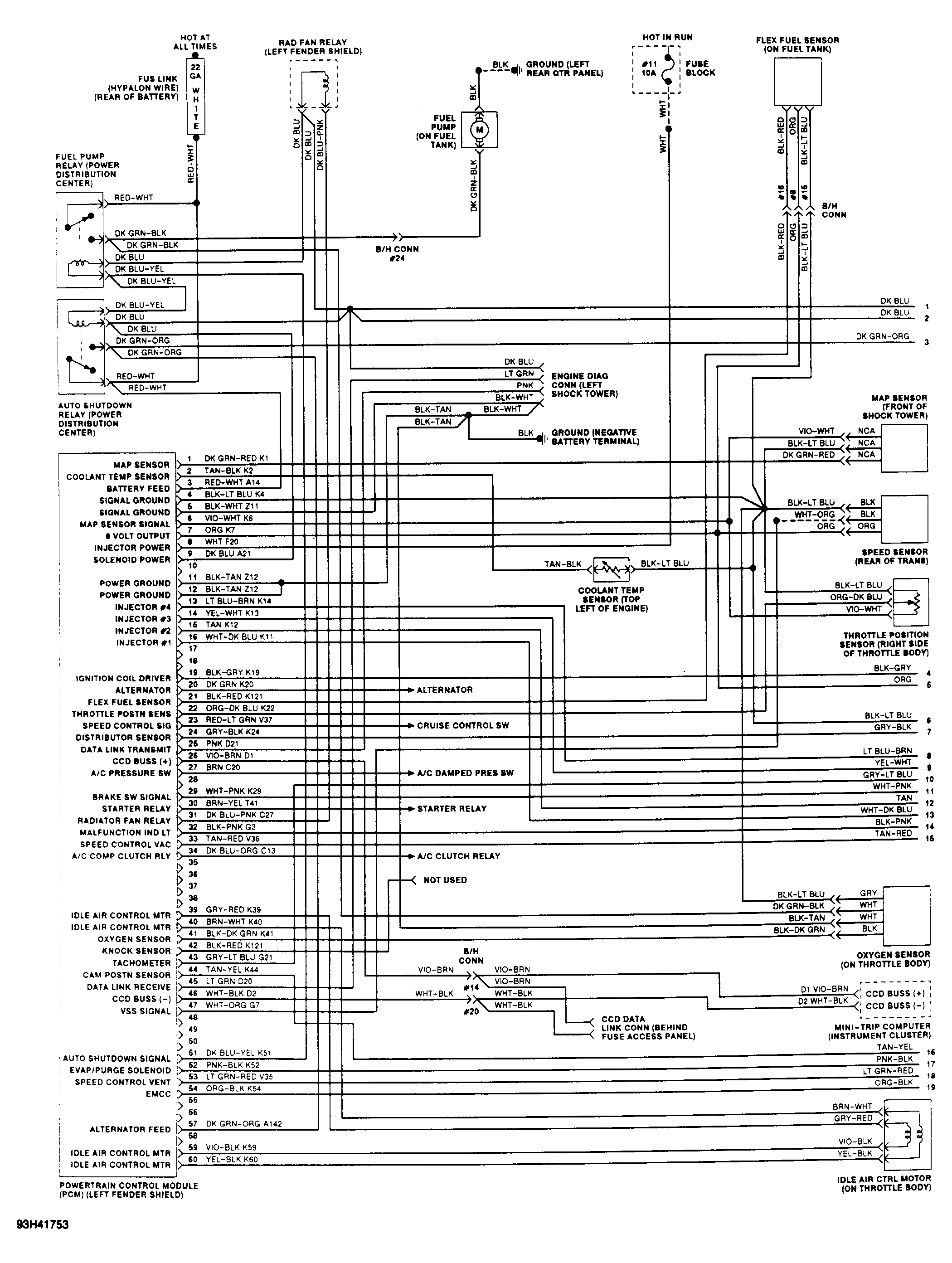

Fig 4: PCM Wiring Diagram - 1 Of 2 (2.5L Flexible Fuel)
G93H41753

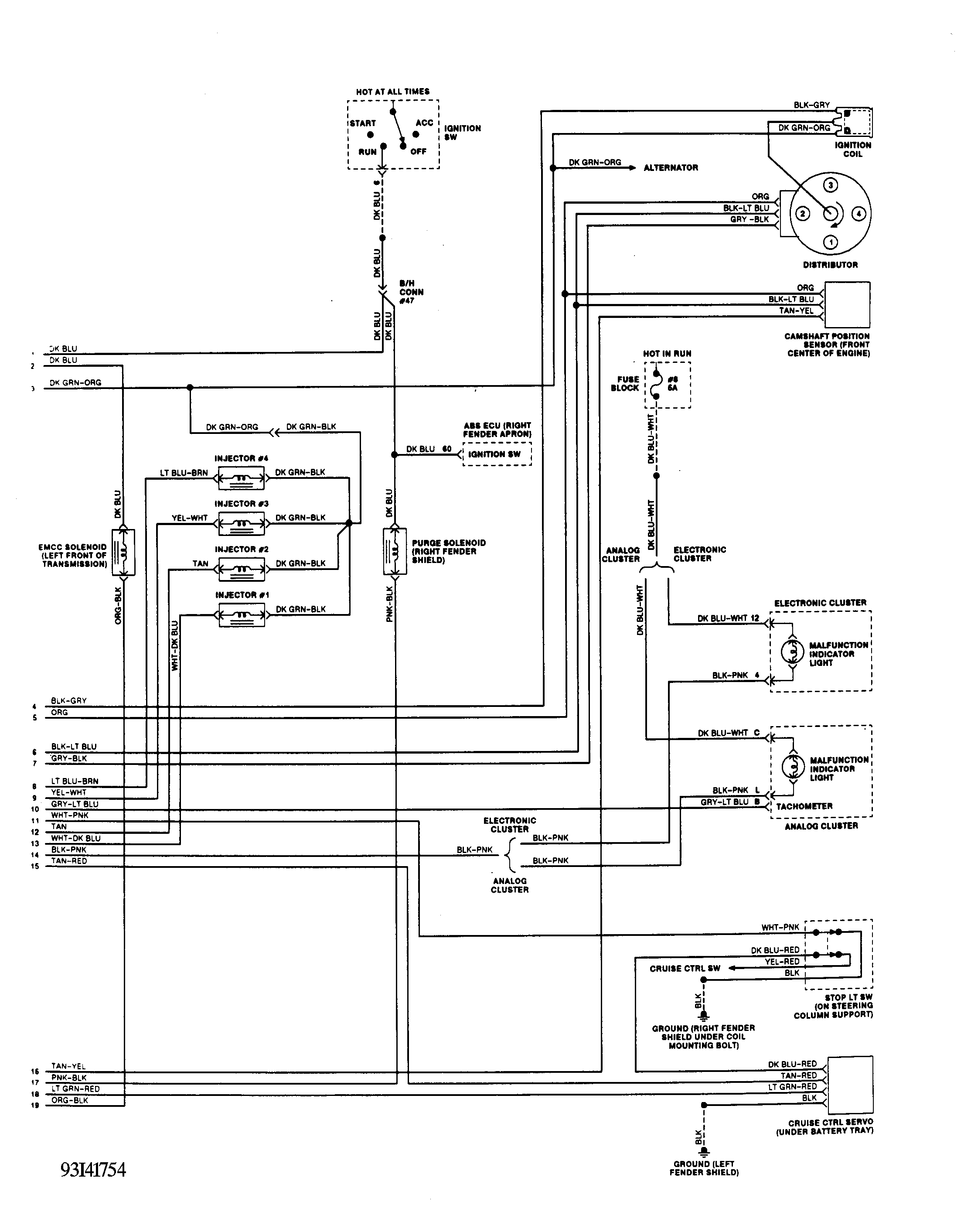

Fig 5: PCM Wiring Diagram - 2 Of 2 (2.5L Flexible Fuel)
G93I41754

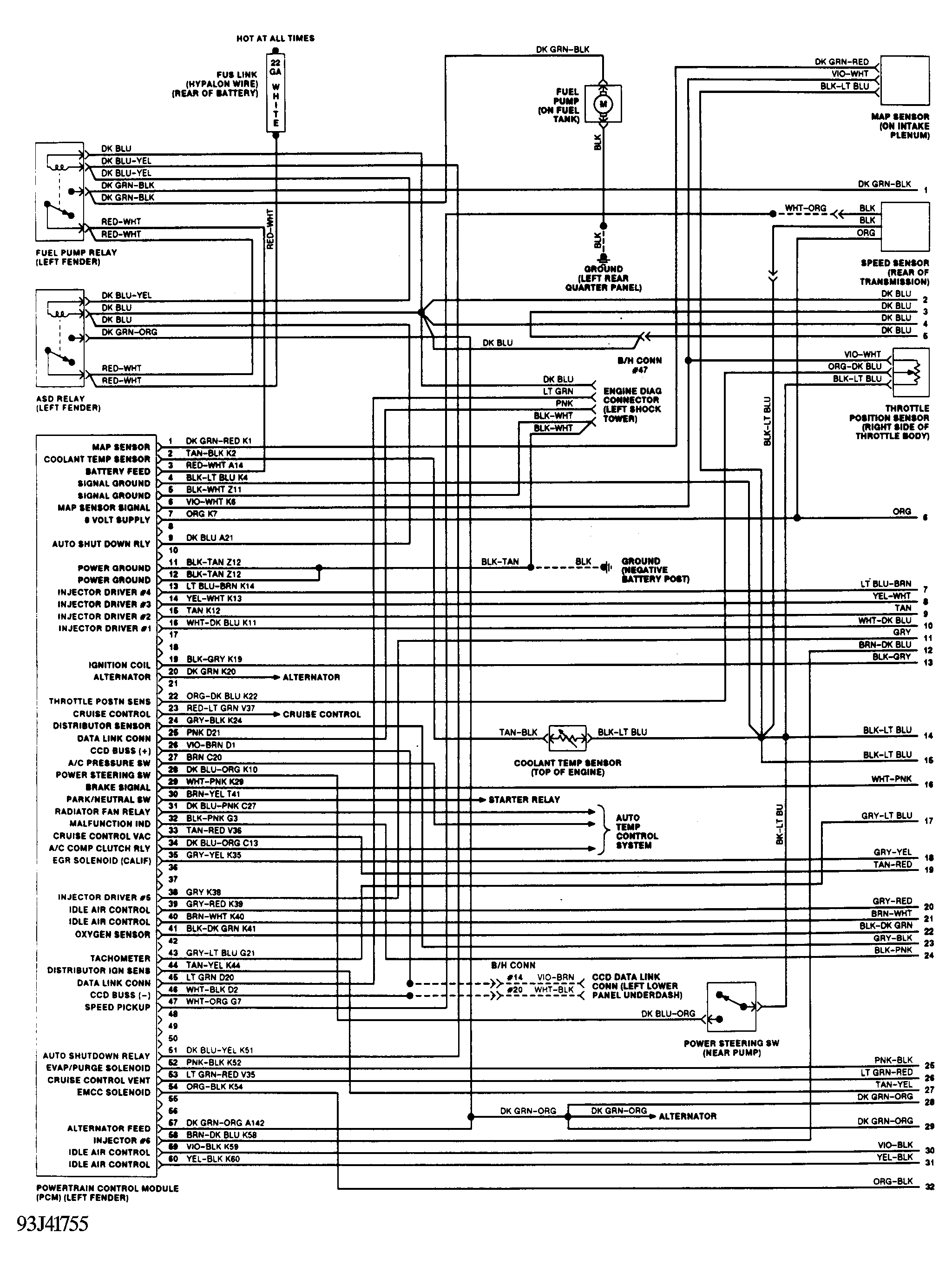

Fig 6: PCM Wiring Diagram - 1 Of 2 (3.0L PFI)
G93J41755

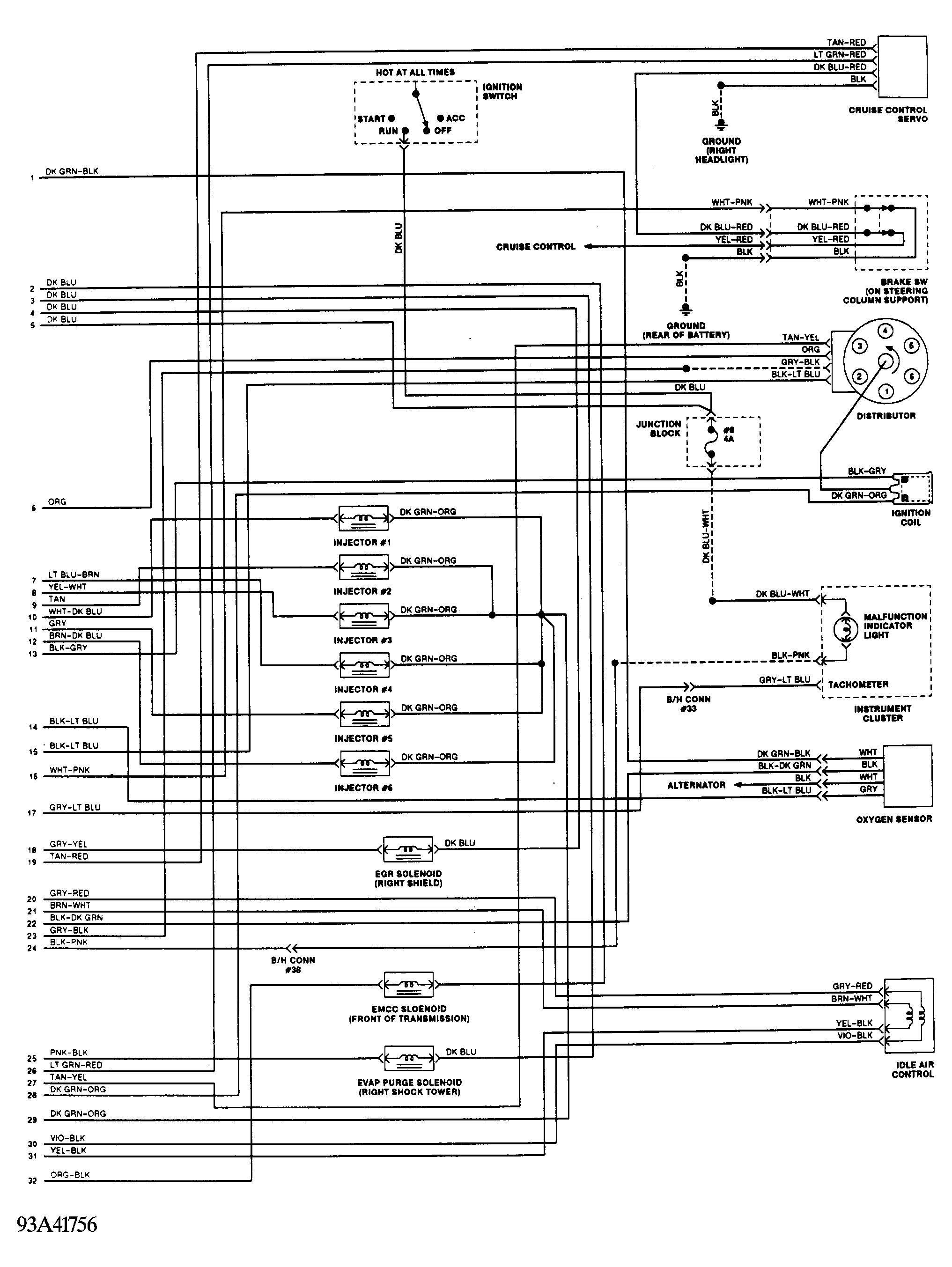

Fig 7: PCM Wiring Diagram - 2 Of 2 (3.0L PFI)
G93A41756
