Wiring Diagrams

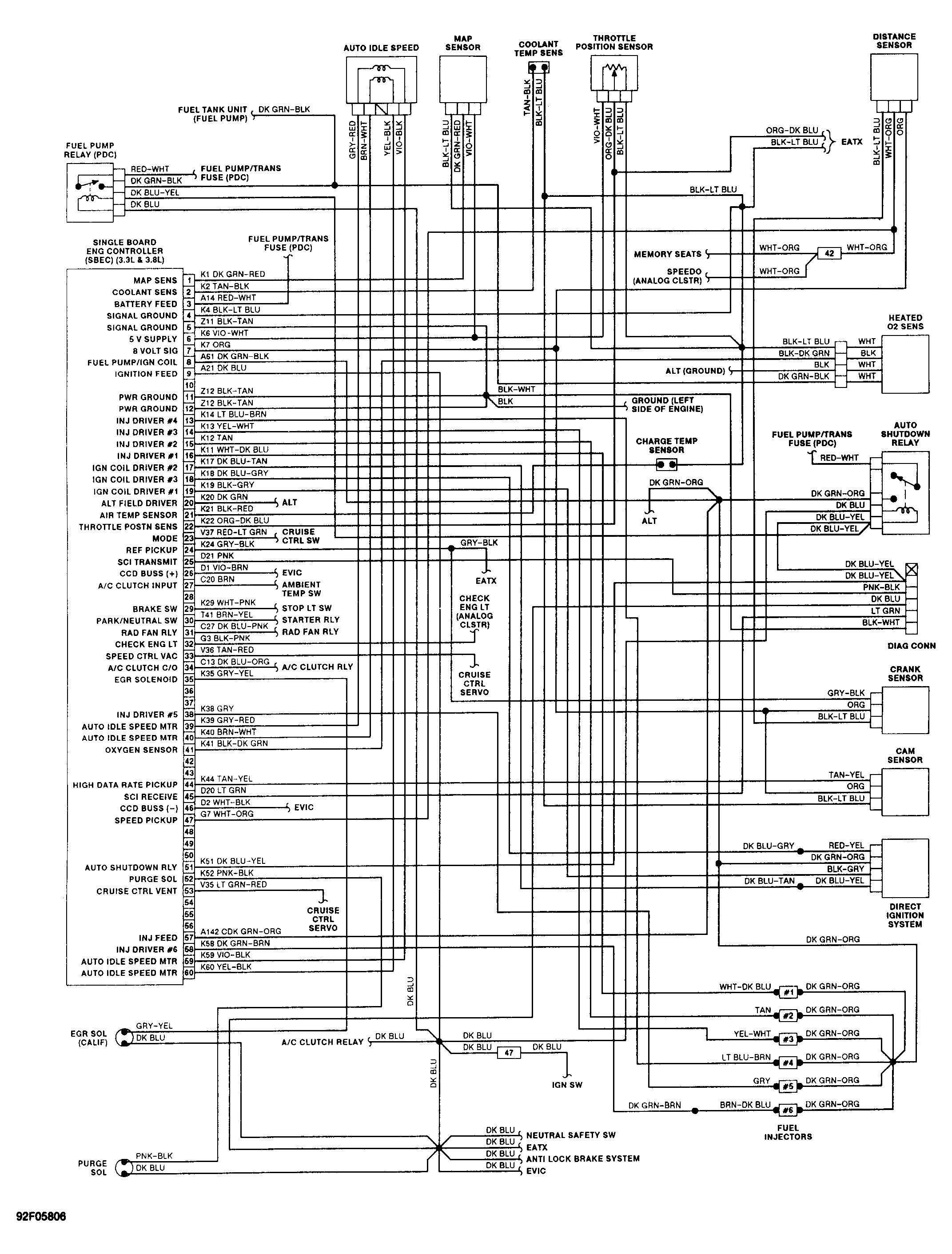

Fig 1: Wiring Diagram (Dynasty - 3.3L PFI)

G92F05806

Fig 2: Wiring Diagram (Except Dynasty)

G92F05806
