Electric Fan Motor

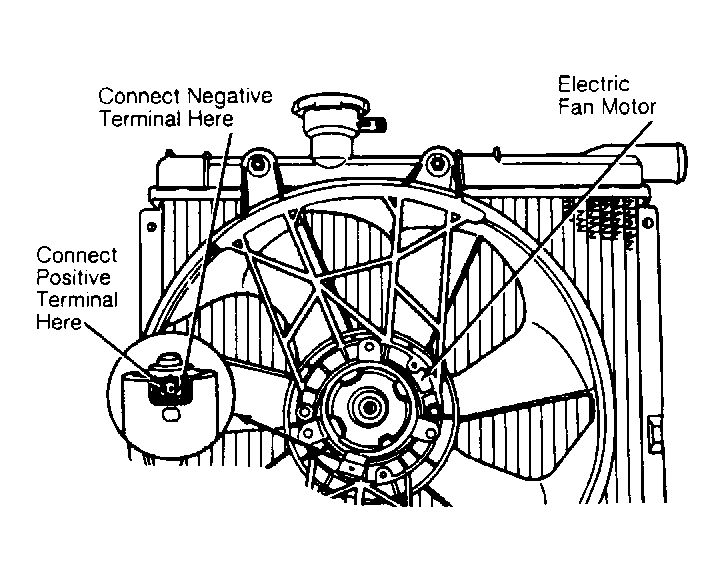

Disconnect electric fan motor. Observing correct polarity, connect a 12-volt battery to electric fan motor connector terminals. See Fig 1 . Replace electric fan motor if it fails to operate.
NOTE:
If motor is noticeably overheated, system voltage may be too high. Check charging system.
