Actuation Of The Set Button Will Not Set Any New Positions In Memory, Unable To Enter Diagnostic Self Test Modes, Only Previously Set Memory Positions Can Be Recalled

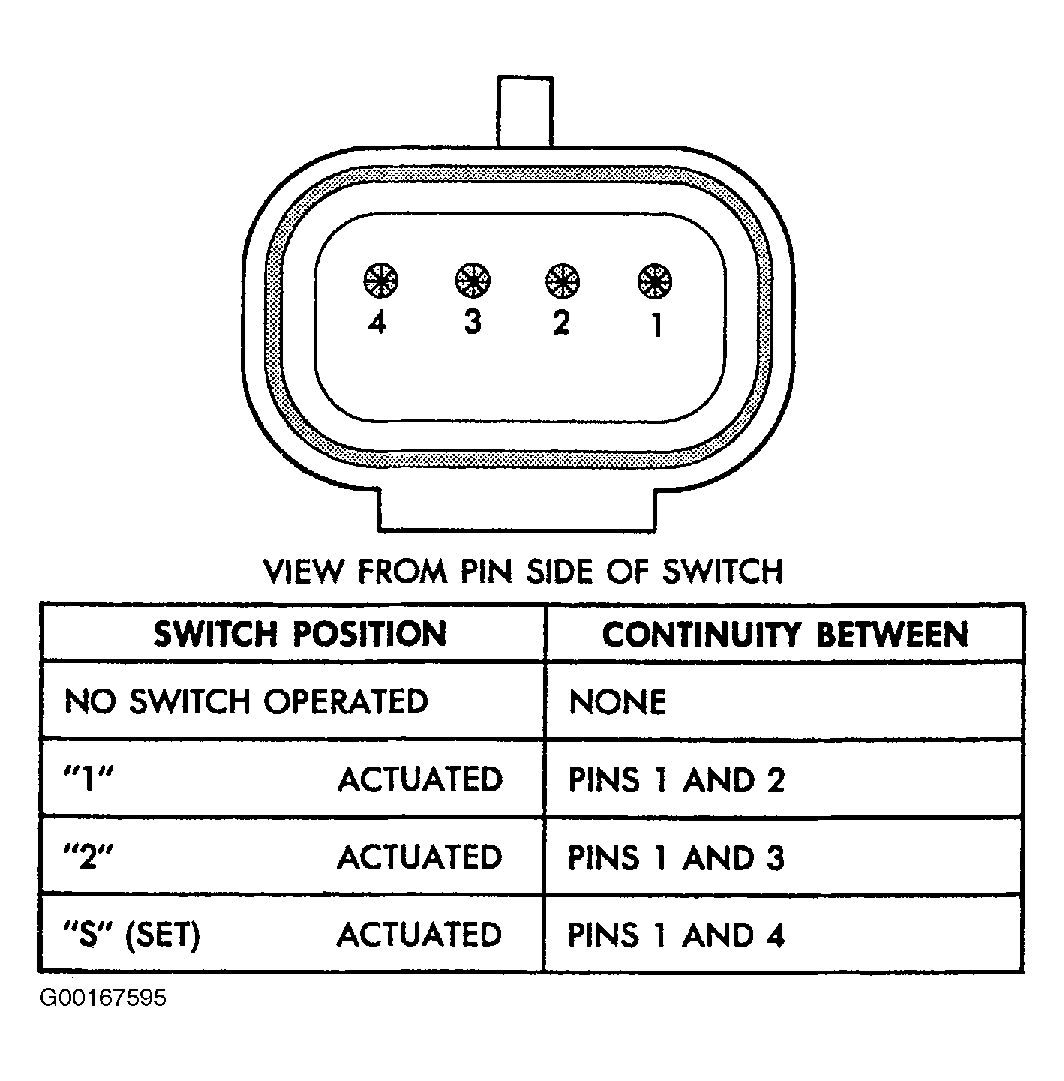

  1. Check for continuity of actuated memory switch Set button. Check memory switch continuity. See Figure . If there is continuity, continue with procedure. If not replace switch.
  2. Check for a terminal push out at pin No. 4 of the memory switch connector.

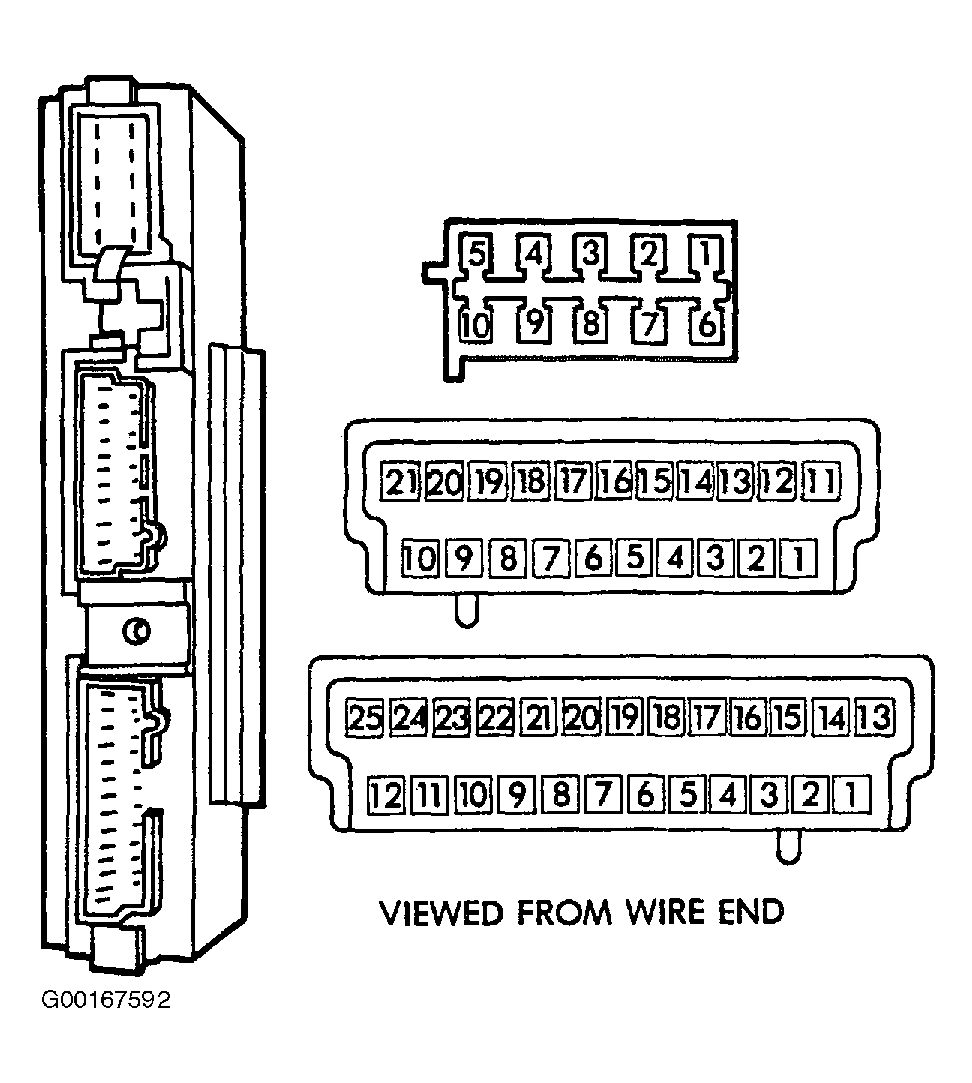

  3. Check for battery voltage at pin No. 2 of the control module 25-way connector with the Set button activated. See Figure . If battery voltage is OK there is no terminal push out, and the connector is properly seated then replace the control module.
