Test 83A: Repairing Fuel Level Problem

Fig 1: Test 83A: Circuit Diagram.

G91I11187

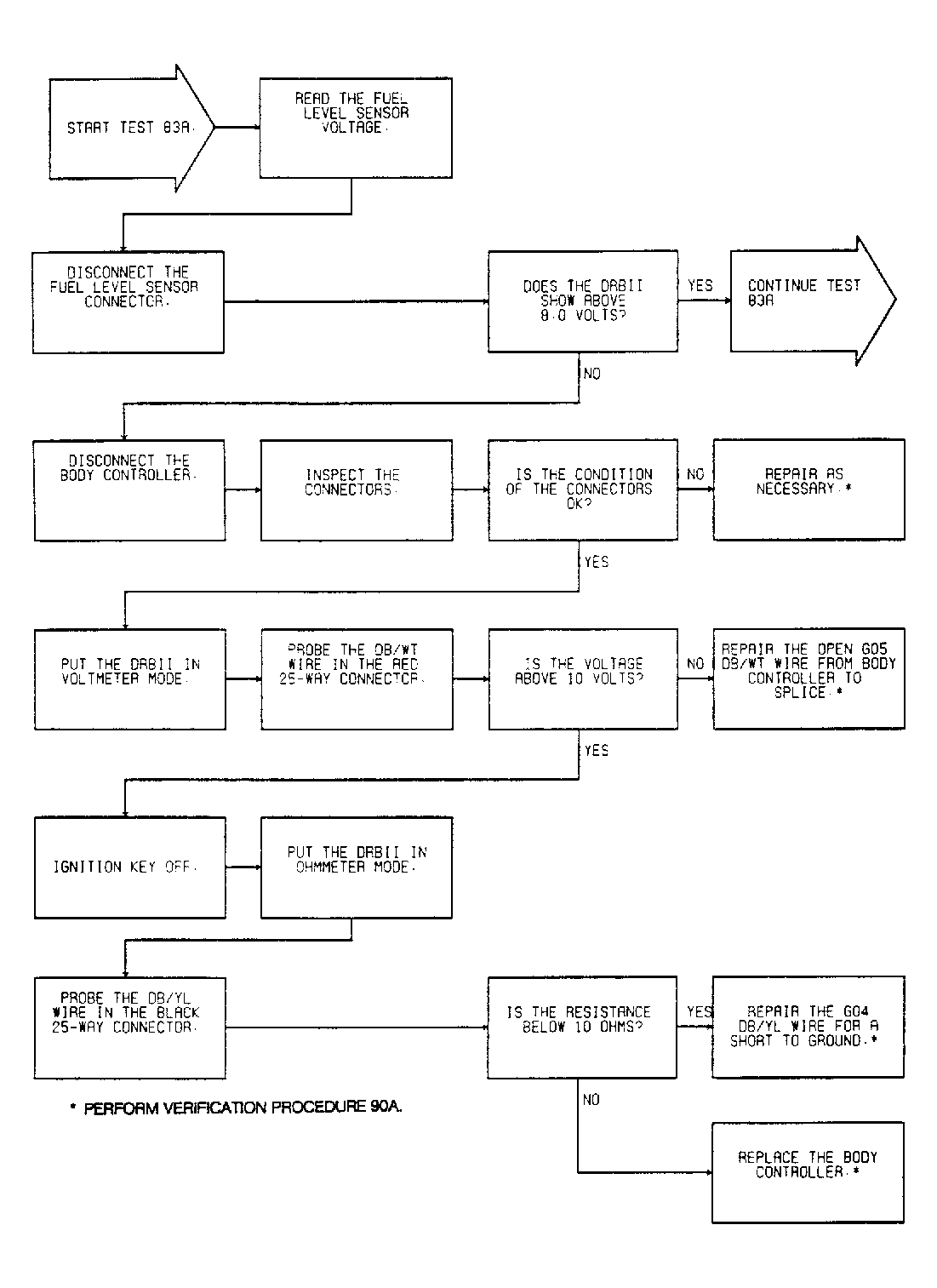

Fig 2: Test 83A: Repairing Fuel Level Problem (1 of 2)

G91J11428

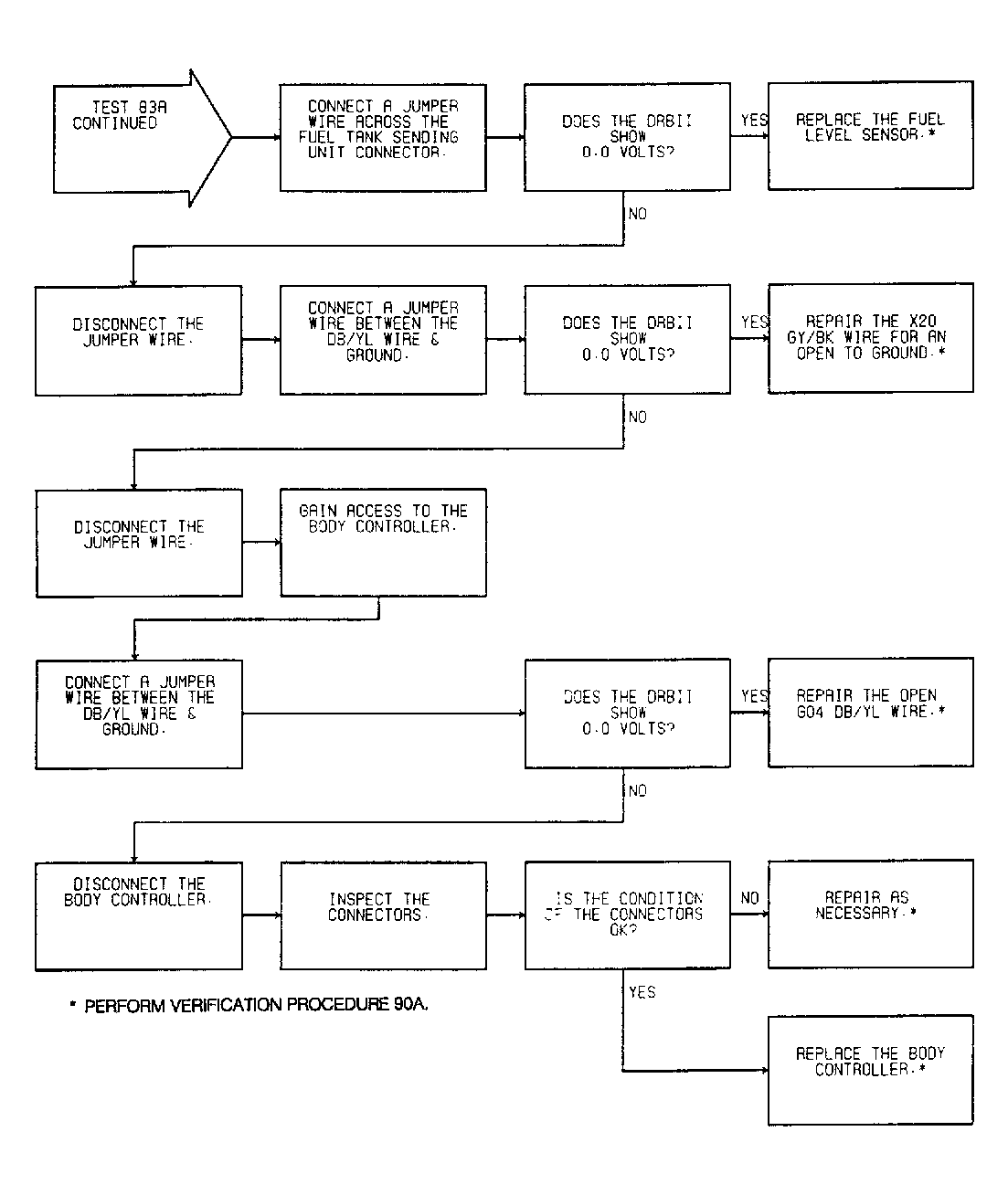

Fig 3: Test 83A: Repairing Fuel Level Problem (2 of 2)

G91A11429
