Test 50B: Theft Alarm Module P/S Door Key Cylinder Switch

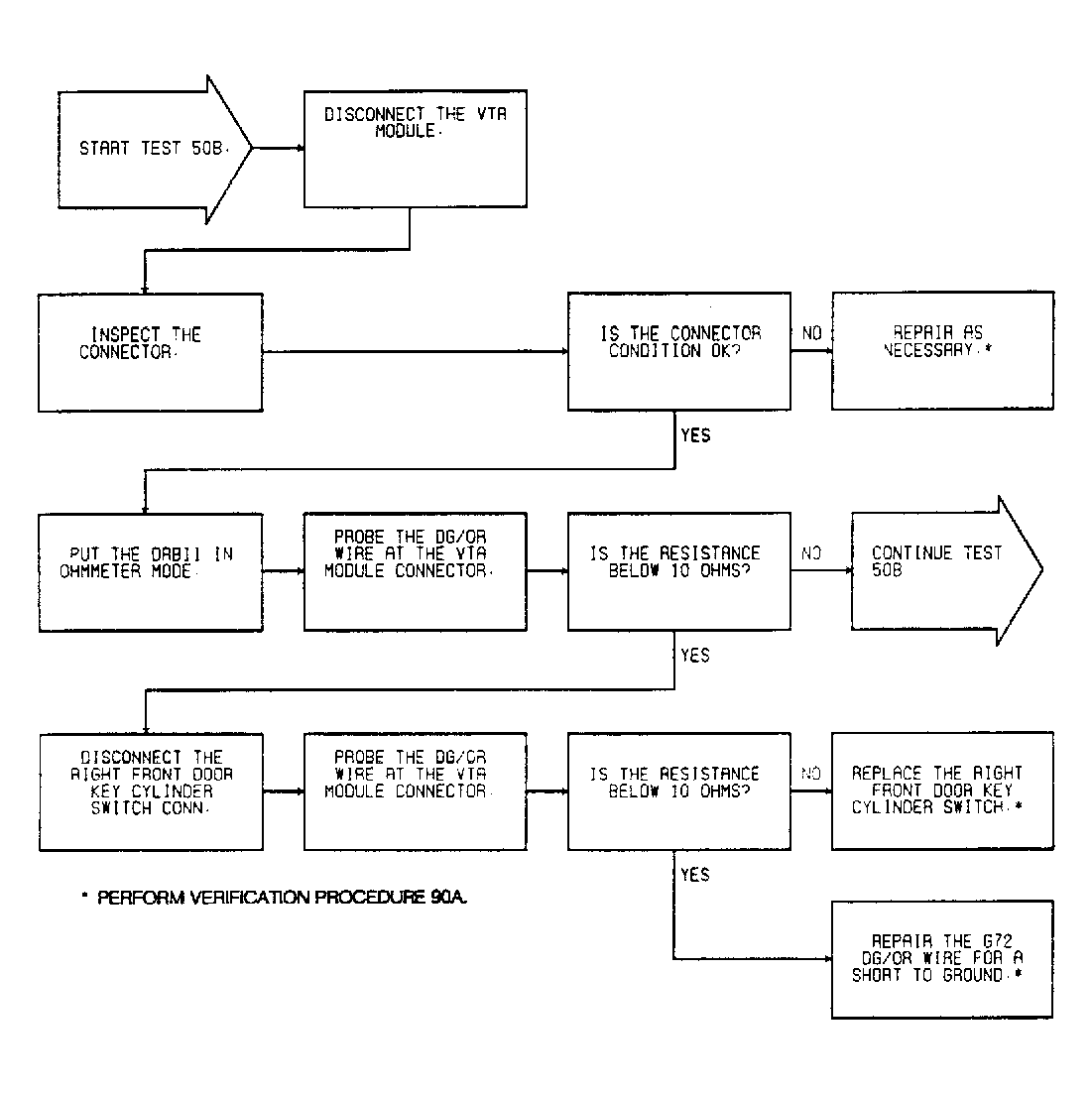

Fig 1: Test 50B: Theft Alarm P/S Door Key Cyl Switch (1 of 2)

G91A11387

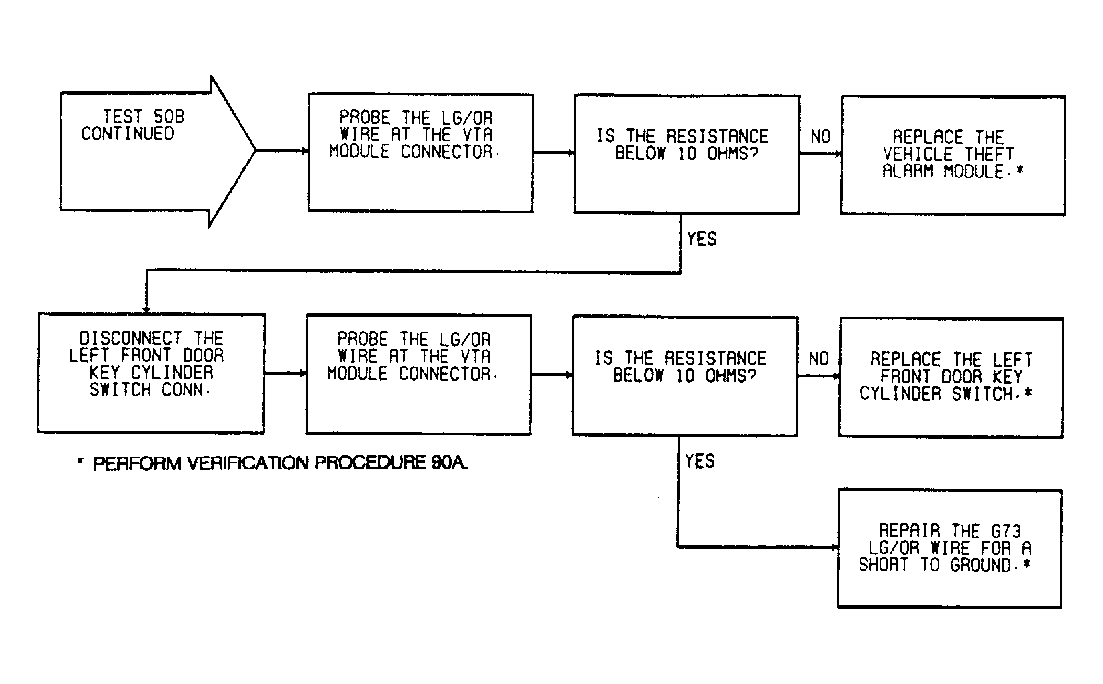

Fig 2: Test 50B: Theft Alarm P/S Door Key Cyl Switch (2 of 2)

G91B11388
