Test 43C: Theft Alarm Module Horn Output Circuit

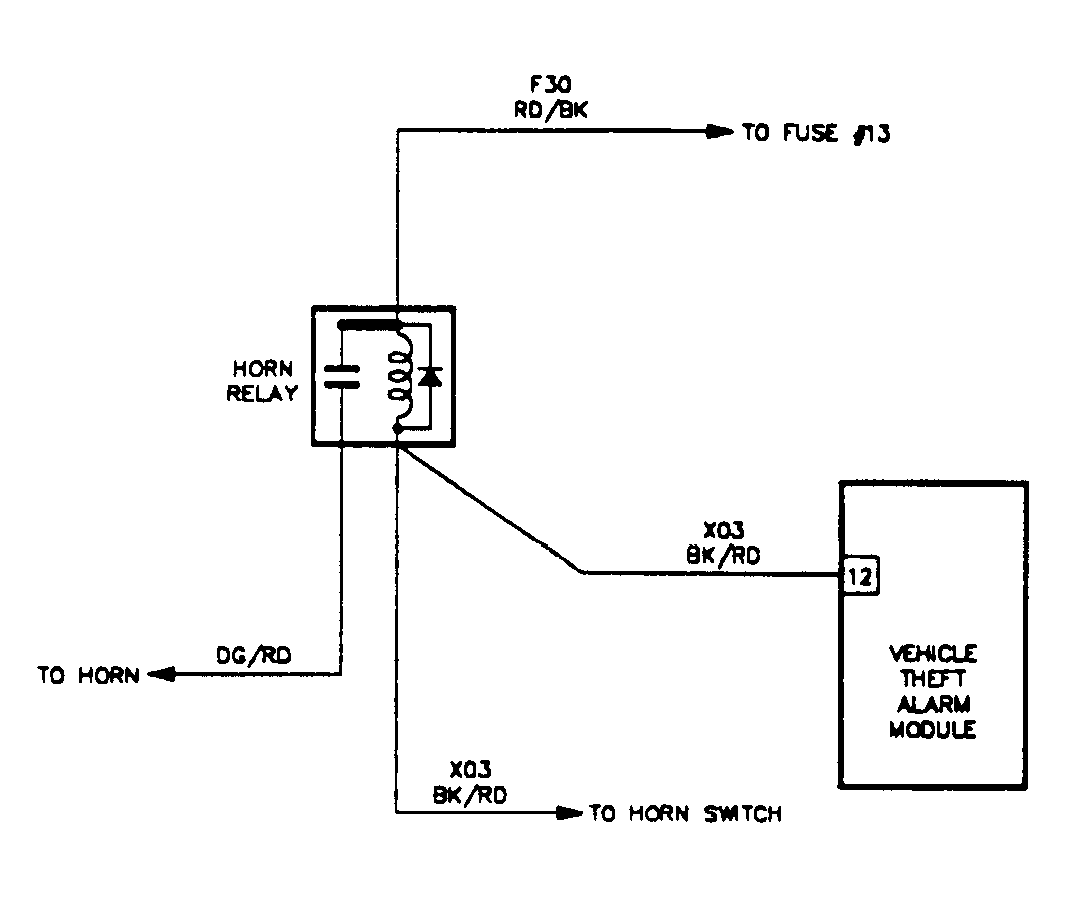

Fig 1: Test 43C: Circuit Diagram.
G91F11168

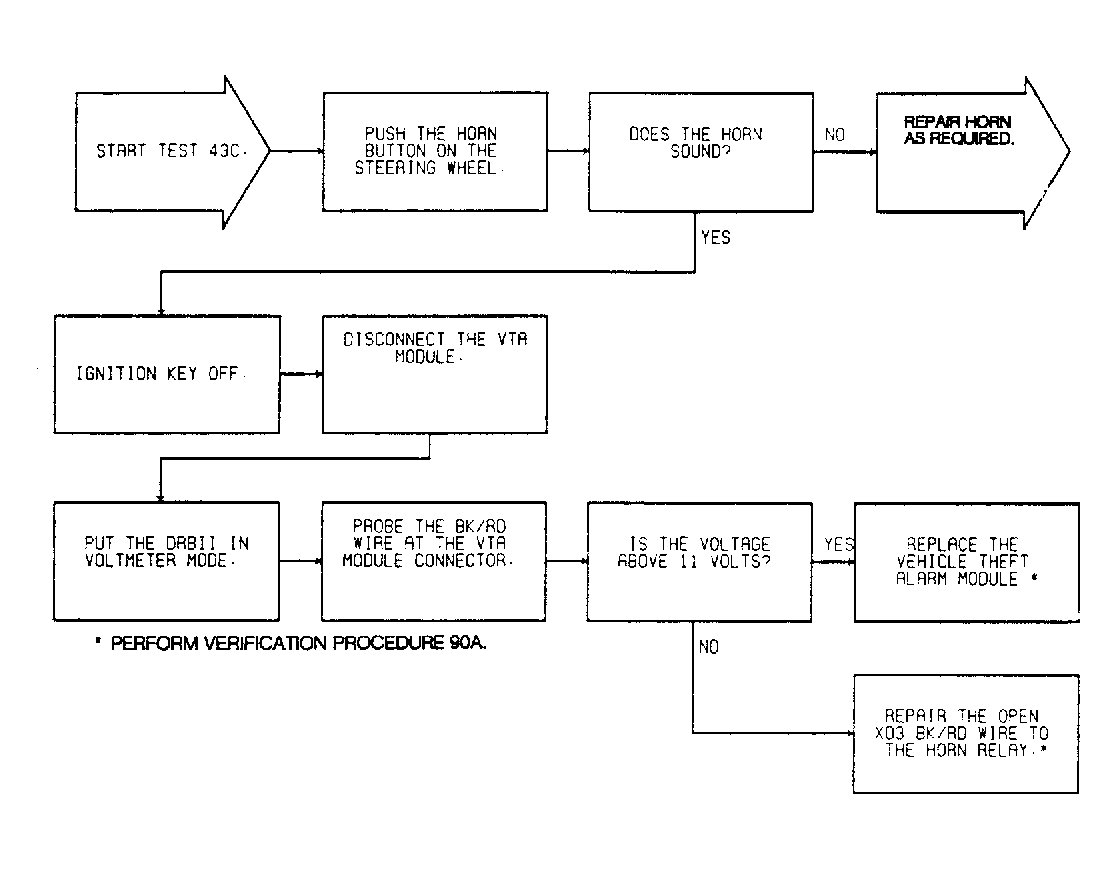

Fig 2: Test 43C: Theft Alarm Horn Output Circuit
G91E11373
