Test 40C: Theft Alarm Module Driver's Door Key Cylinder Switch

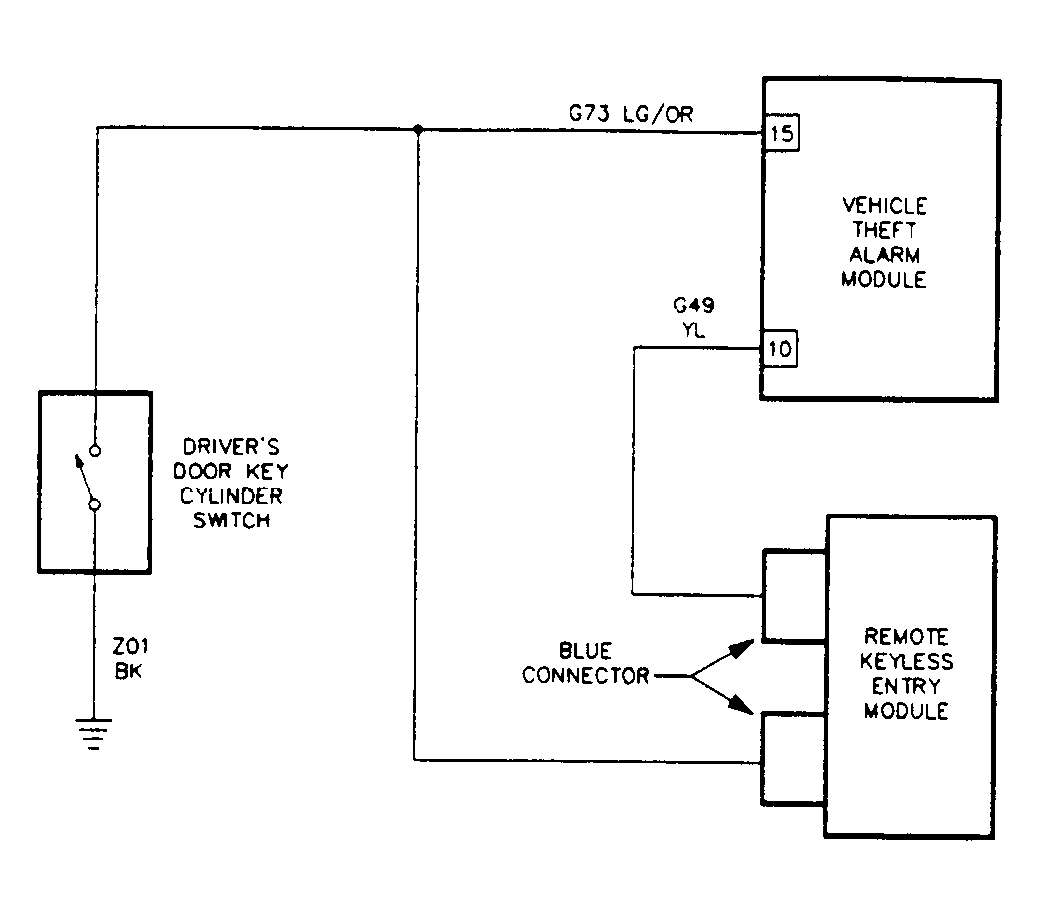

Fig 1: Test 40C: Circuit Diagram.

G91B11164

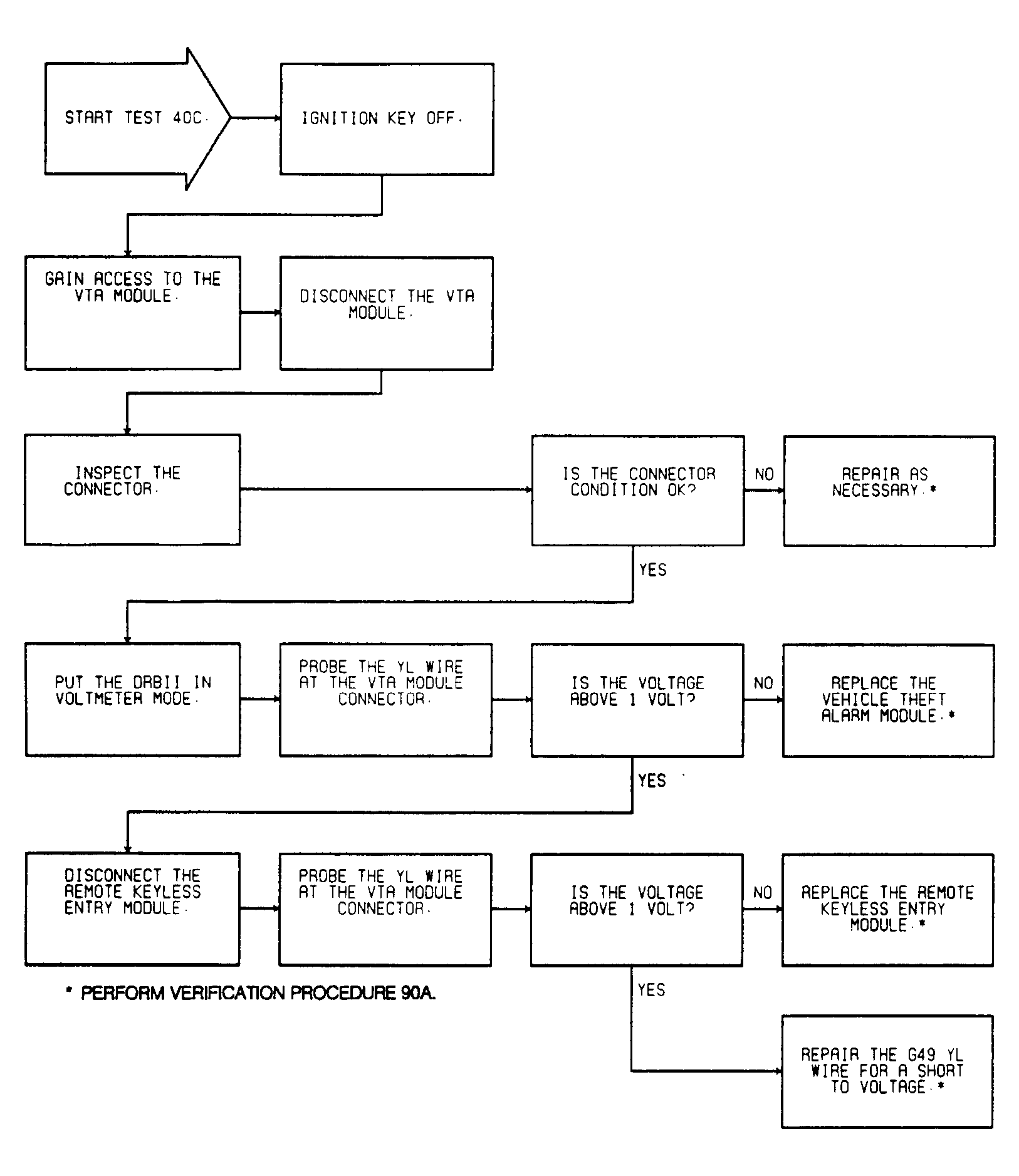

Fig 2: Test 40C: Theft Alarm Driver's Door Key Cylinder Switch

G91C11363
