Test 37B: Repairing Brake Pressure Warning Light Problem Without Abs

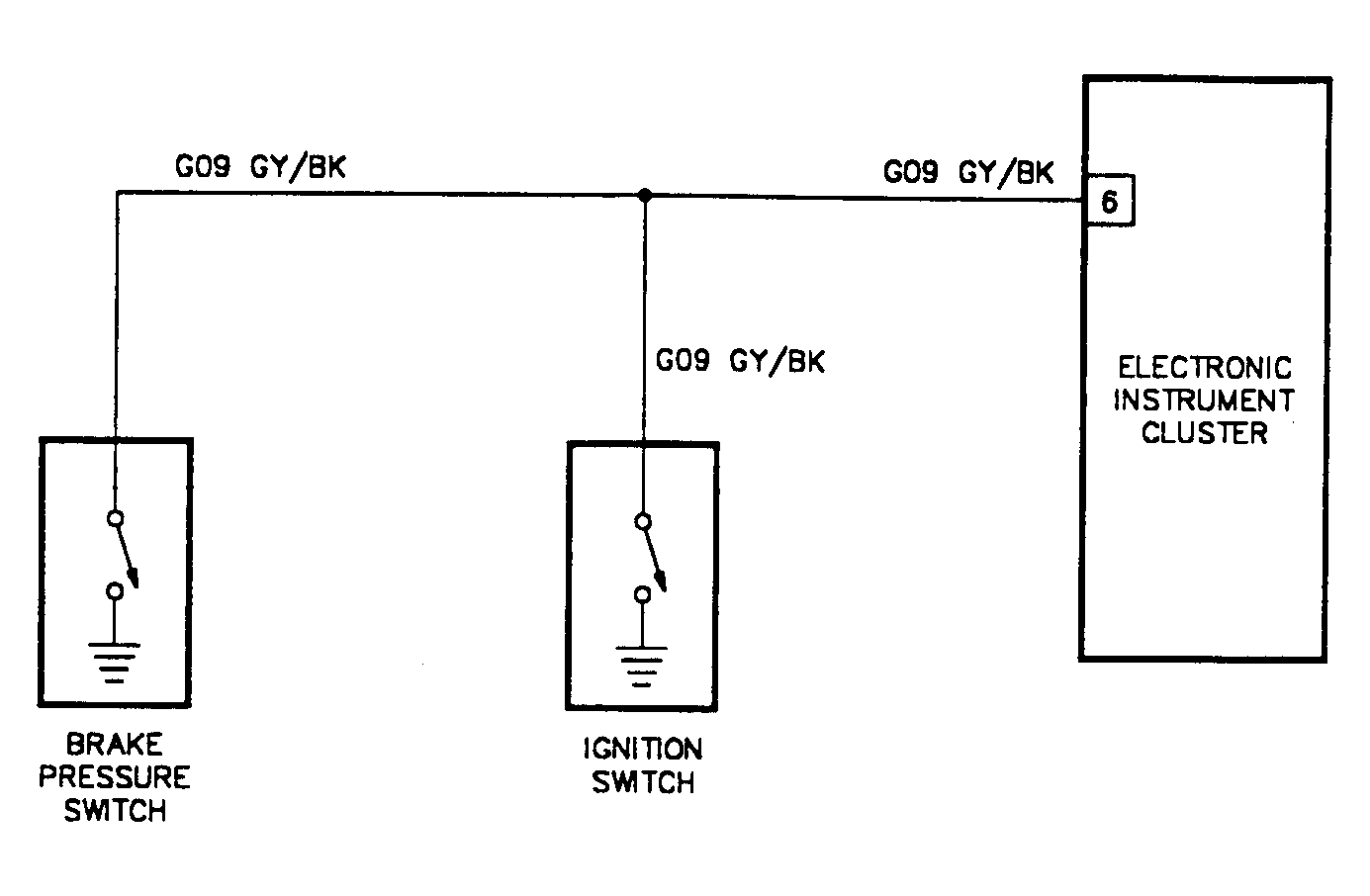

Fig 1: Test 37B: Circuit Diagram.
G91H11160

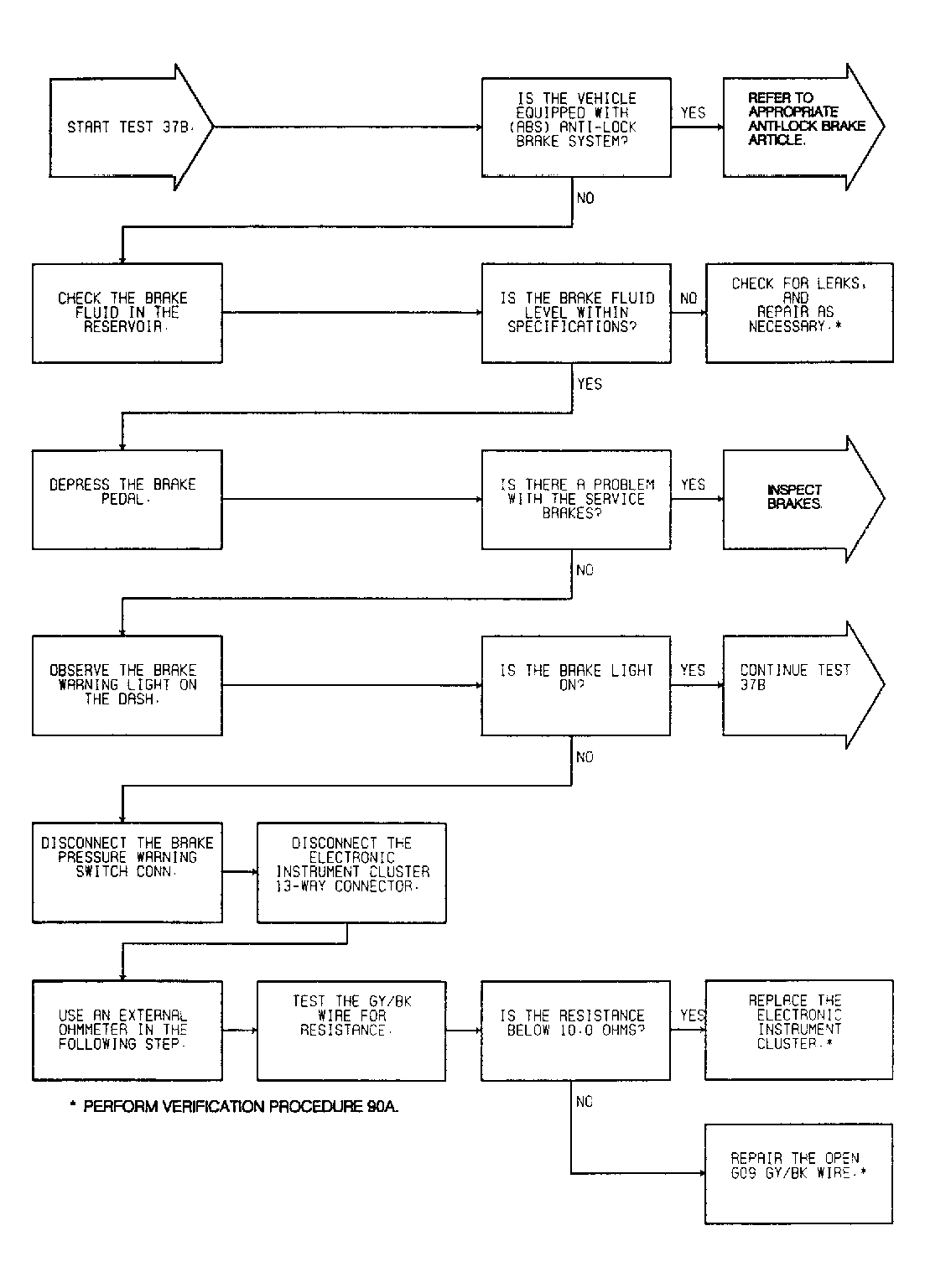

Fig 2: Test 37B: Brake psi Warning Light Problem W/O ABS (1 of 2)
G91D11216

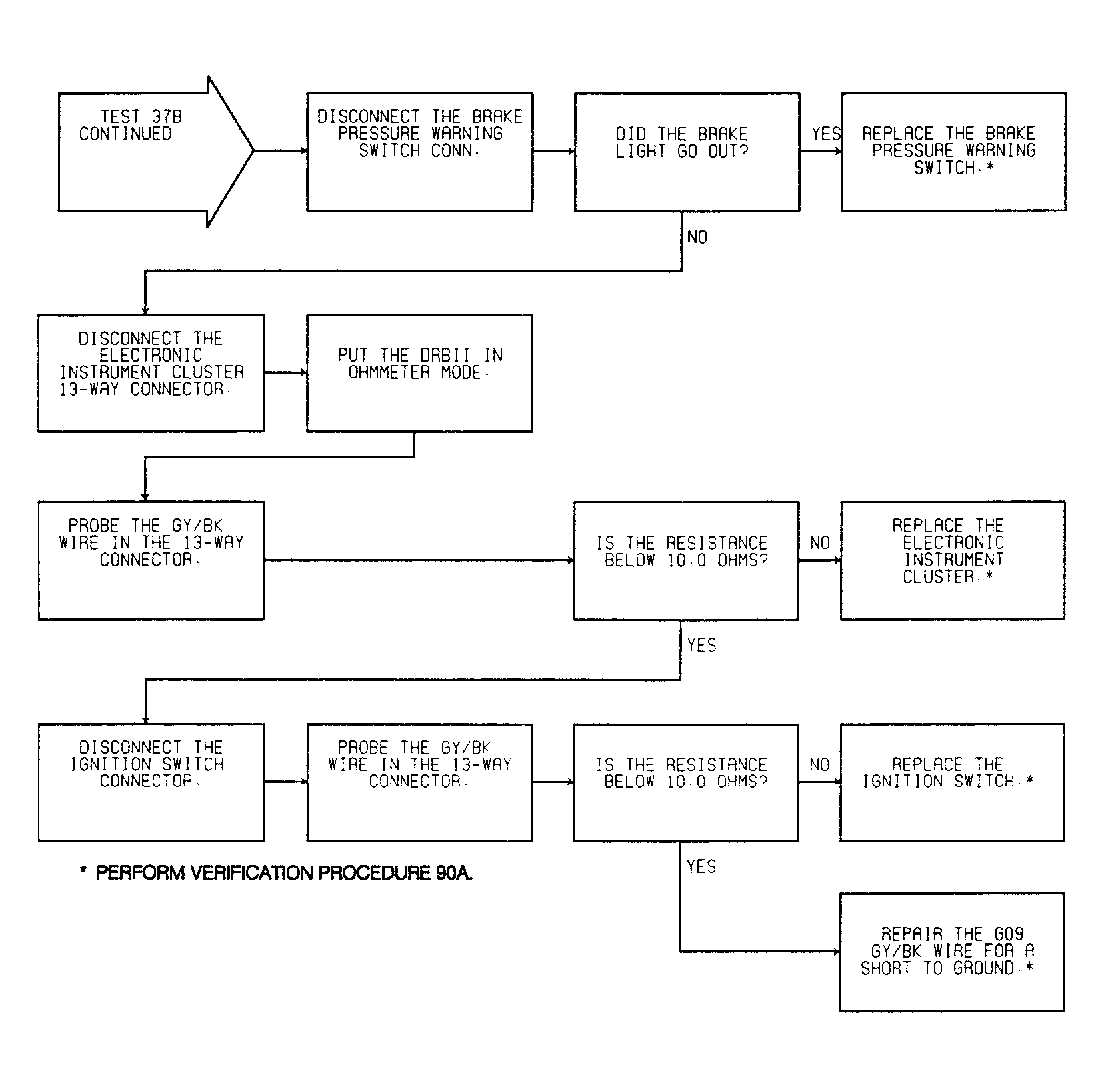

Fig 3: Test 37B: Brake psi Warning Light Problem W/O ABS (2 of 2)
G91E11217
