Test 49B: Body Controller No Response

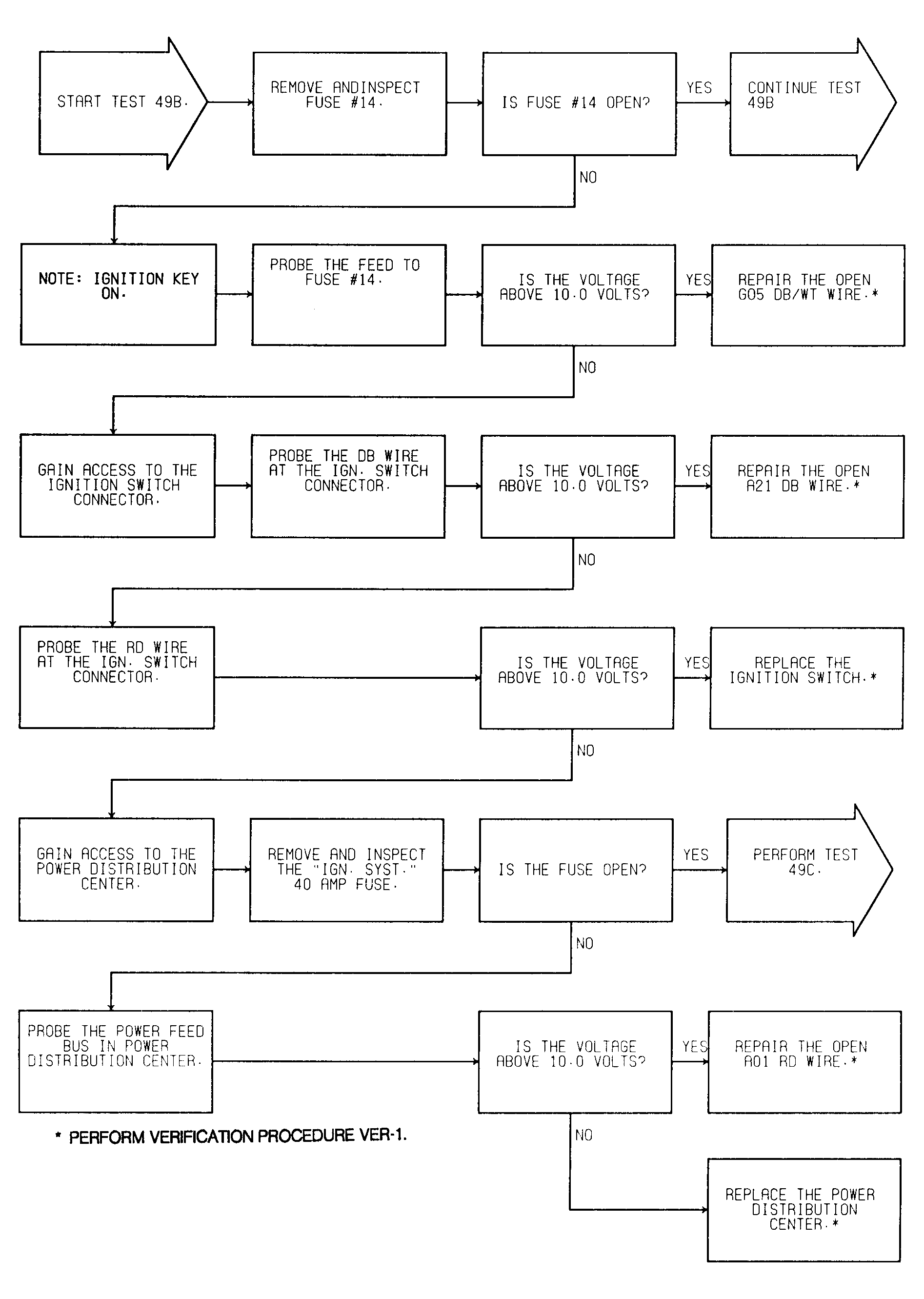

Fig 1: Test 49B: Body Controller No Response (1 of 2)

G91D11711

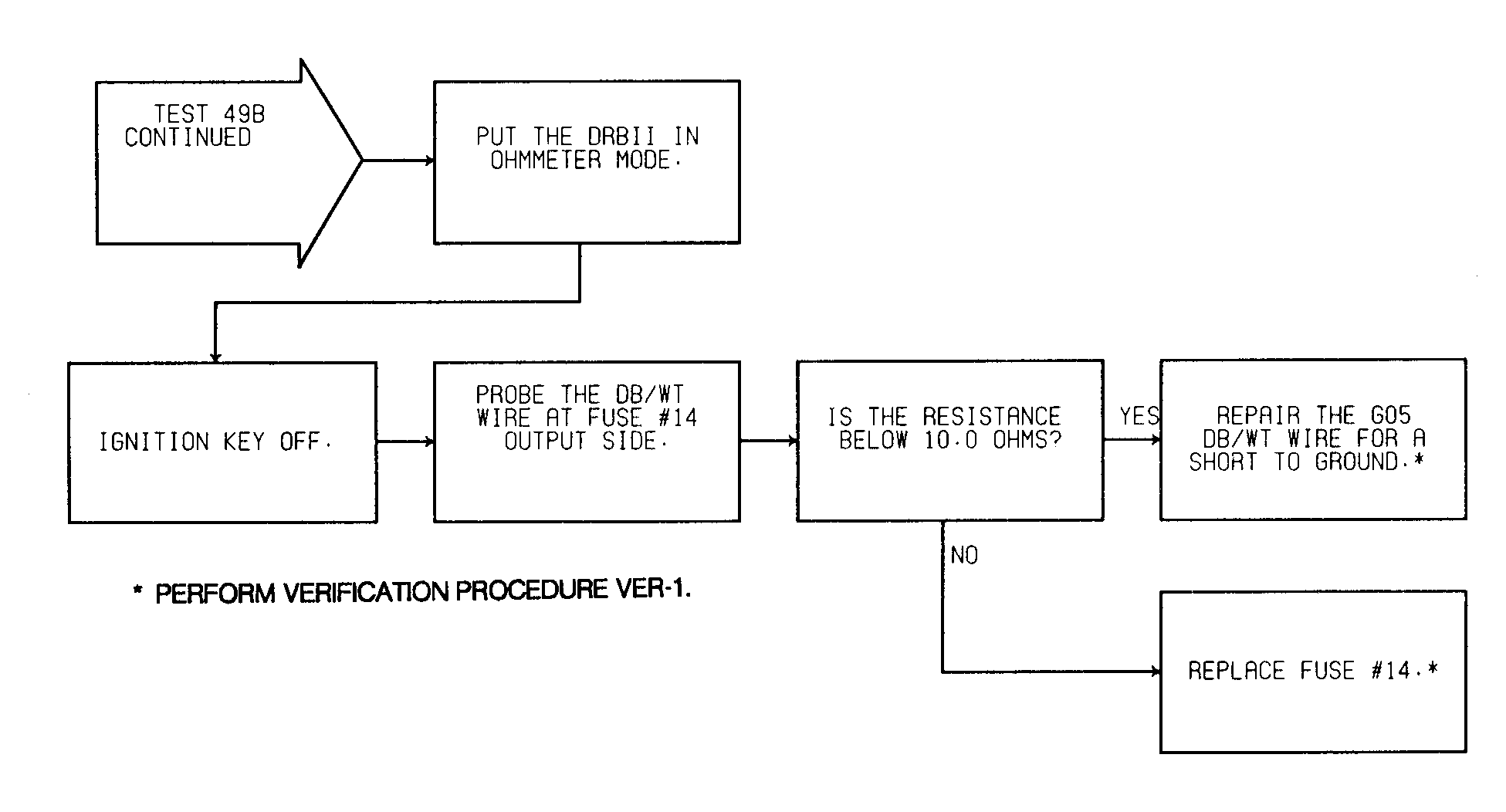

Fig 2: Test 49B: Body Controller No Response (2 of 2)

G91E11712
