Engine Controls - Tests W/Codes - Body Control Computer
>>
Vehicle Communications Charts
>>
Test 41A: Not Receiving Bus Messages Correctly
Test 41A: Not Receiving Bus Messages Correctly

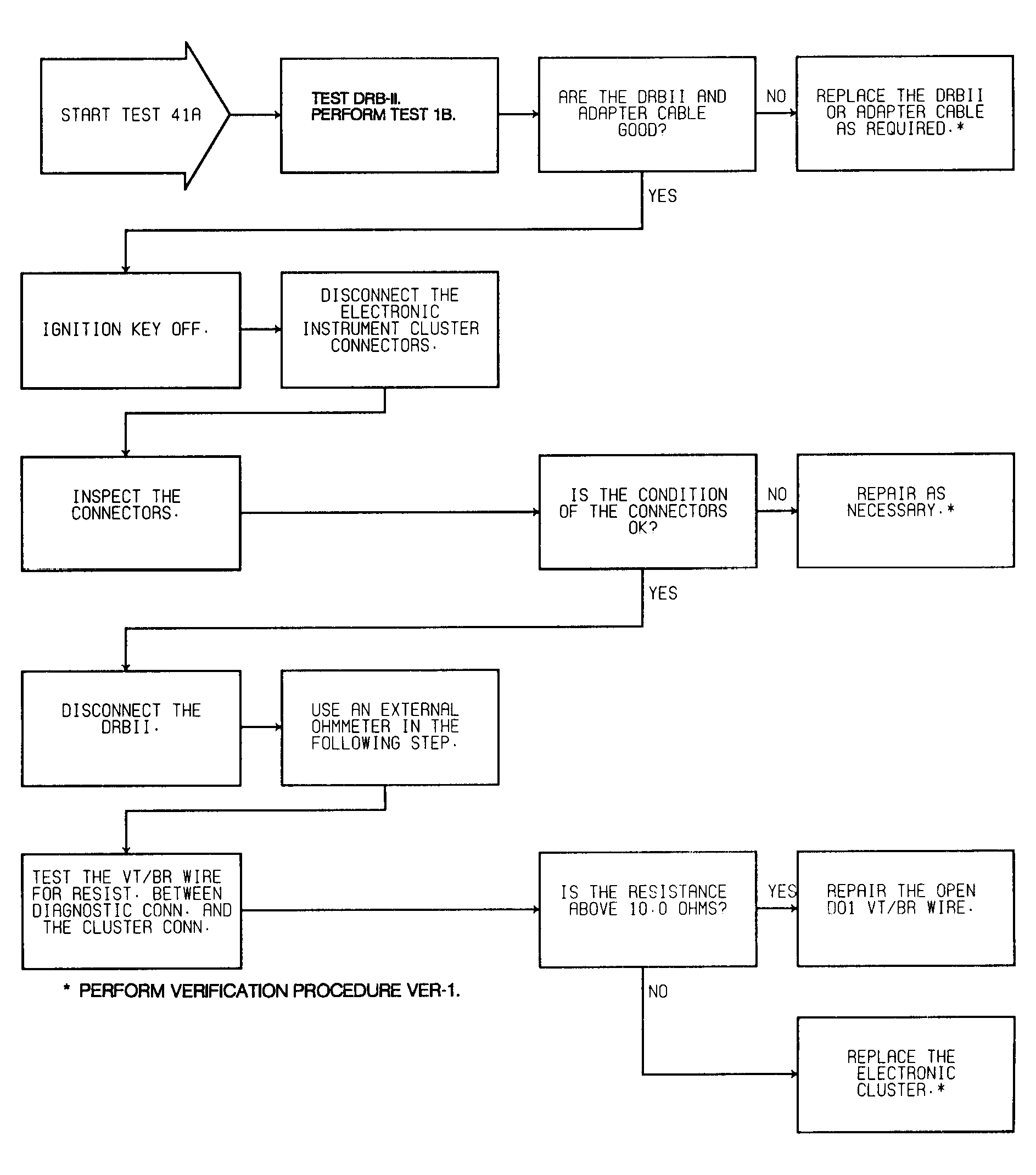

Fig 1: Test 41A: Not Receiving Bus Messages Correctly
