Test 36A: Bus Bias Level Too High

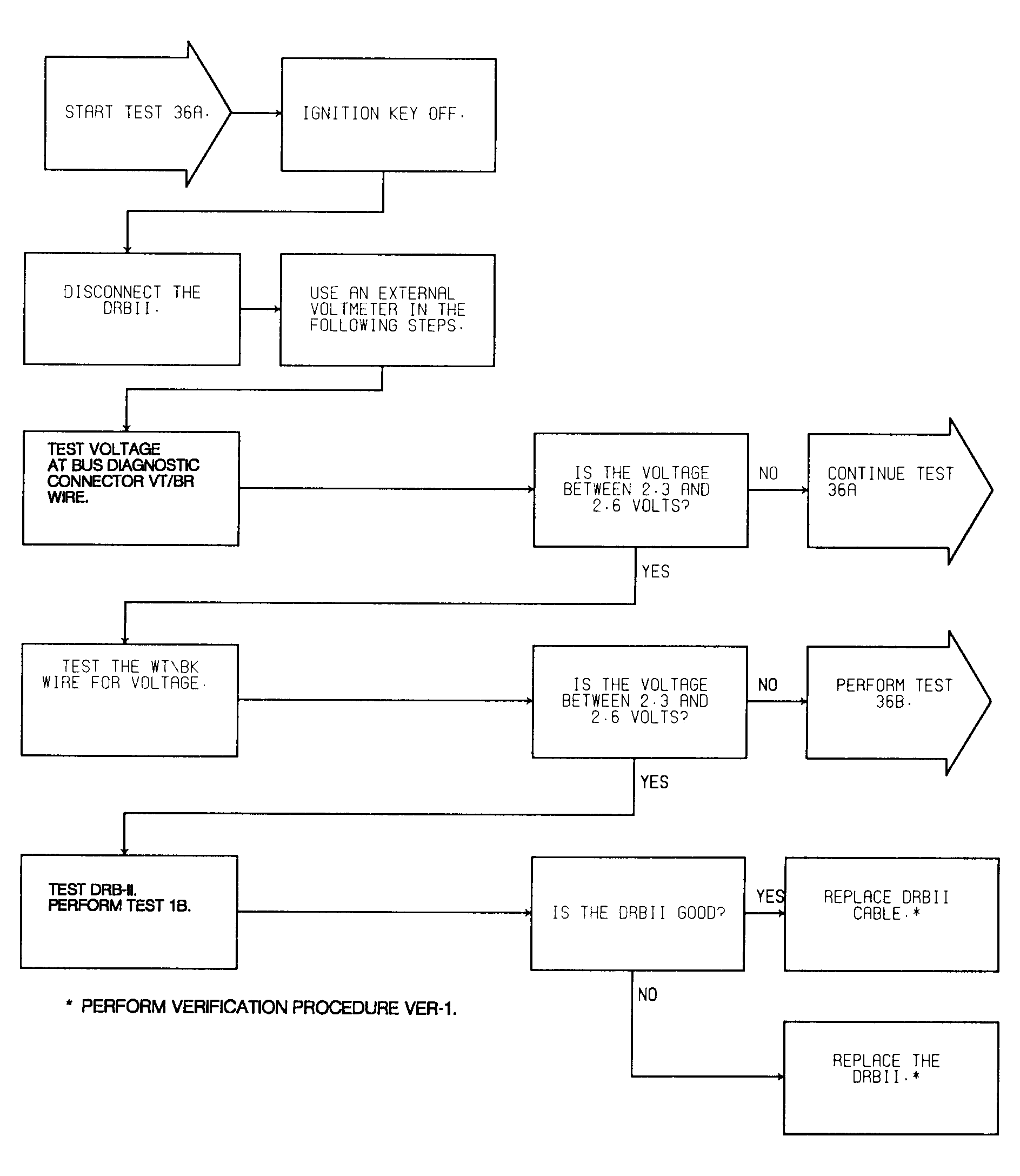

Fig 1: Test 36A: Bus Bias Level Too High (1 of 3)

G91A11684

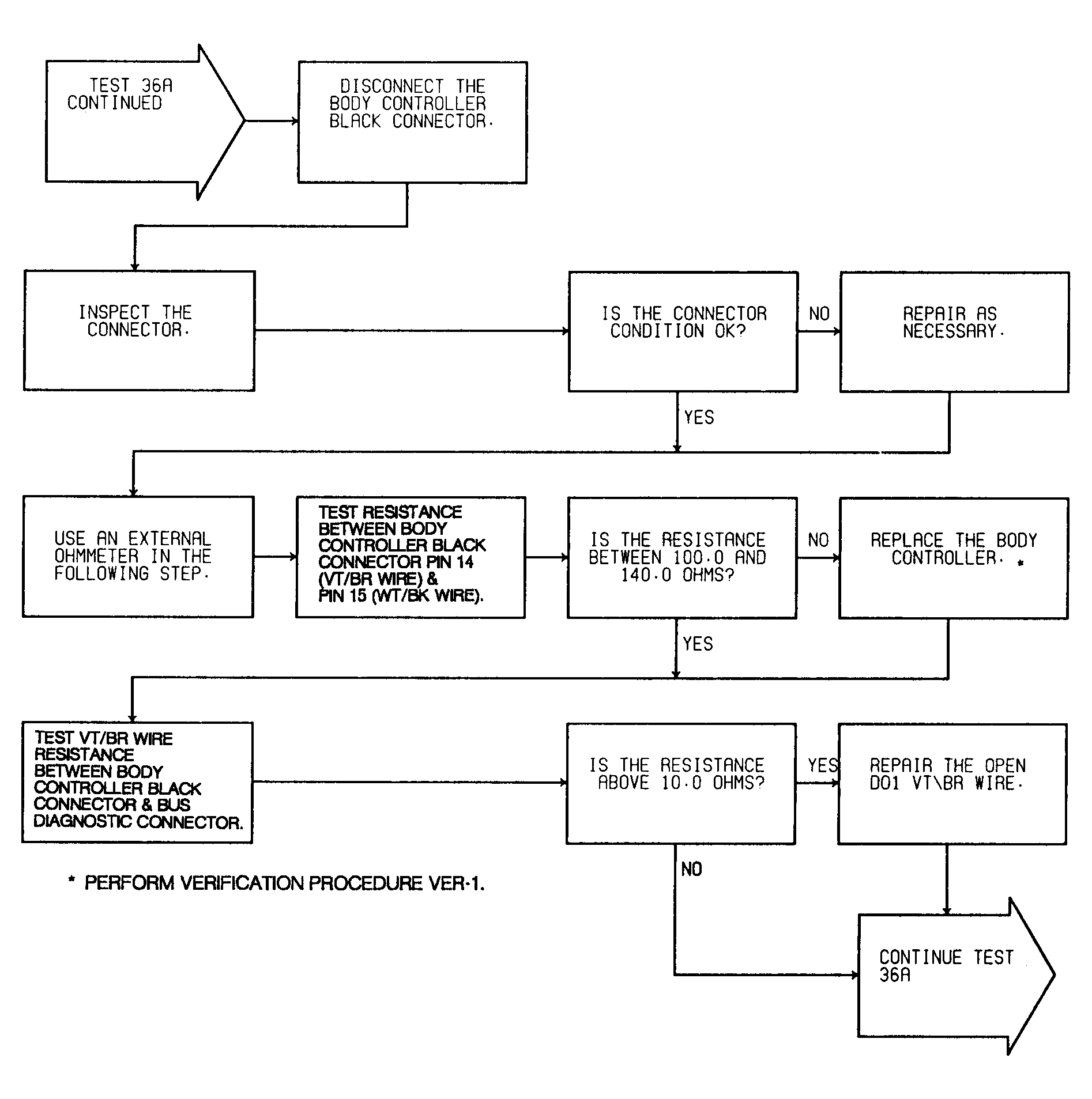

Fig 2: Test 36A: Bus Bias Level Too High (2 of 3)

G91B11685

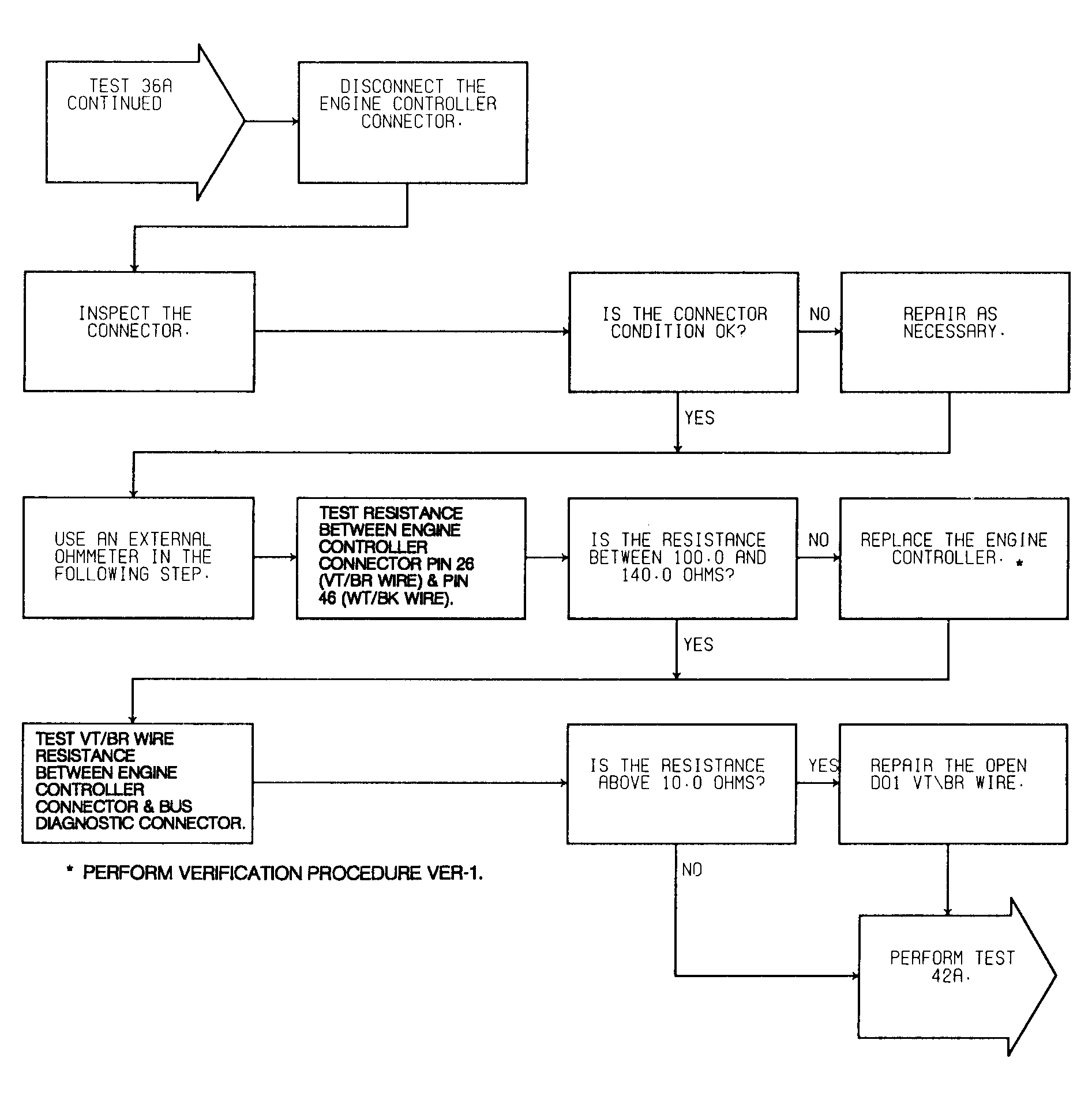

Fig 3: Test 36A: Bus Bias Level Too High (3 of 3)

G91C11686
