Test 59B: Body Controller's Signal & Switch's Continuity
Test 59B: Body Controller's Signal & Switch's Continuity

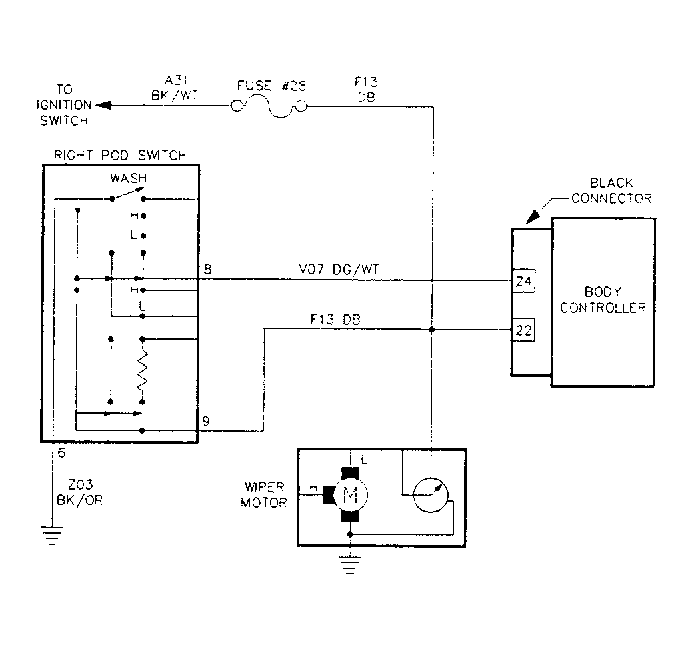

Fig 1: Test 59B: Circuit Diagram

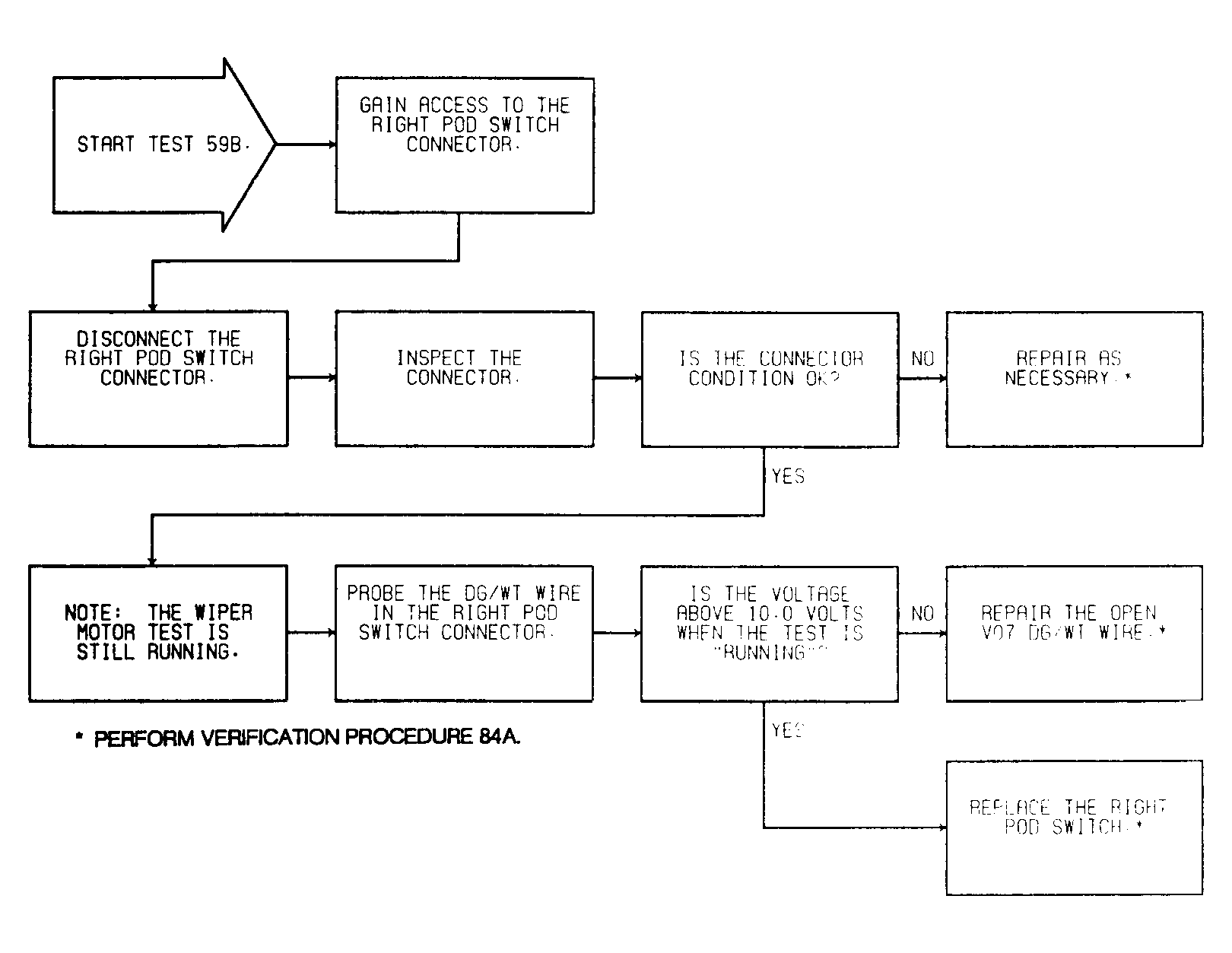

Fig 2: Test 59B: Body Controller's Signal & Switch's Continuity
