Test 56A: Headlight Doors Do Not Operate By Headlight Switch
Test 56A: Headlight Doors Do Not Operate By Headlight Switch

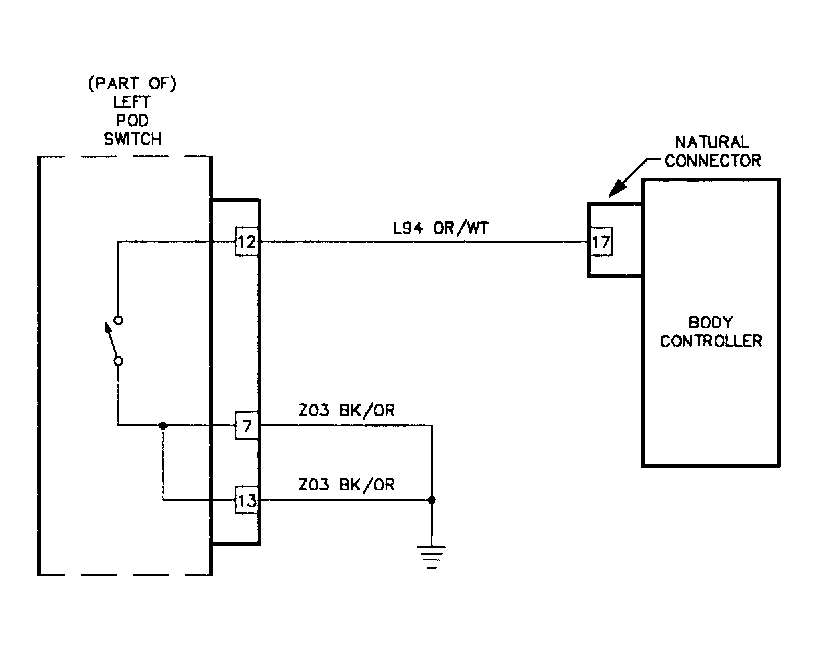

Fig 1: Test 56A: Circuit Diagram

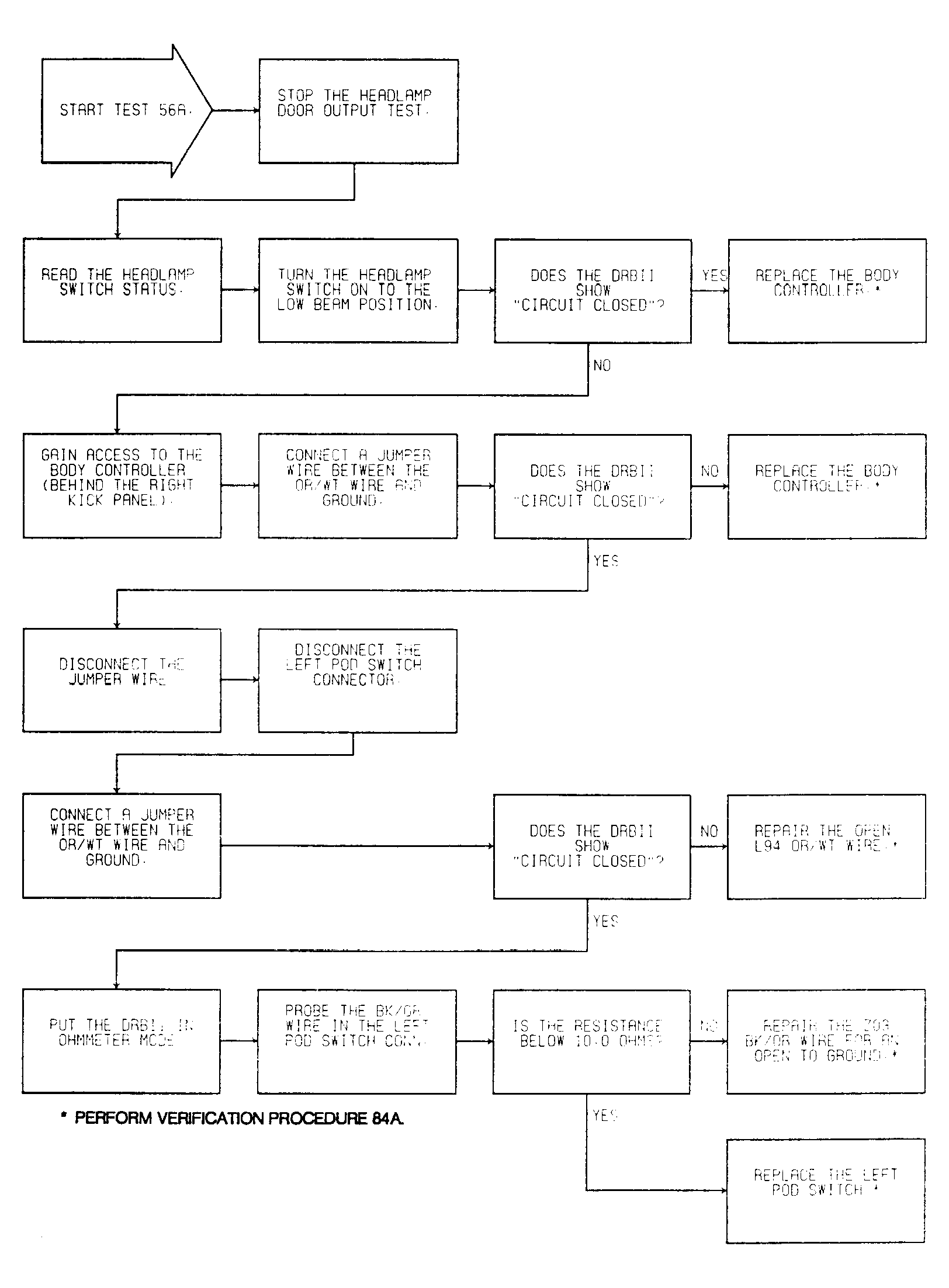

Fig 2: Test 56A: Hdlt Doors Do Not Operate by Headlight Switch
