Test 52B: Diagnosing Headlight Doors System

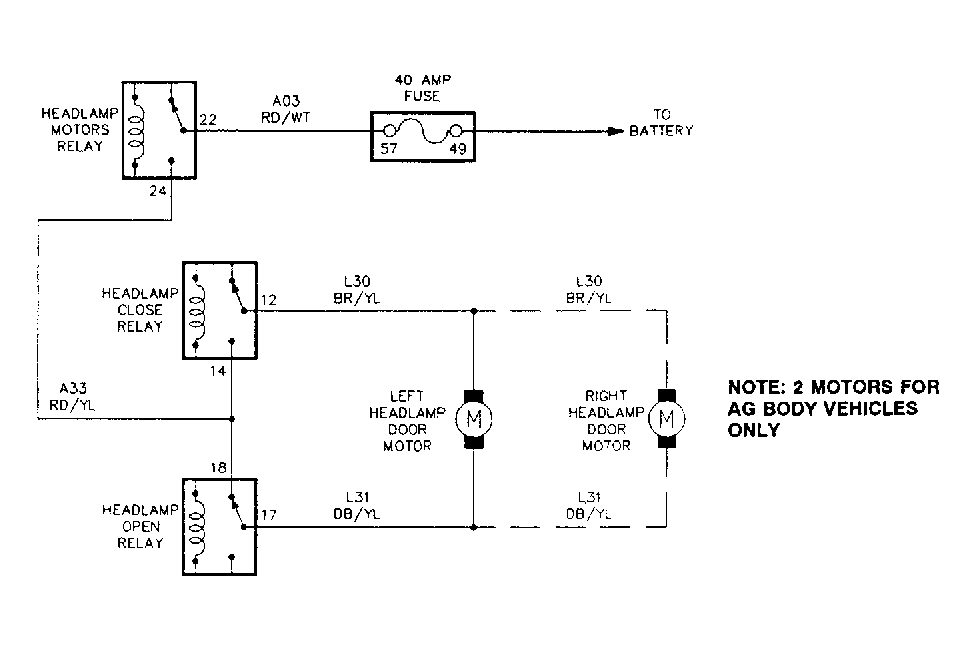

Fig 1: Test 52B: Circuit Diagram

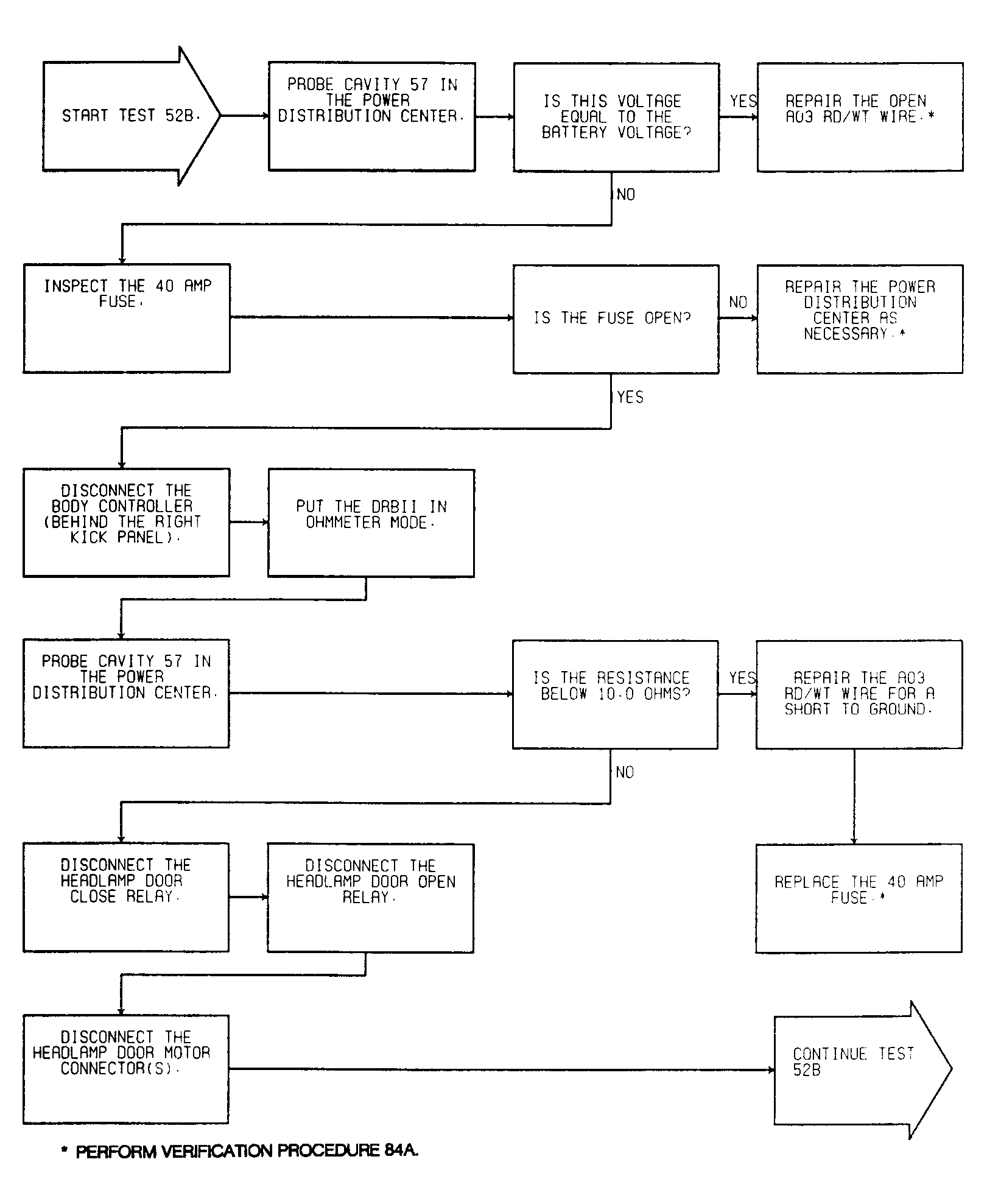

Fig 2: Test 52B: Diagnosing Headlight Doors System (1 of 3)

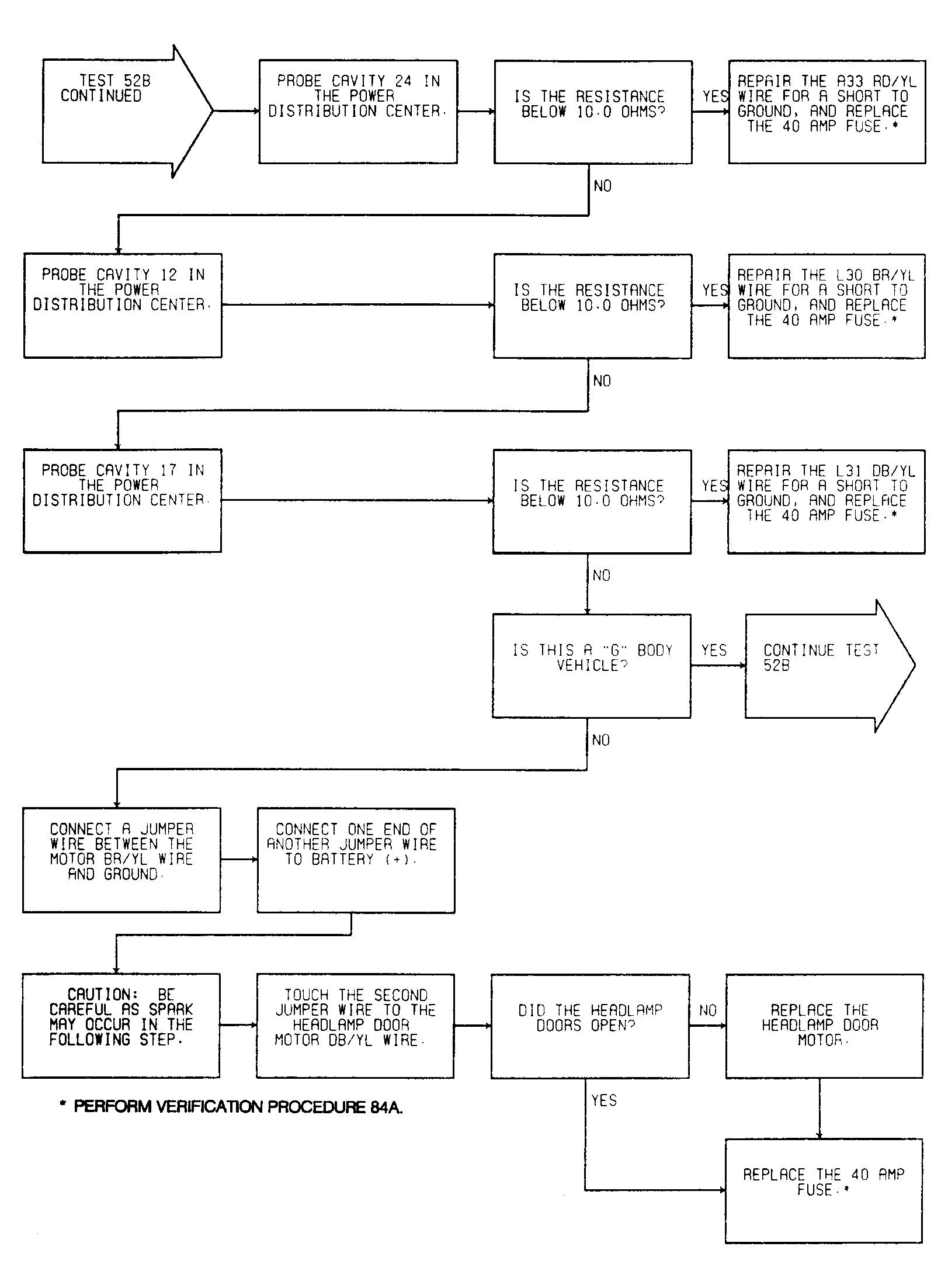

Fig 3: Test 52B: Diagnosing Headlight Doors System (2 of 3)

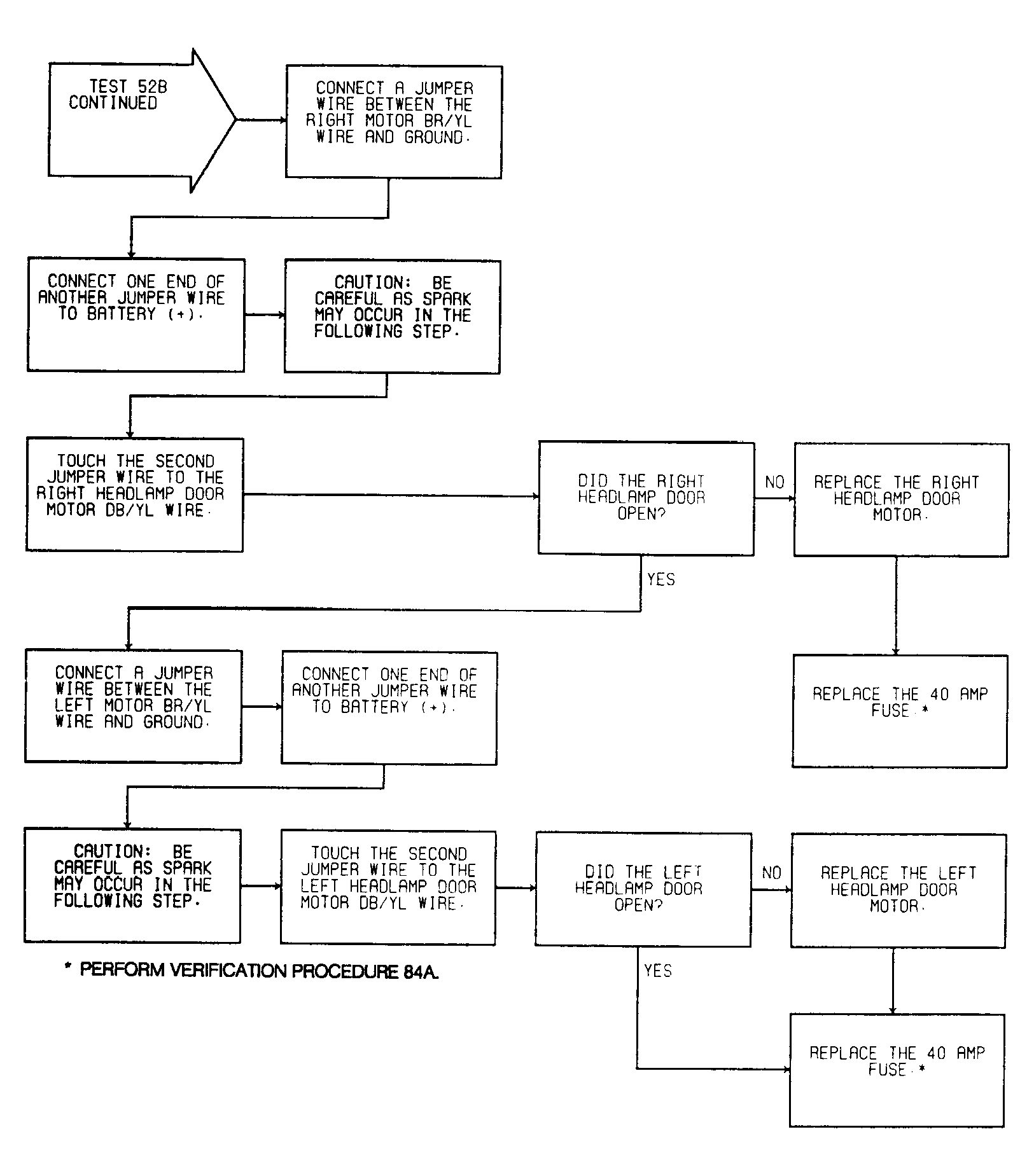

Fig 4: Test 52B: Diagnosing Headlight Doors System (3 of 3)
