Test 50B: Left Front Door Key Cylinder Switch, Unarmed

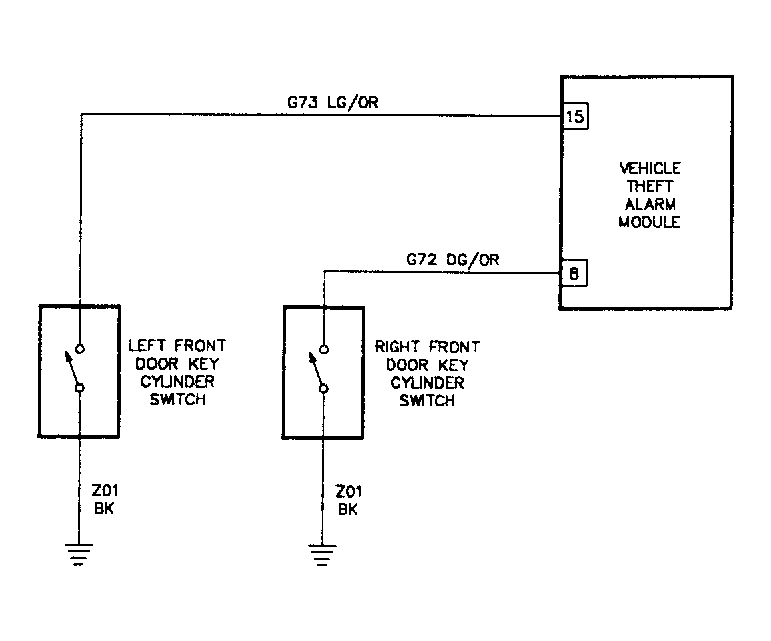

Fig 1: Test 50B: L/F Door Circuit Diagram

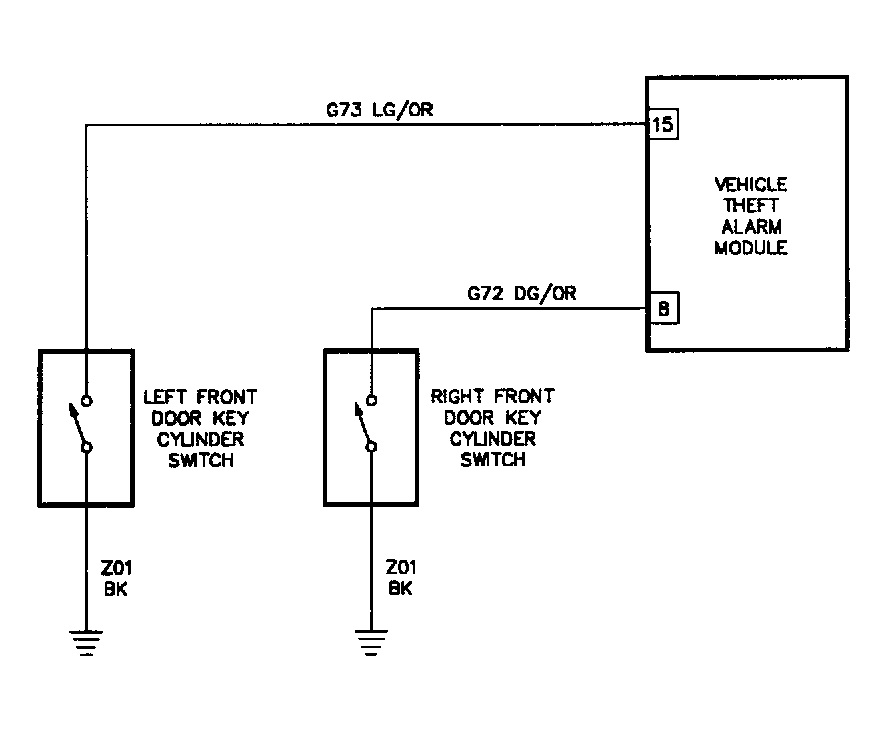

Fig 2: Test 50B: L/F & R/F Door Circuit Diagram.

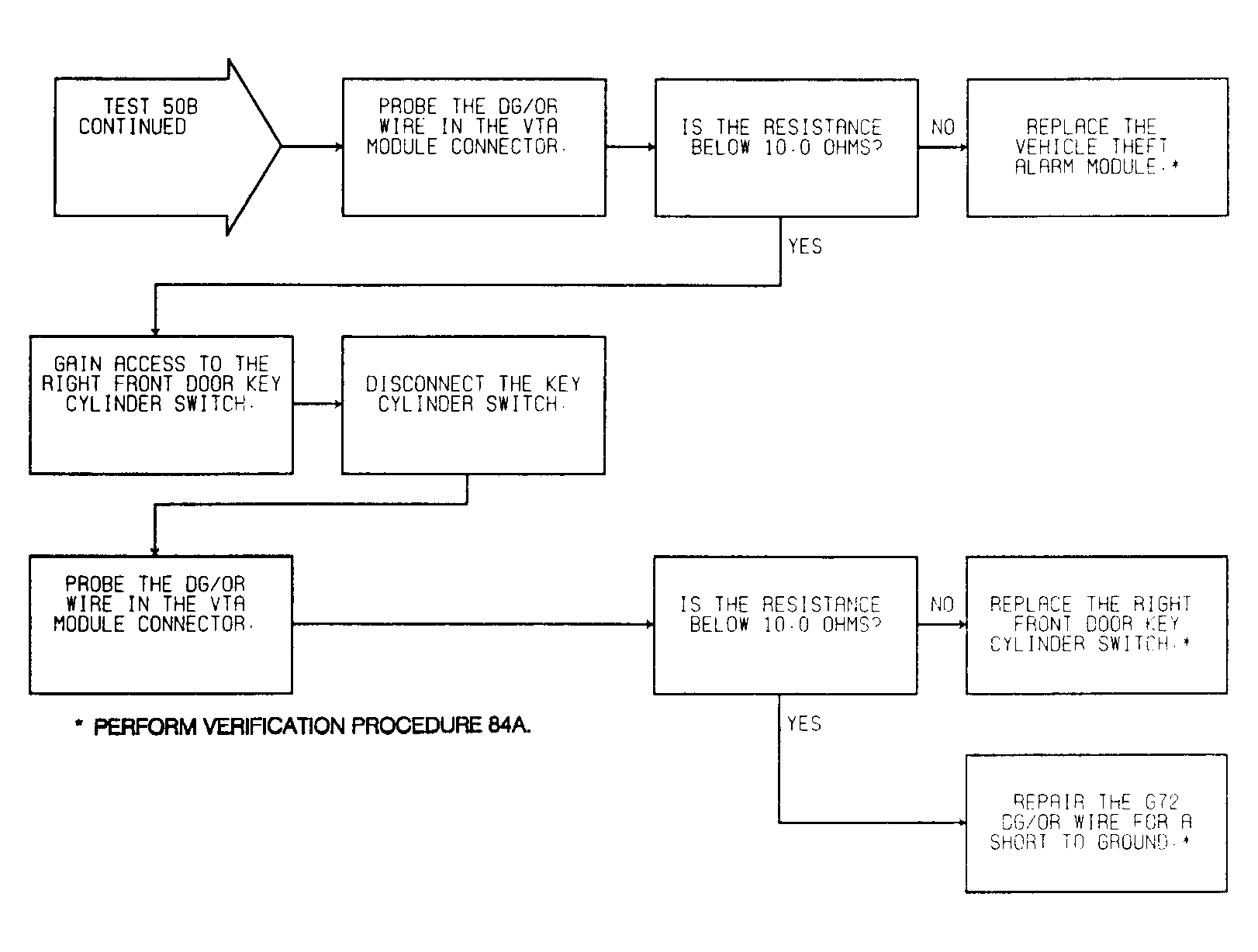

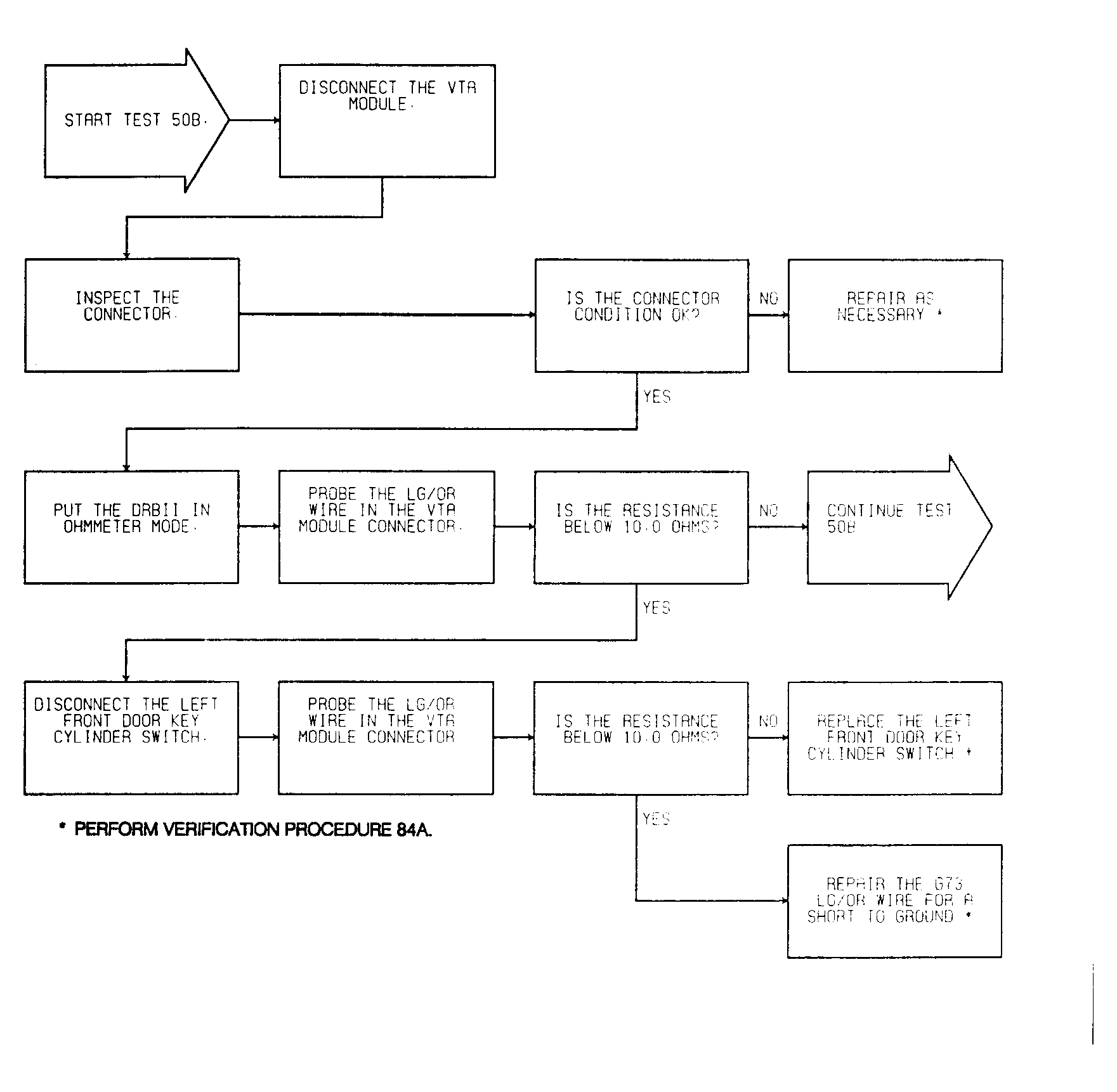

Fig 3: Test 50B: L/F Door Key Cylinder Switch, Unarmed (1 of 2)

Fig 4: Test 50B: L/F Door Key Cylinder Switch, Unarmed (2 of 2)
