Test 44B: Trunk Key Cylinder Sense Switch/Horn
Test 44B: Trunk Key Cylinder Sense Switch/Horn

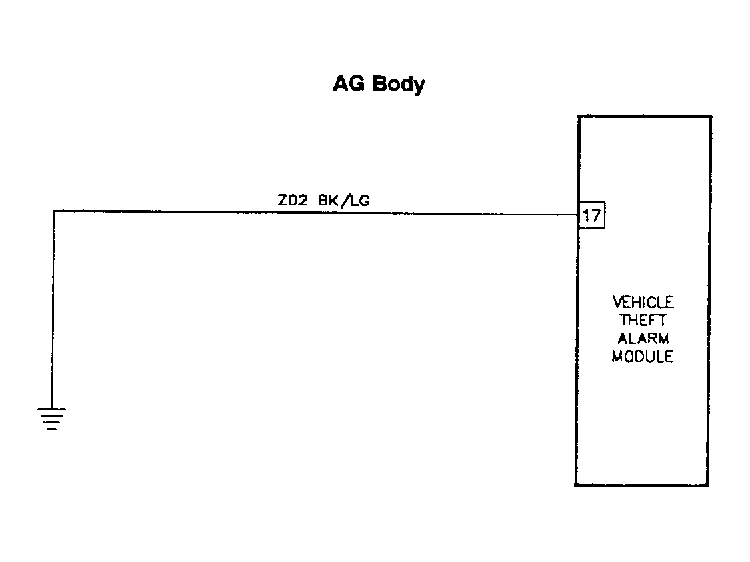

Fig 1: Test 44B: Circuit Diagram

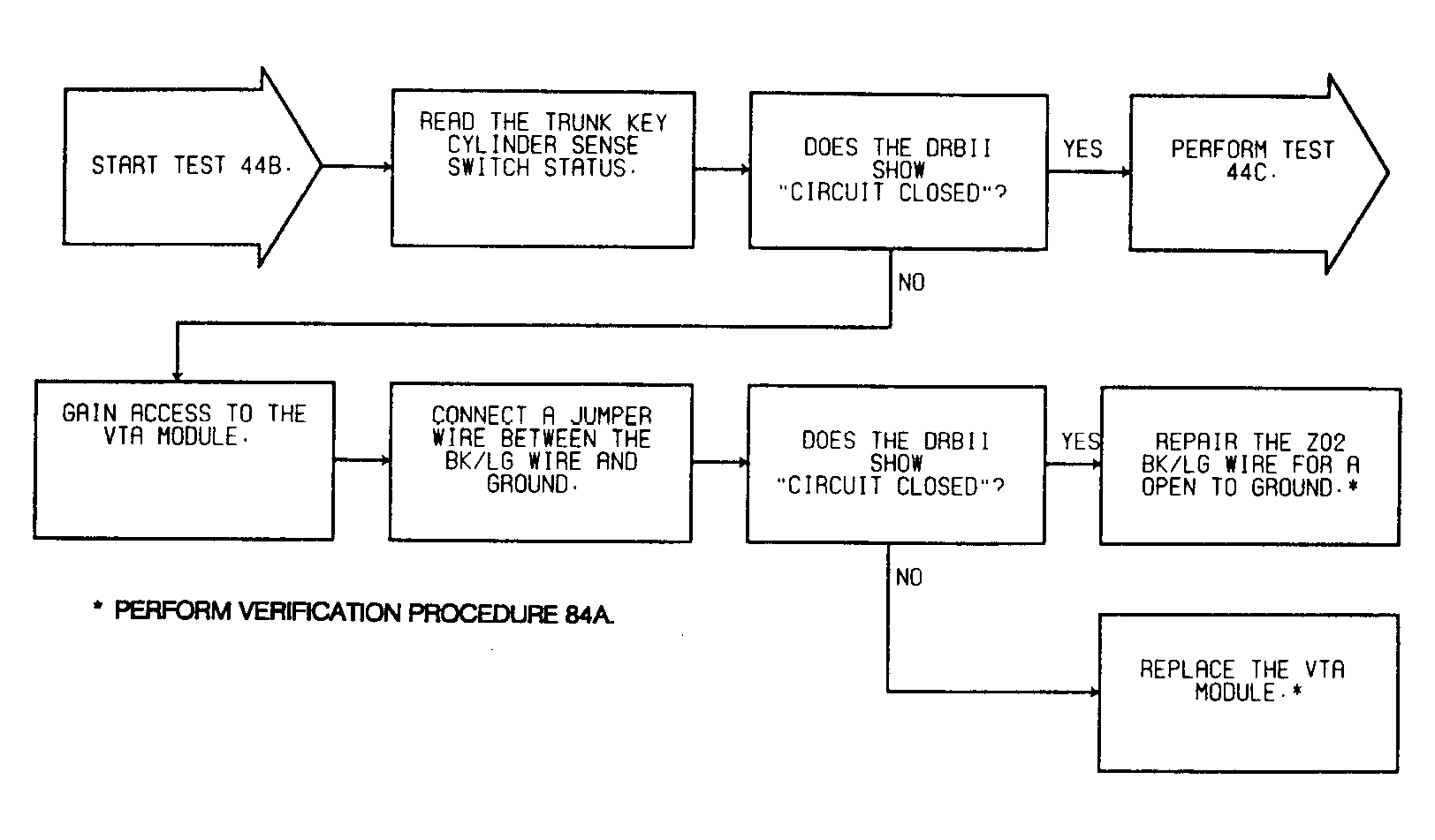

Fig 2: Test 44B: Trunk Key Cylinder Sense Switch/Horn
