Test 43A: Theft Alarm Ignition Run/Acc Circuit

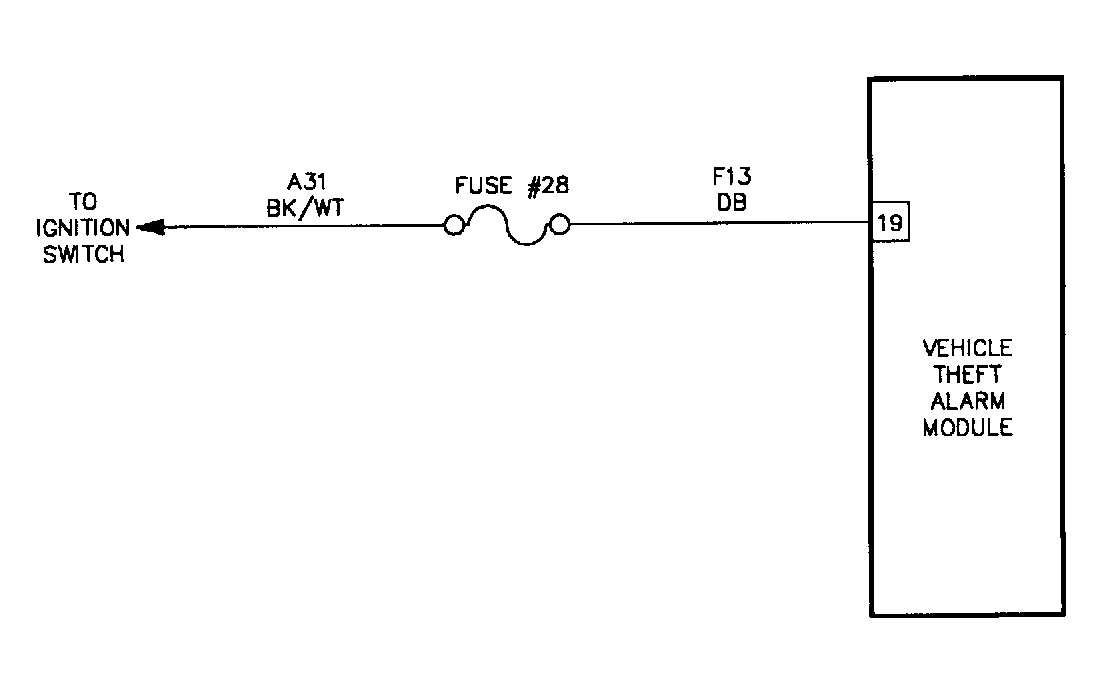

Fig 1: Test 43A: Circuit Diagram

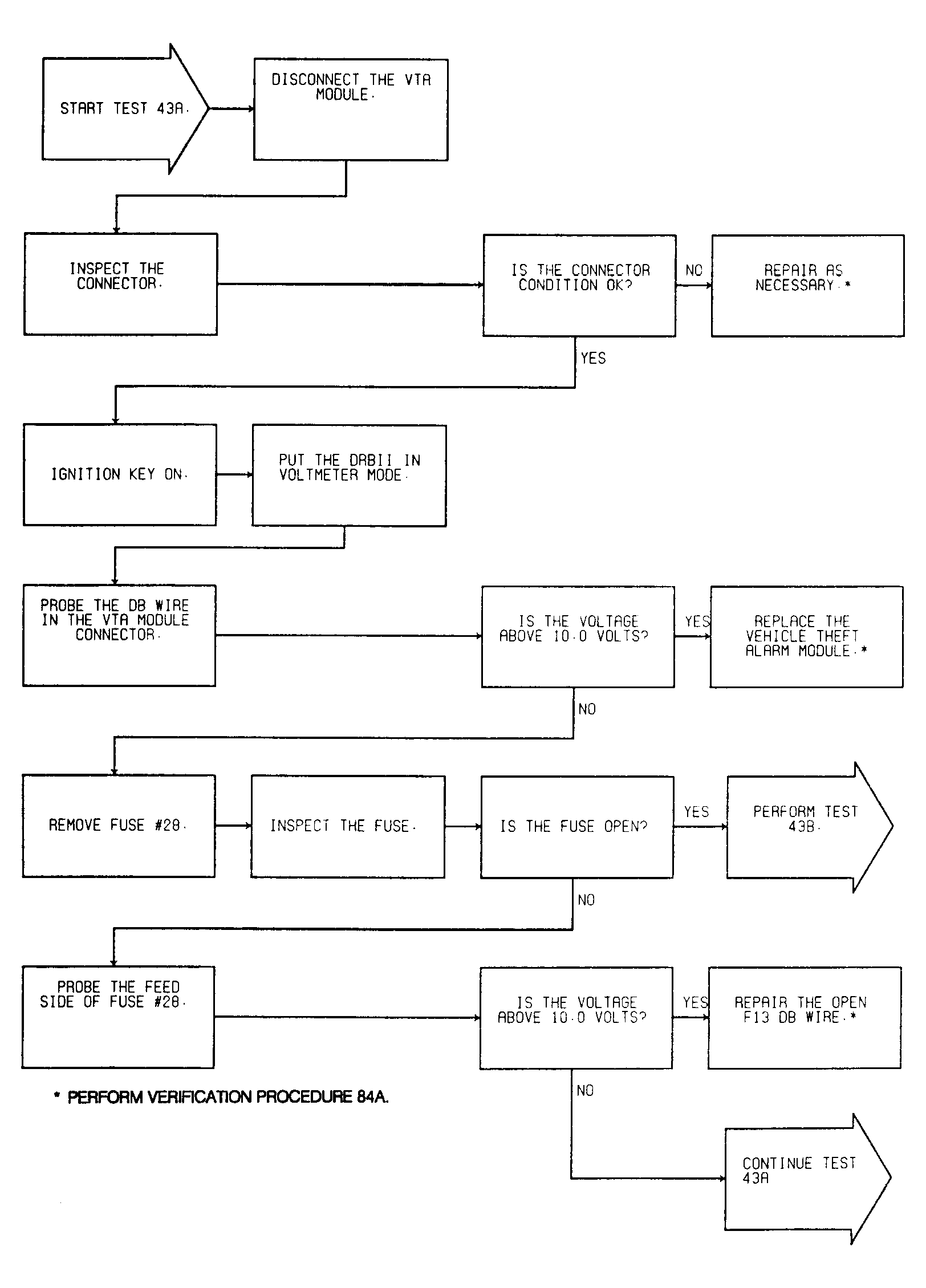

Fig 2: Test 43A: Theft Alarm Ignition RUN/ACC Circuit (1 of 2)

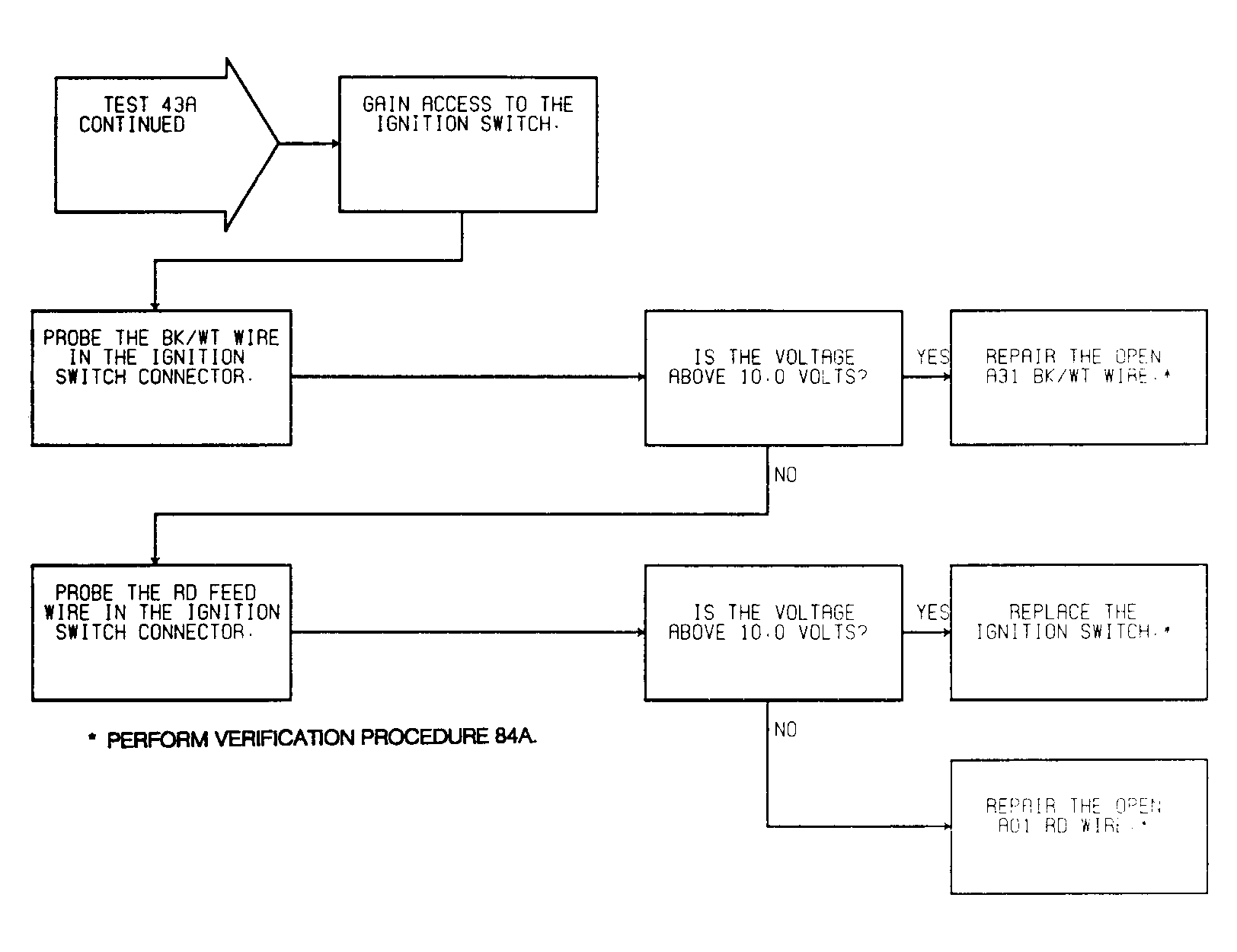

Fig 3: Test 43A: Theft Alarm Ignition RUN/ACC Circuit (2 of 2)
