Test 42A: Diagnosing Theft Alarm Ignition Input

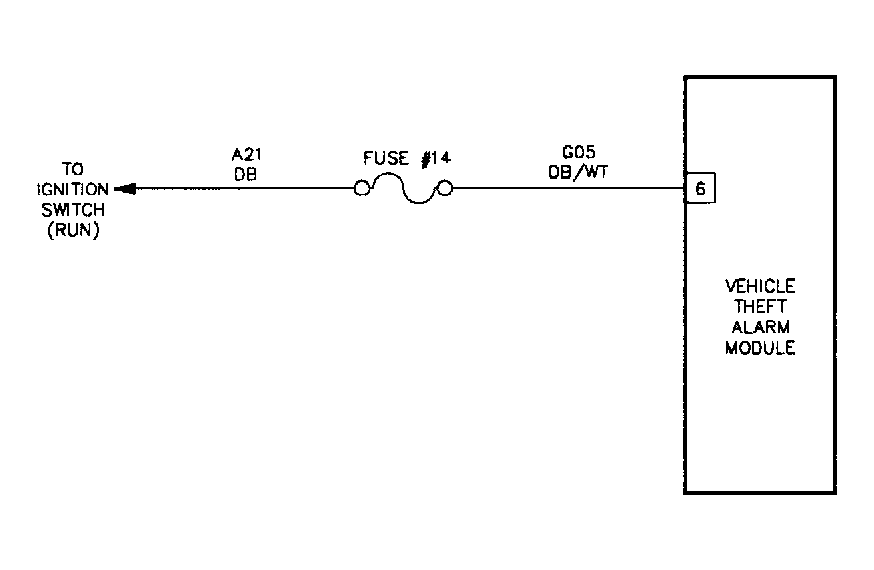

Fig 1: Test 42A: Circuit Diagram

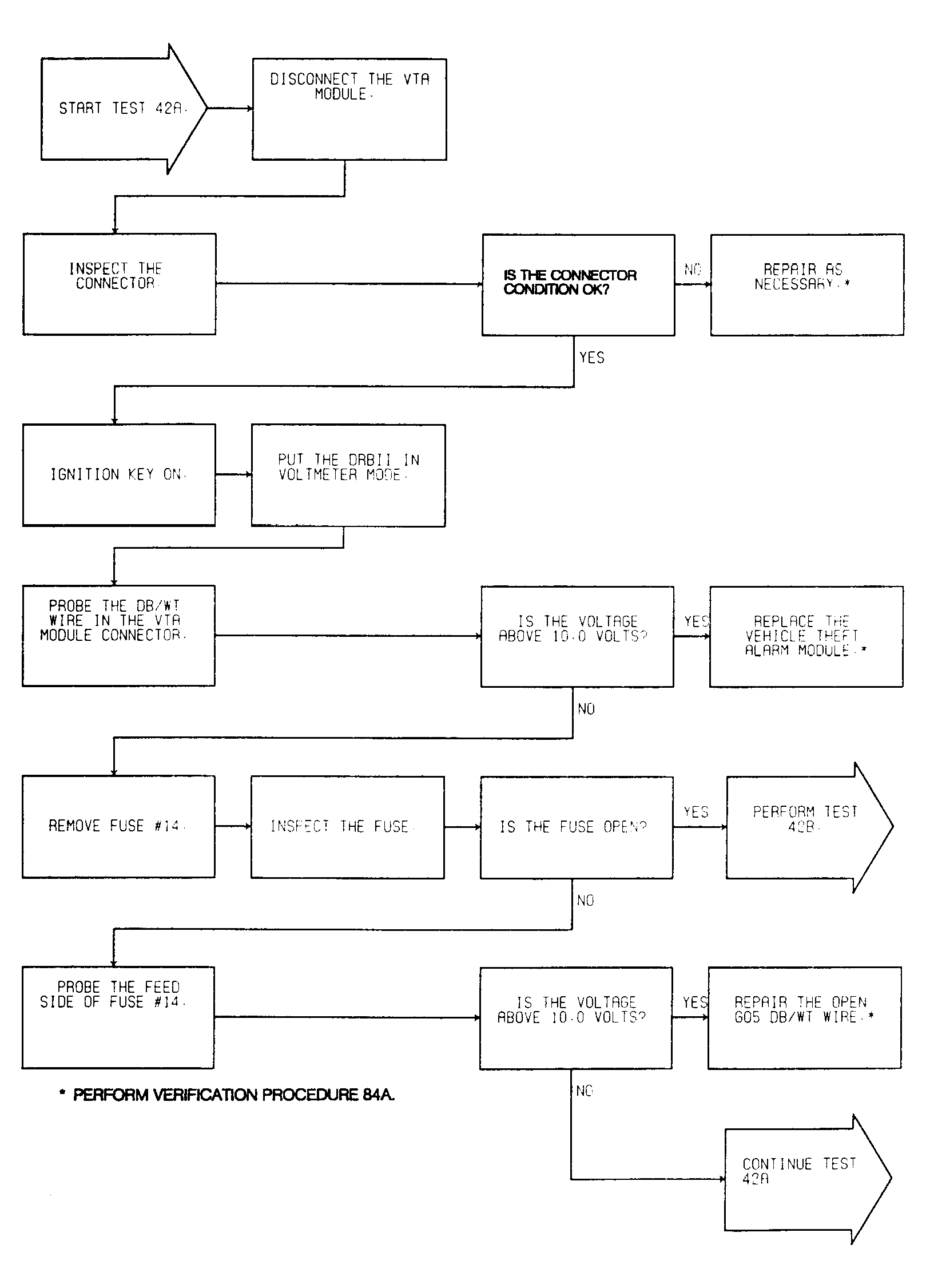

Fig 2: Test 42A: Diagnosing Theft Alarm Ignition Input (1 of 2)

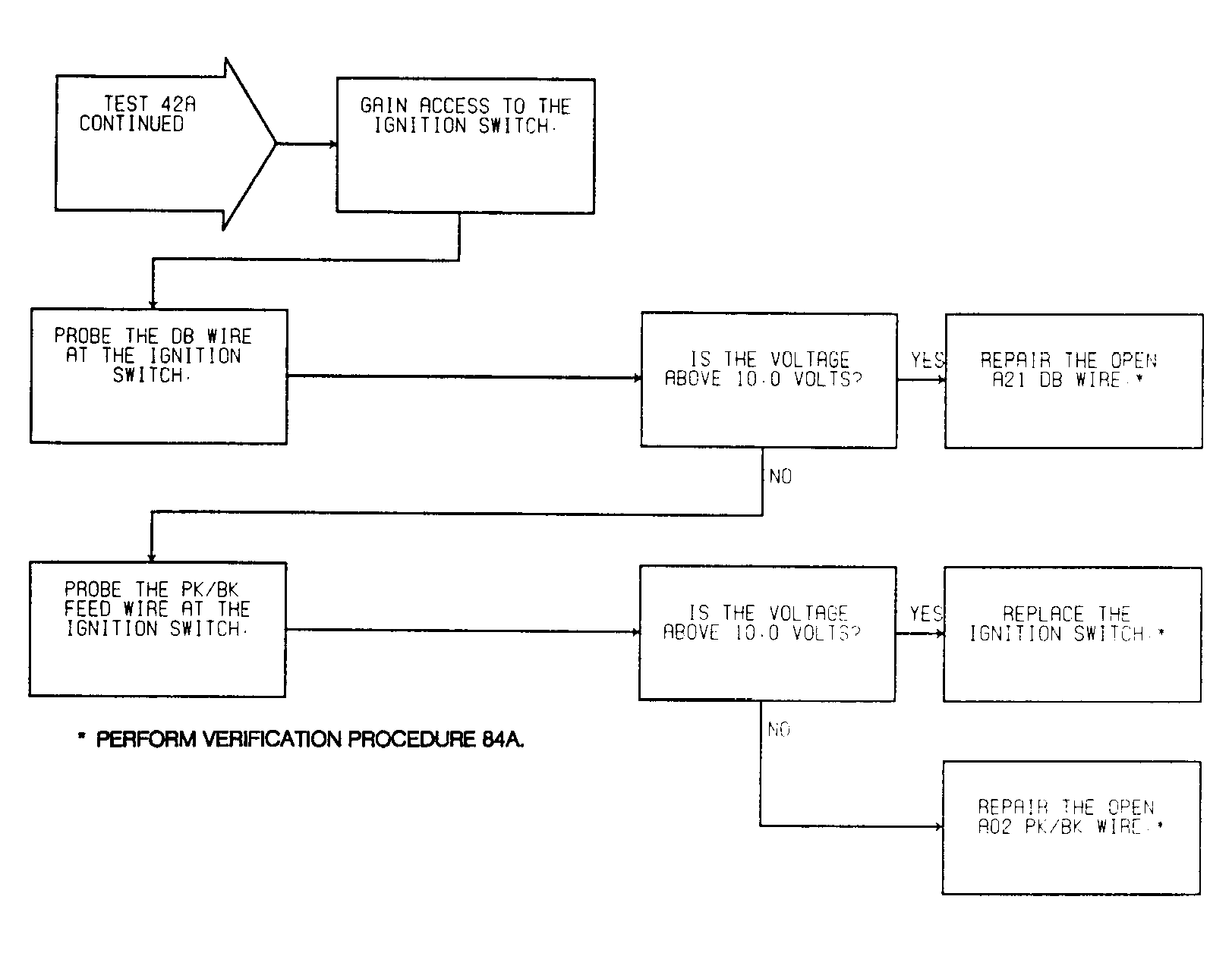

Fig 3: Test 42A: Diagnosing Theft Alarm Ignition Input (2 of 2)
