Engine Controls - Tests W/Codes - Body Control Computer
>>
Trouble Shooting Charts
>>
Test 37B: Repairing Faulty Warning Light Condition
Test 37B: Repairing Faulty Warning Light Condition

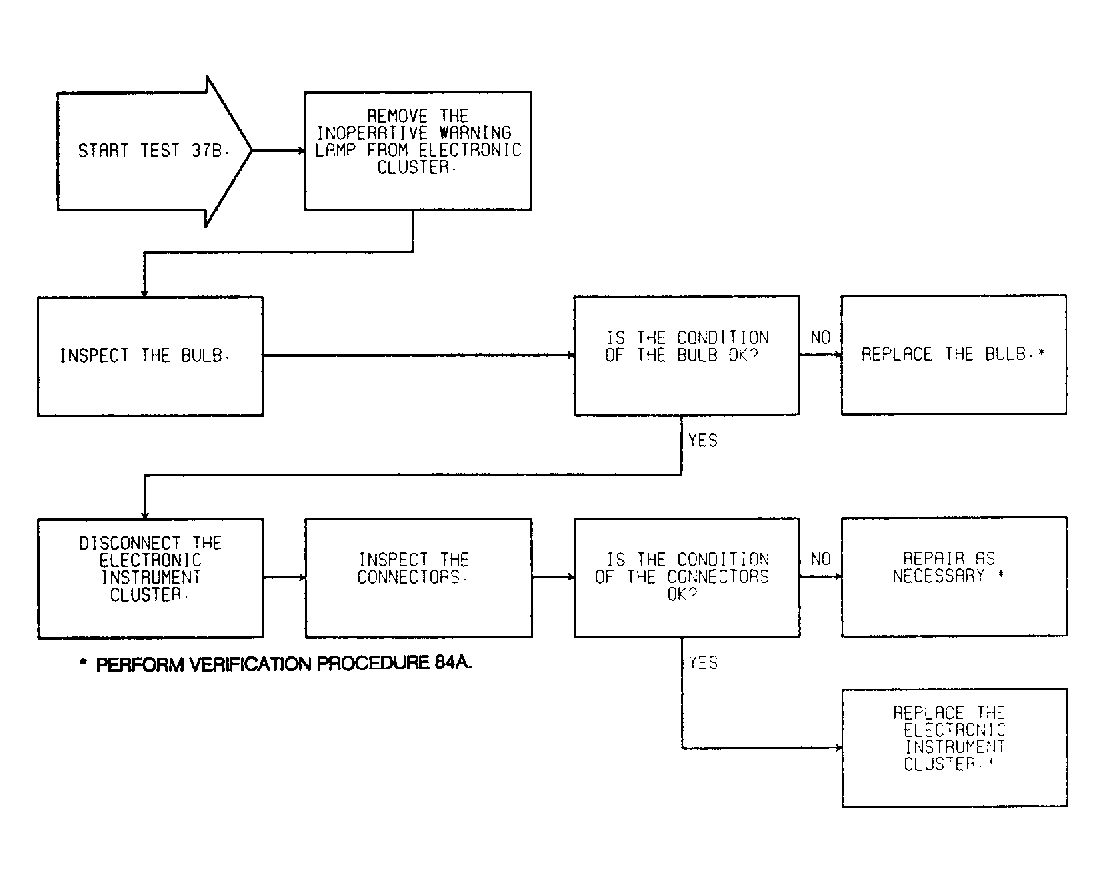

Fig 1: Test 37B: Repairing Faulty Warning Light Condition
