Test 34A: Electronic Cluster Problems Not Covered By Fault Codes
Test 34A: Electronic Cluster Problems Not Covered By Fault Codes

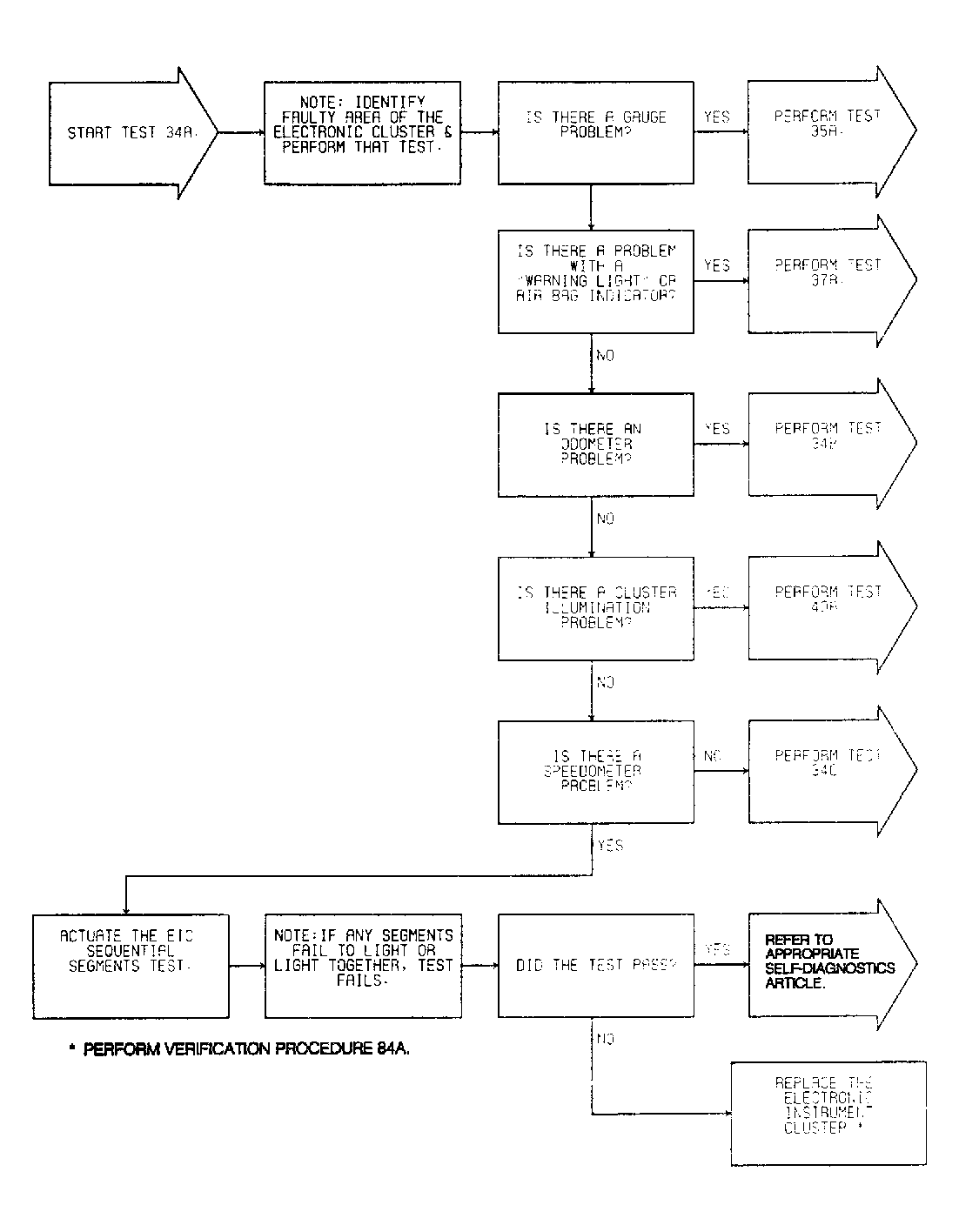

Fig 1: Test 34A: Cluster Problems Not Covered By Fault Codes
