Test 26A: Both Headlights Out

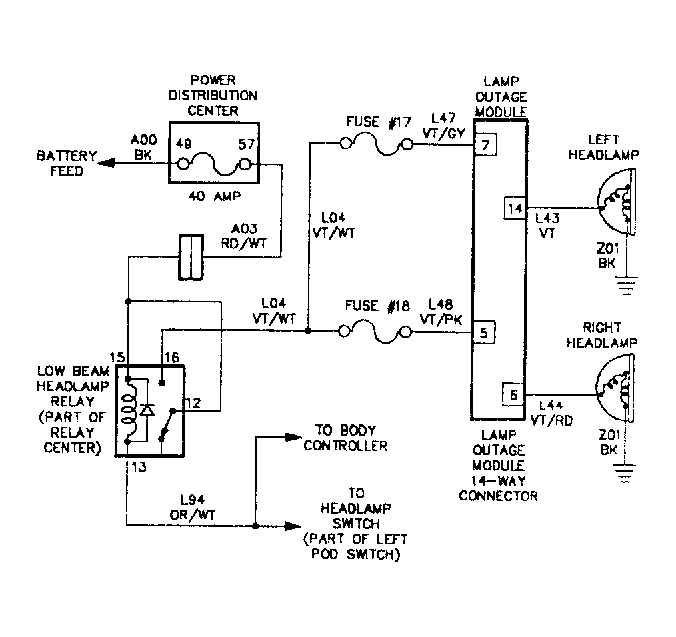

Fig 1: Test 26A: Circuit Diagram

G91J11436

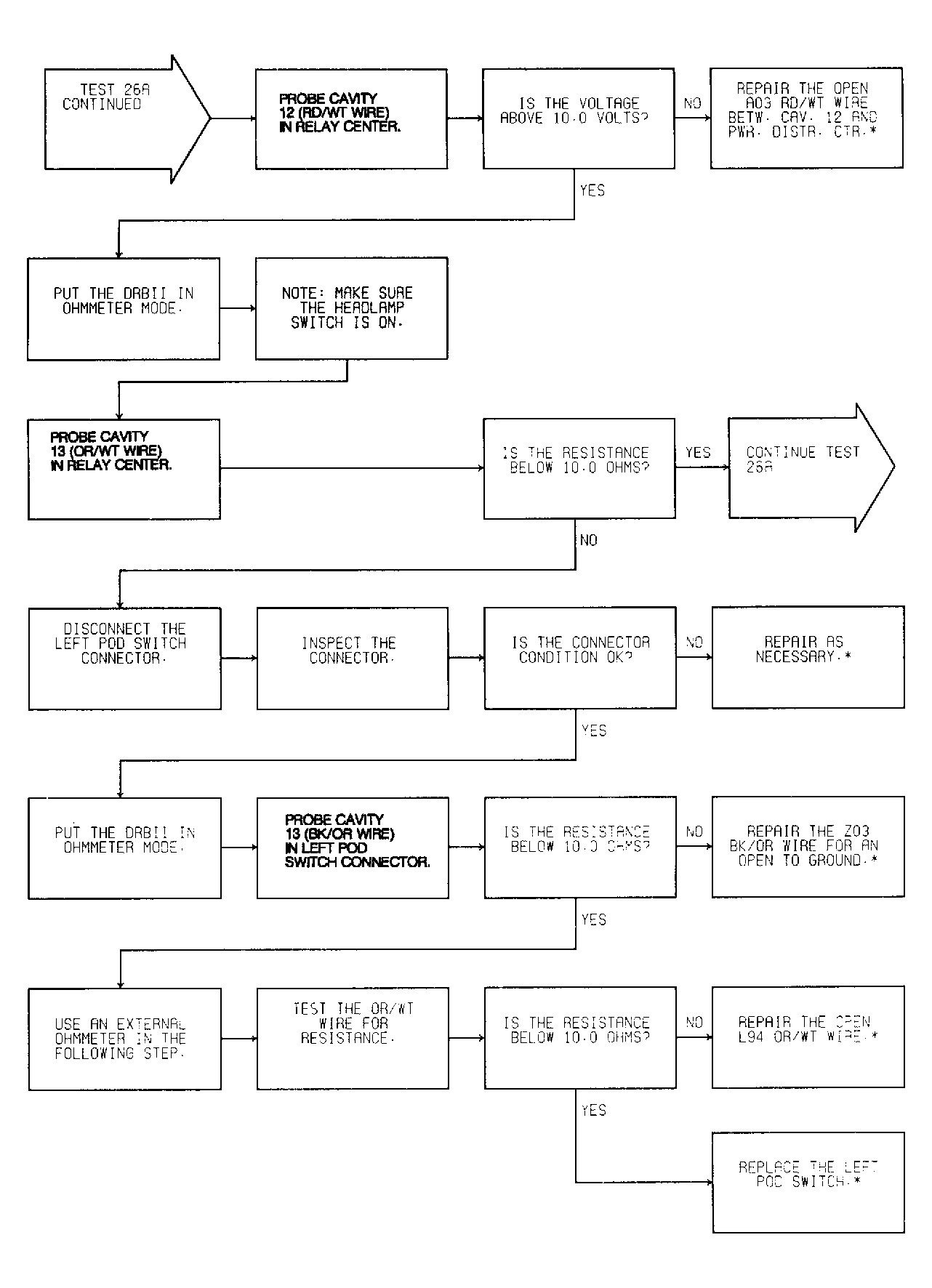

Fig 2: Test 26A: Both Headlights Out (1 of 3)

G91F11473

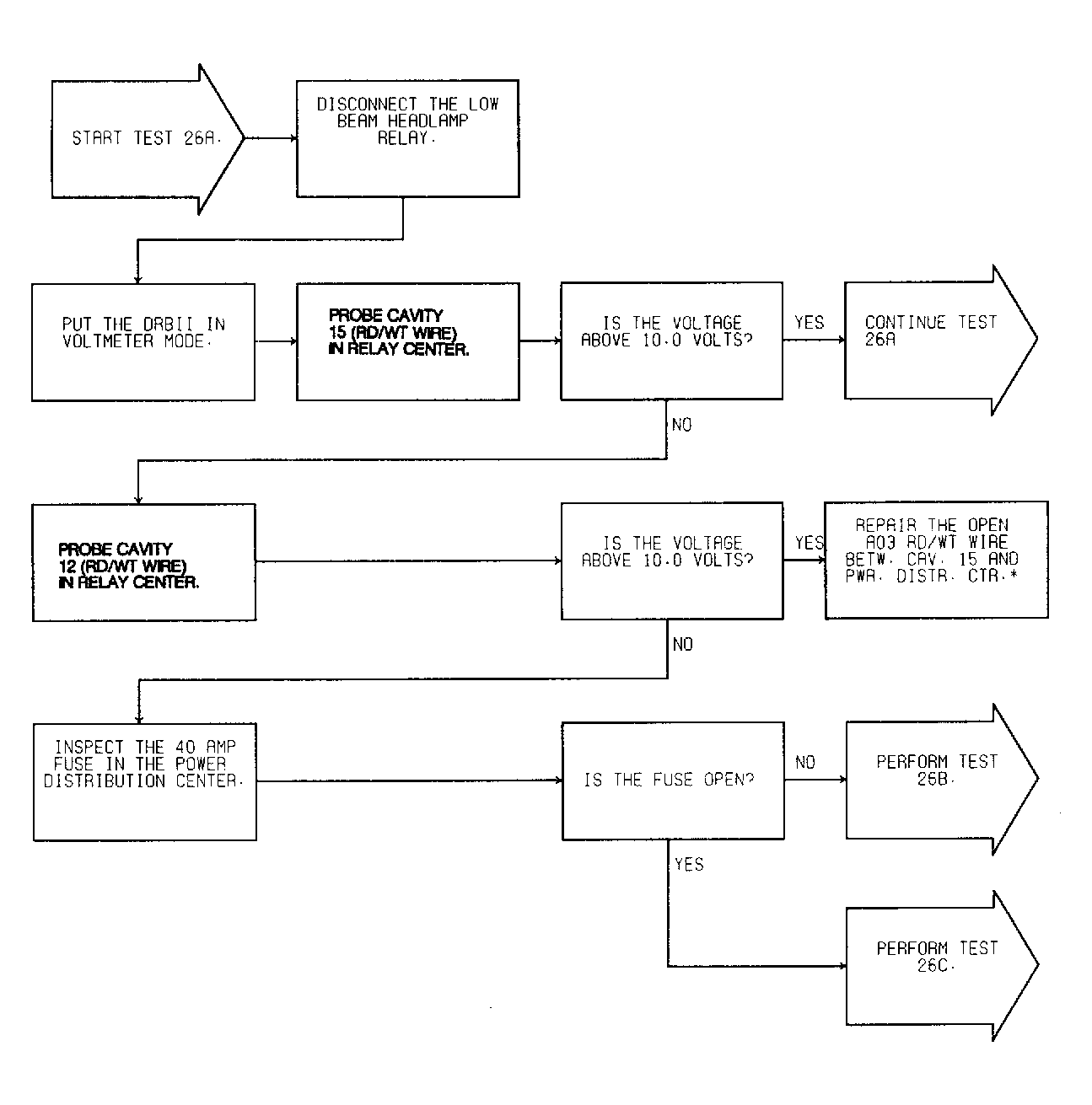

Fig 3: Test 26A: Both Headlights Out (2 of 3)

G91G11474

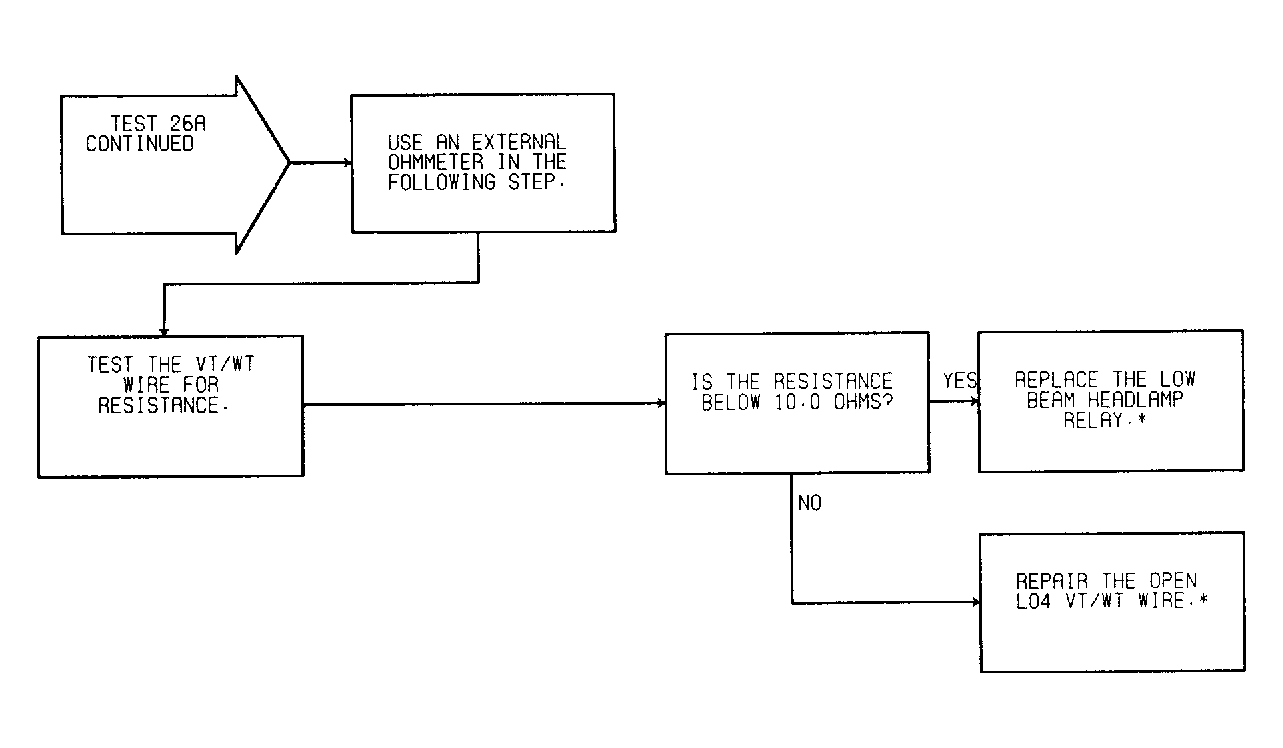

Fig 4: Test 26A: Both Headlights Out (3 of 3)

G91H11475
