LeBaron Base, 2D Convertible, 2.5 J, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System - BENDIX-6
>>
Connector Identification
>>
Abs System Relay Connector
Abs System Relay Connector

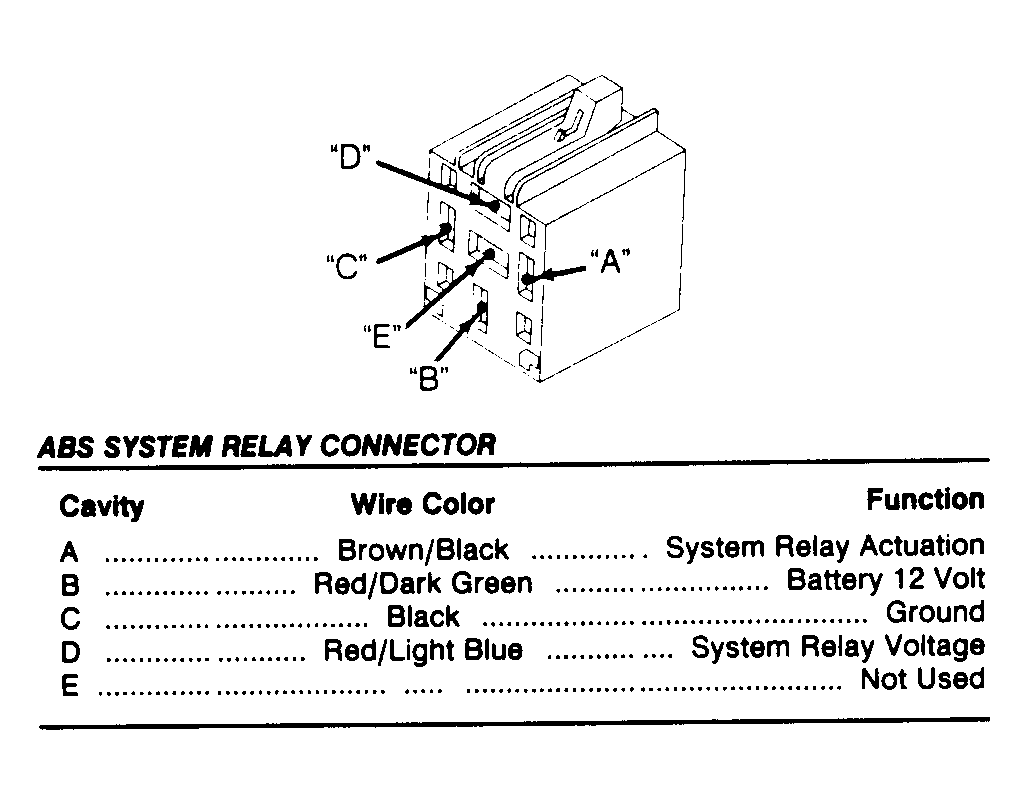

Fig 1: ABS System Relay Connector
ABS SYSTEM RELAY CONNECTOR TERMINAL ID
Cavity
Wire Color
Function
A
Brown/Black
System Relay Actuation
B
Red/Dark Green
Battery 12 Volt
C
Black
Ground
D
Red/Light Blue
System Relay Voltage
E
Not Used
Not Used
