VER-2: Verification Procedure 2

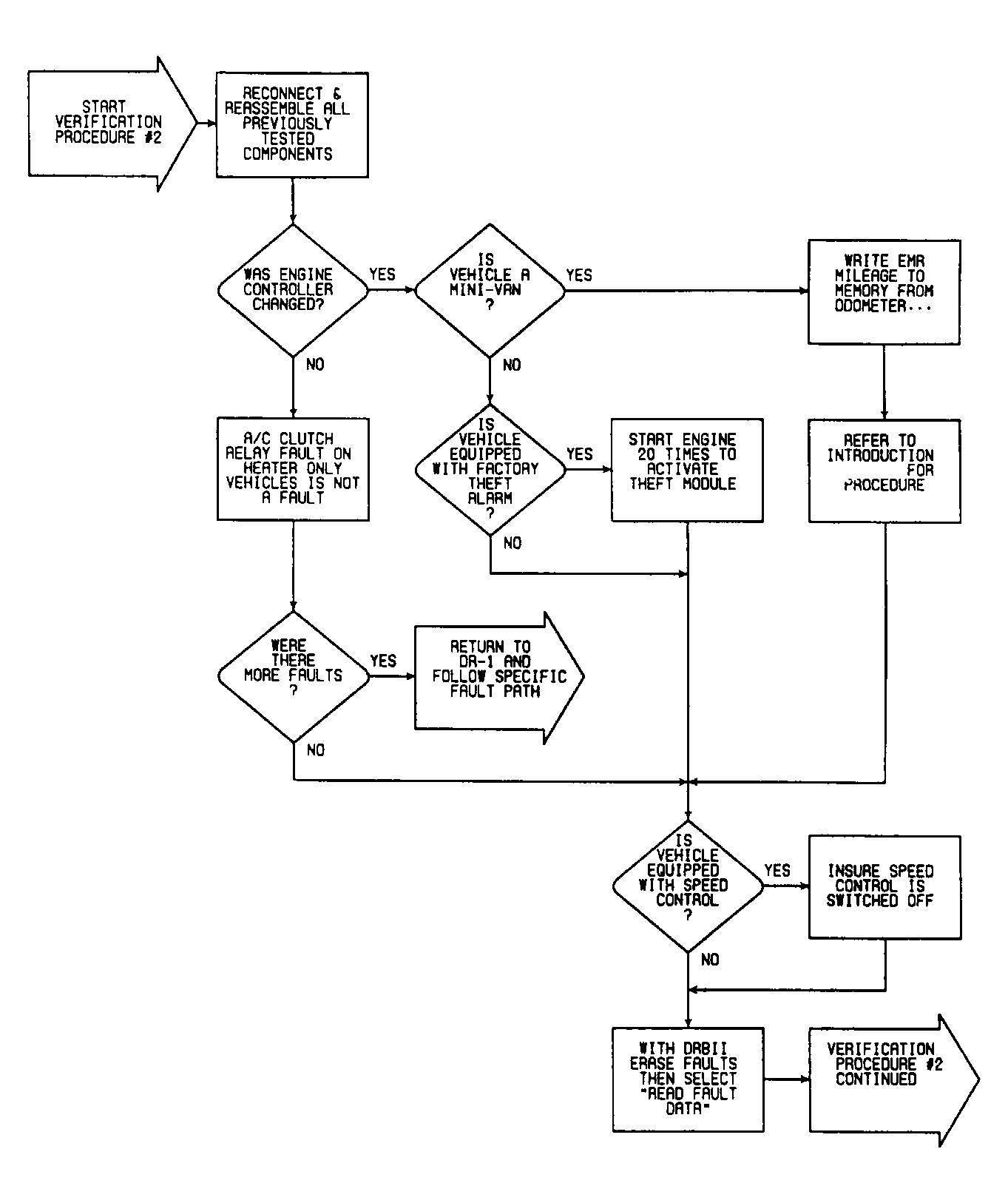

Fig 1: VER-2: Flow Chart Verification Procedure 2 (1 of 2)

G90I06874

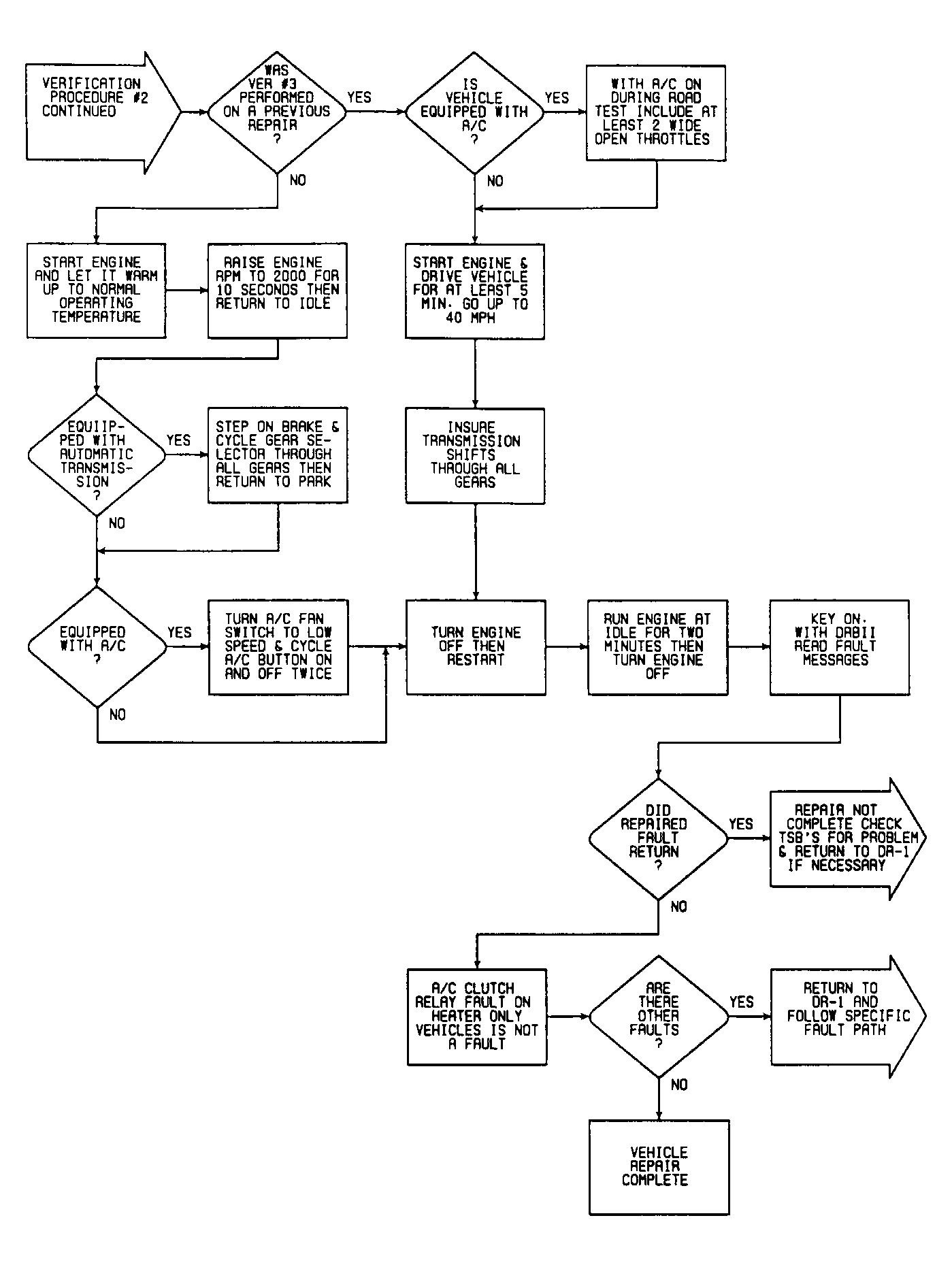

Fig 2: VER-2: Flow Chart Verification Procedure 2 (2 of 2)

G90B06875
