Elect Cluster Test 43: Check Eng Light Not Operating Properly
Elect Cluster Test 43: Check Eng Light Not Operating Properly

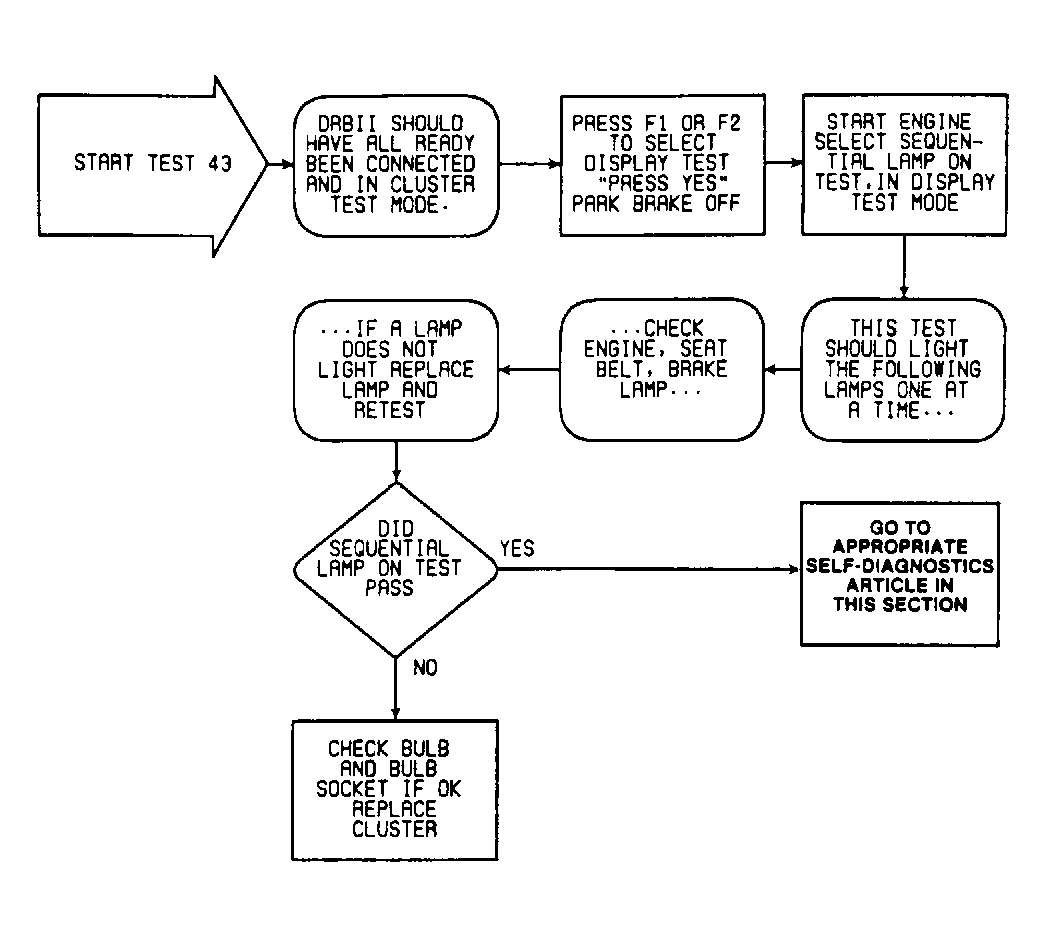

Fig 1: Test 43 Flow Chart
