Axle Shaft Positioning
WARNING: This page is about a different car, the 1993 Plymouth Voyager, 1993 Plymouth Grand Voyager, 1993 Dodge Grand Caravan, 1993 Dodge Caravan, and 1993 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Check axle shaft positioning if engine/transaxle is loosened or moved or if front structural damage has occurred. Incorrect axle shaft positioning may result in premature failure of components.
- Engine mount bolt holes are slotted for side-to-side positioning of engine. With vehicle completely assembled, ensure front wheels are in straight-ahead position. Vehicle should be on platform hoist or alignment rack.

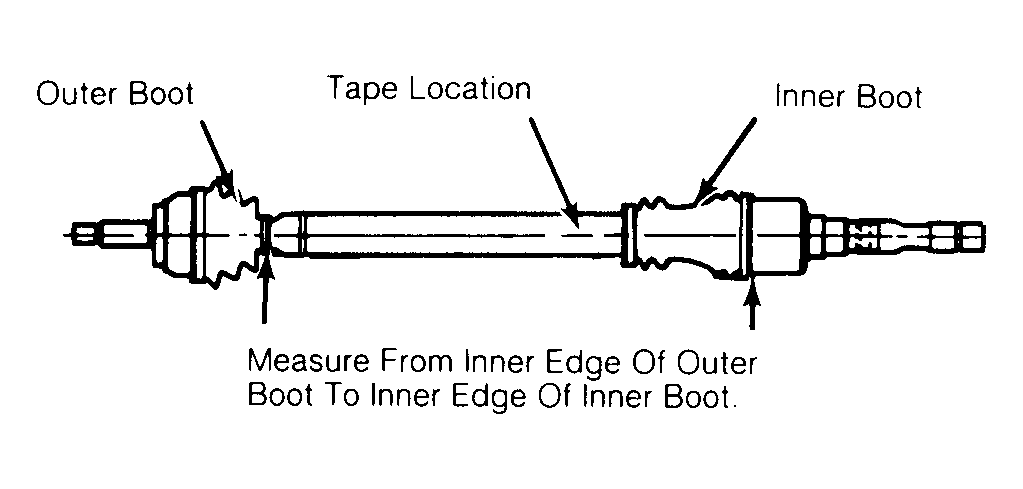

- Using a tape measure, measure distance from inner edge of outer boot to inner edge of inner boot on both axle shafts. Refer to Fig 1. This measurement must be taken at bottom of axle shaft only.
- If both axle shafts are within specifications, no further service is necessary. If either left or right axle shaft is not within specification, support engine/transaxle assembly using a floor jack. See AXLE SHAFT POSITIONING SPECIFICATIONS table.

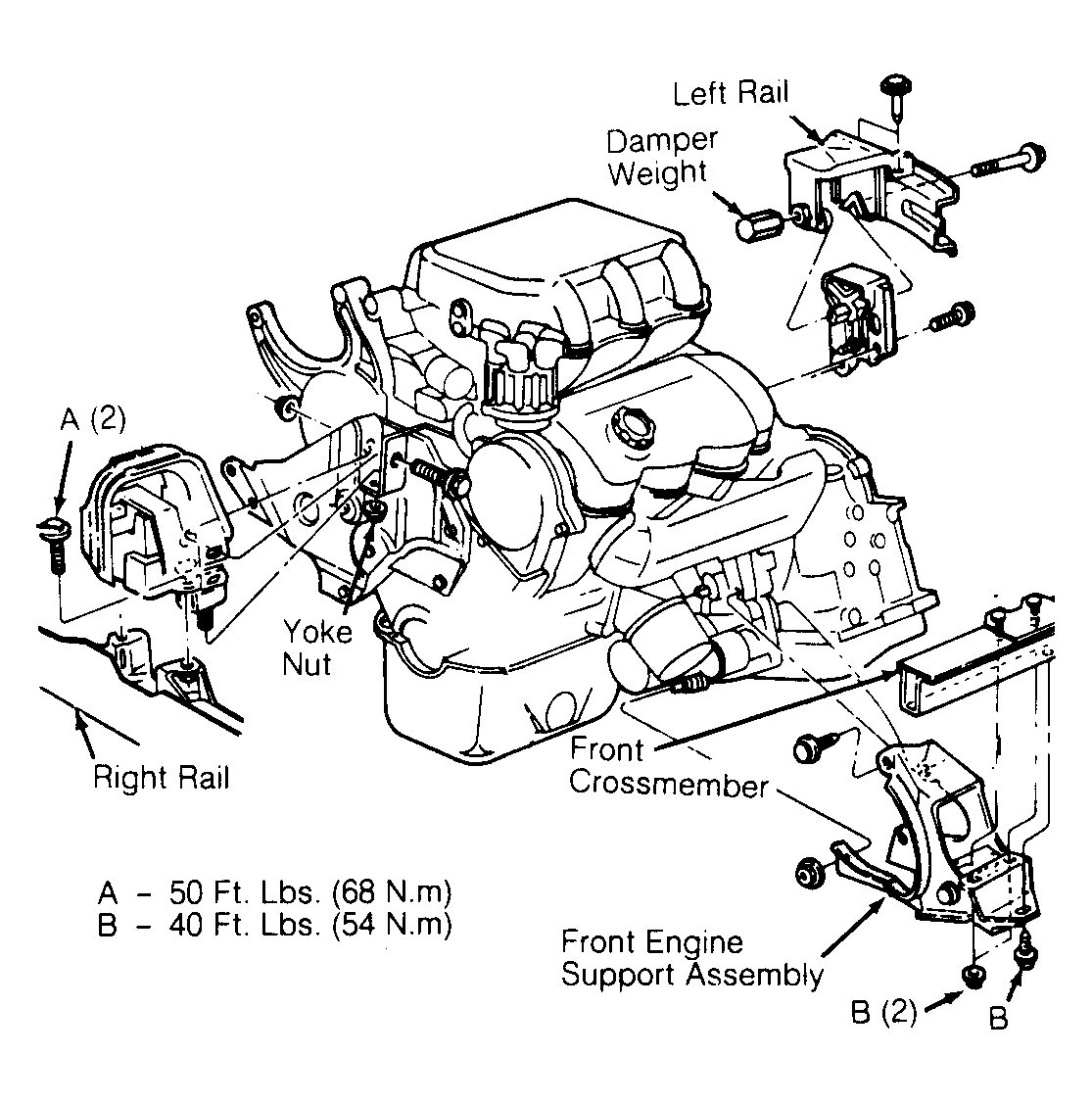

- Loosen right engine mount fasteners, front engine mount bracket and front crossmember fasteners. See Fig 2. Pry engine right or left as required to obtain correct axle shaft length. Refer to the AXLE SHAFT POSITIONING SPECIFICATIONS table.
- Tighten mounting bolts/nuts to specifications. Recheck axle shaft length. Install damper weight (if equipped), and tighten to specification. See TORQUE SPECIFICATIONS TABLE at the end of this article.
AXLE SHAFT POSITIONING SPECIFICATIONS
| Application | Right Side Length In. (mm) | Left Side Length In. (mm) | |
|---|---|---|---|
| 2WD Automatic | |||
| 2.5L | 18.7-19.1 (476-486) | 7.3-7.7 (185-195) | |
| 3.0L &3.3L | 18.7-19.1 (476-486) | 7.2-7.5 (184-194) | |
| 2WD Manual | |||
| 2.5L | 18.7-19.1 (476-486) | 8.2-8.6 (209-220) | |
| 4WD Automatic | |||
| 3.3L | 11.5-11.9 (292-302) | 7.2-7.6 (184-194) | |
