Test 9: Coolant Level Low

Fig 1: Test 9: Circuit Diagram

G90G16499

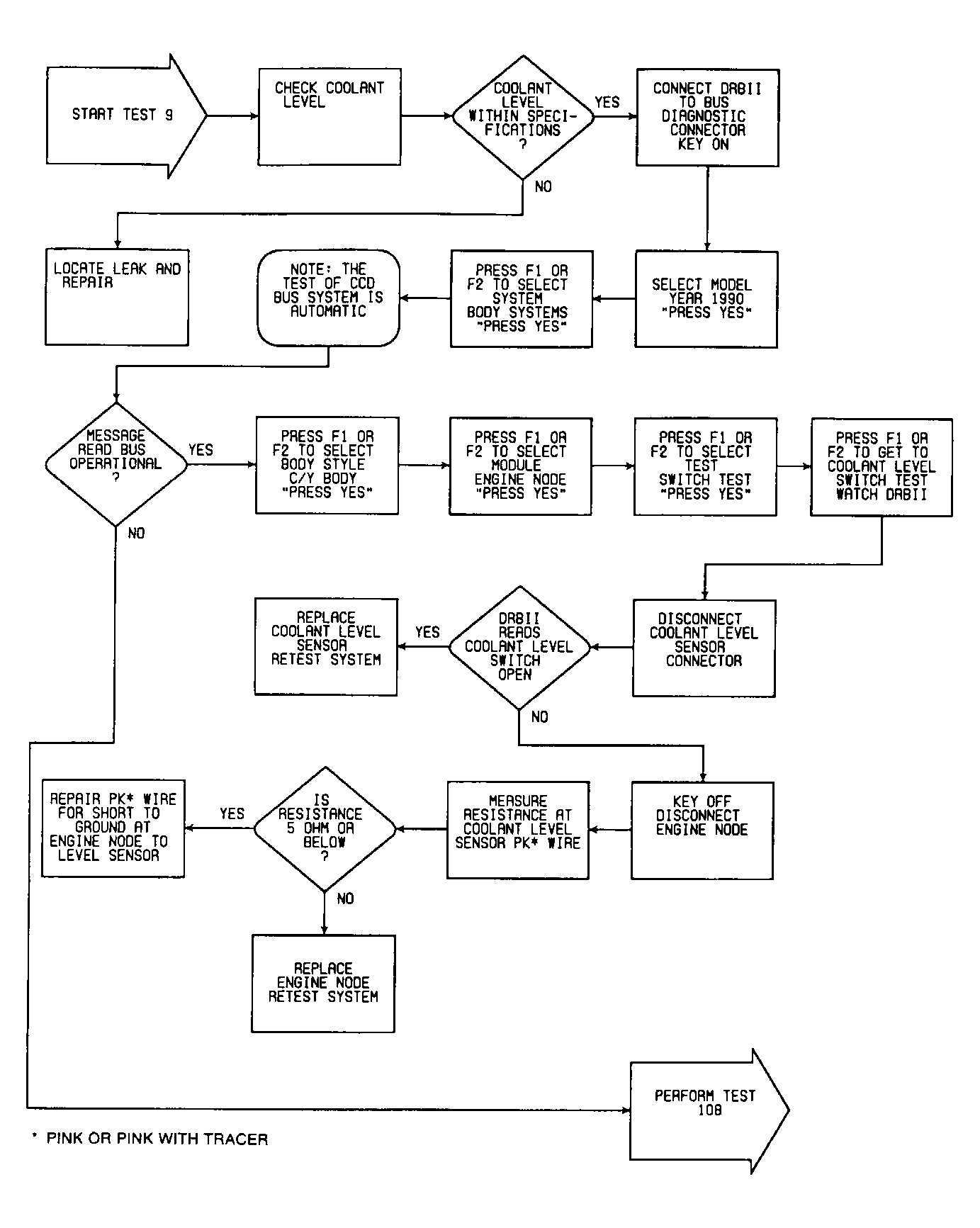

Fig 2: Test 9: Flow Chart

G90B12246
