Test 80: Theft Alarm Module Short To GND. SW. Test For Incandescent Message Center

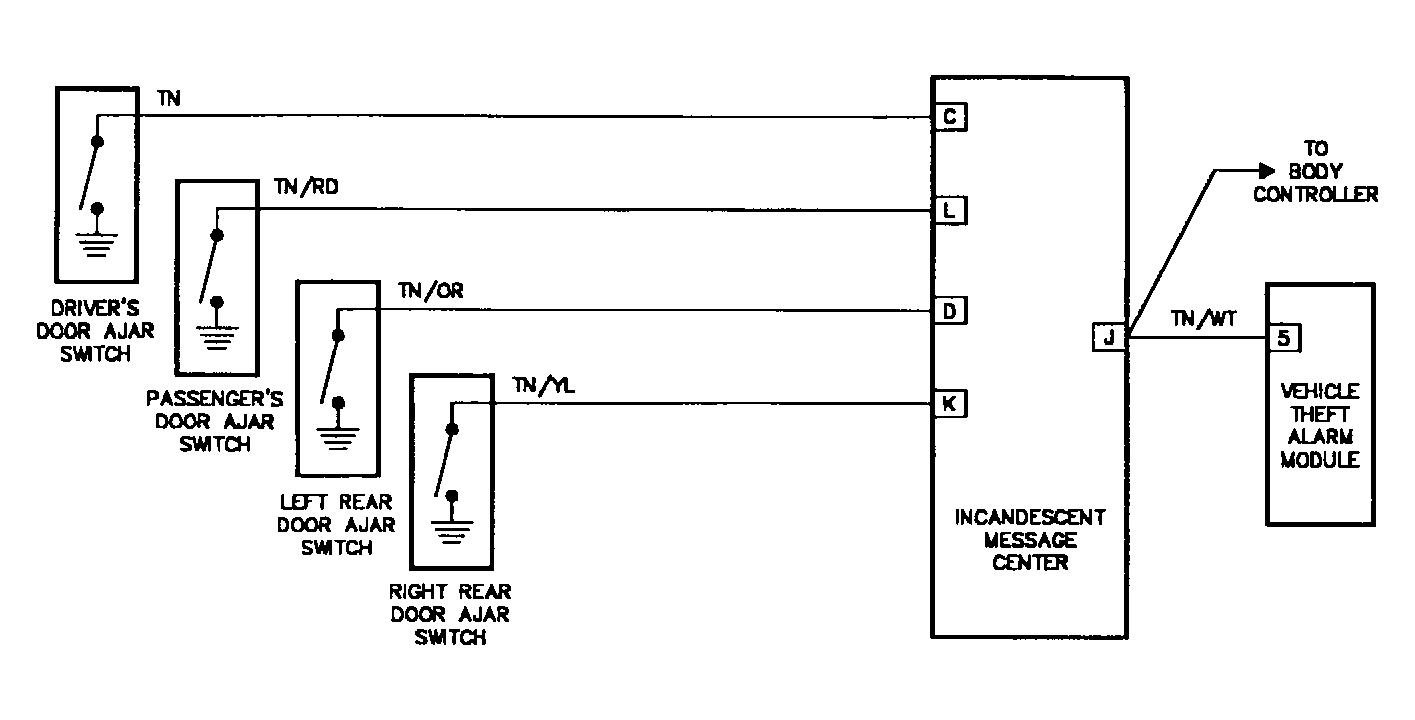

Fig 1: Test 80: Circuit Diagram

G90G17240

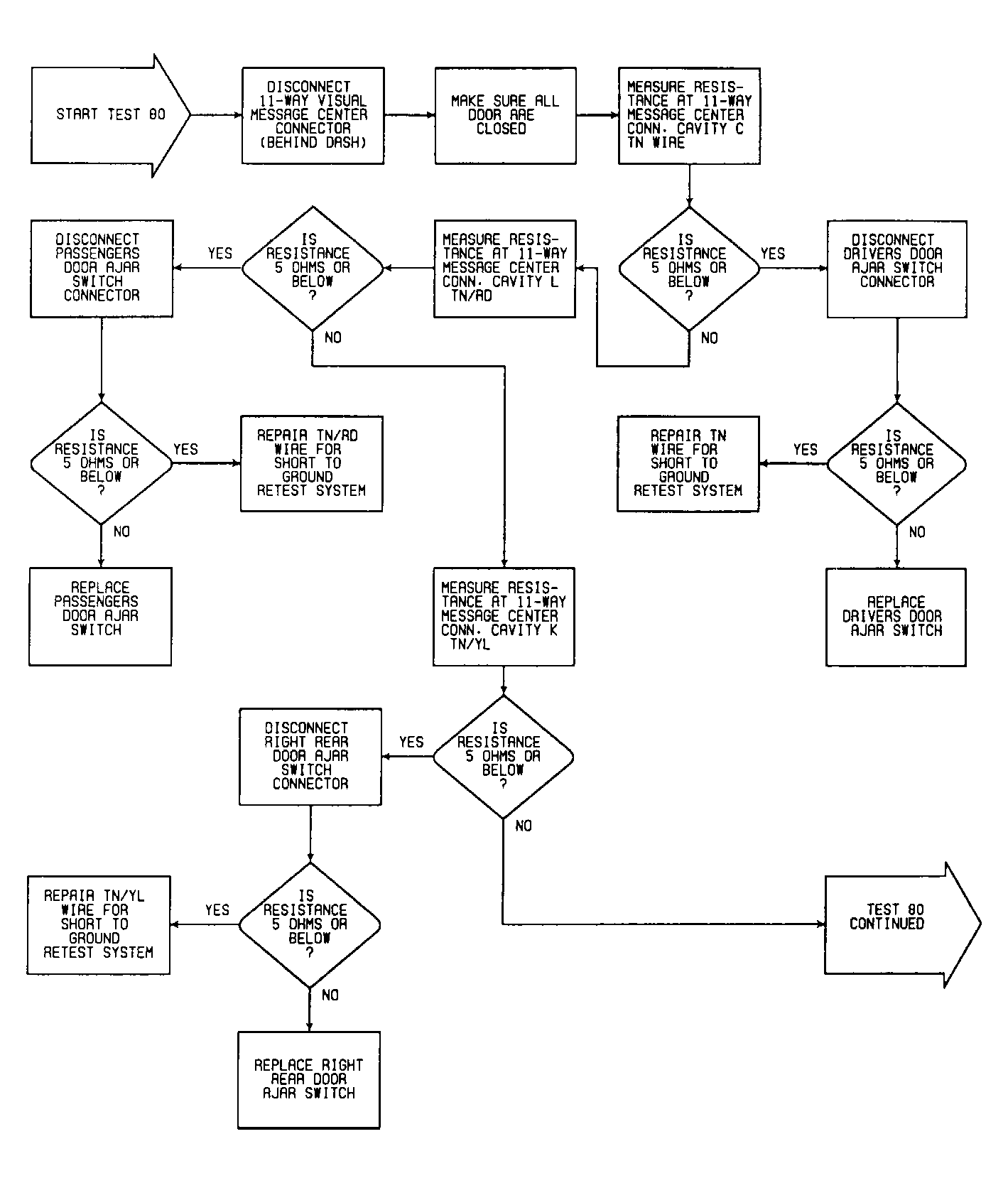

Fig 2: Test 80: Flow Chart (1 of 2)

G90C12346

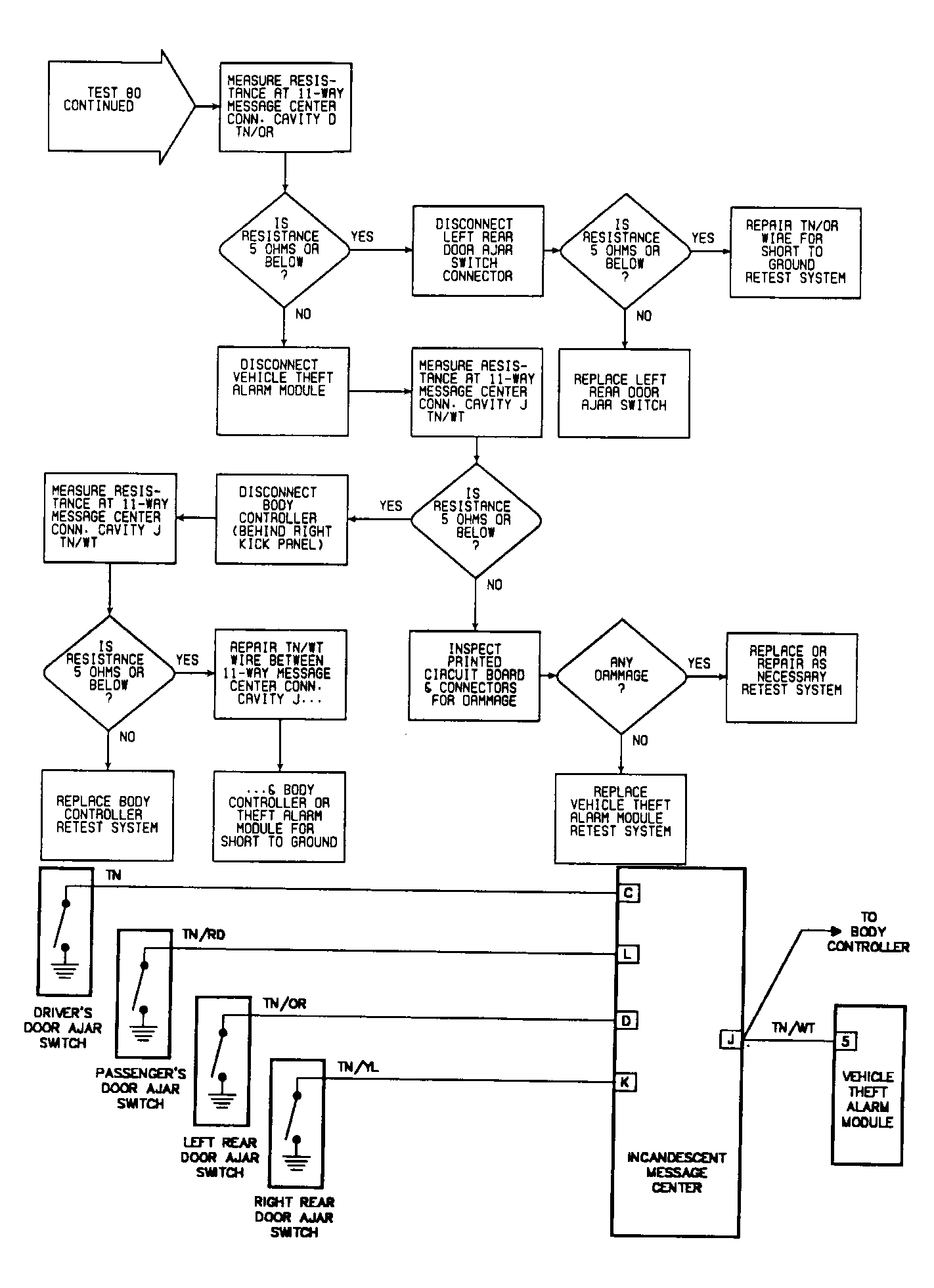

Fig 3: Test 80: Flow Chart (2 of 2)

G90D12347
