Chrysler
>>
1990
>>
Imperial
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/O Codes - BCC
>>
Test 68: Vehicle Theft Alarm Module Power Door Unlock
Test 68: Vehicle Theft Alarm Module Power Door Unlock

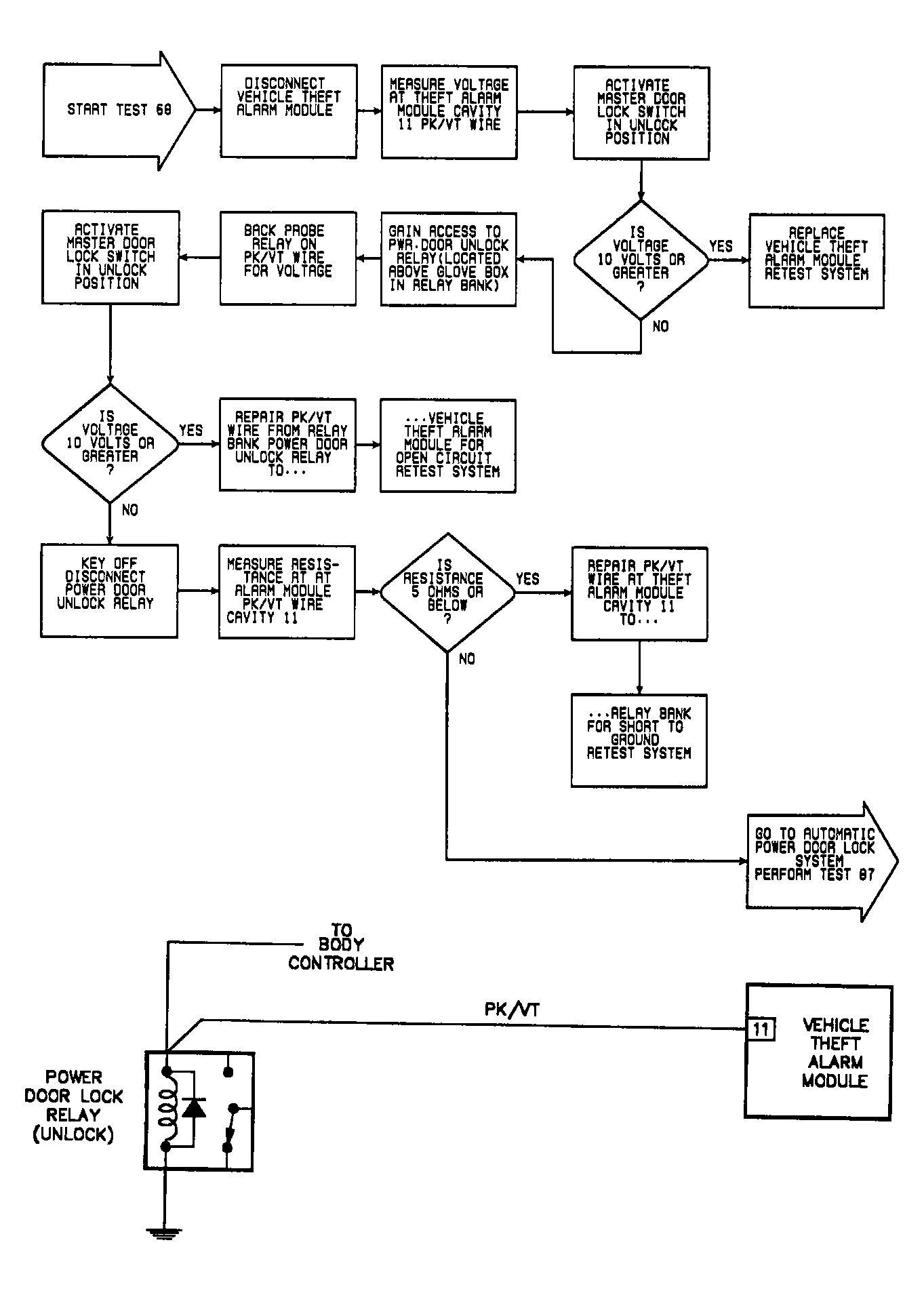

Fig 1: Test 68: Circuit Diagram & Flow Chart
